GENERAL BILL OF MATERIALS
ITEM DESCRIPTION / PART NUMBER ITEM DESCRIPTION / PART NUMBER ITEM DESCRIPTION / PART NUMBER
1
12" Spiral Barrel
7
LH Comm. Bracket
13
Comm. Slide lock
2
1
5
16
" O.D. Axle 8
Comm. Headstop
14
Tensioner
3
Spring/Counterbalance Assembly
9
26 Ga. Corrugated Curtain
15
Stamped Axle Support
4
LH, 16Ga, Comm. Guide
10
Astragal
16
Small Mounting Plate
5
RH, 16Ga, Comm. Guide
11
Bottom Bar Assembly
17
---
6
RH Comm. Bracket 12
Comm. Step Plate
18
---

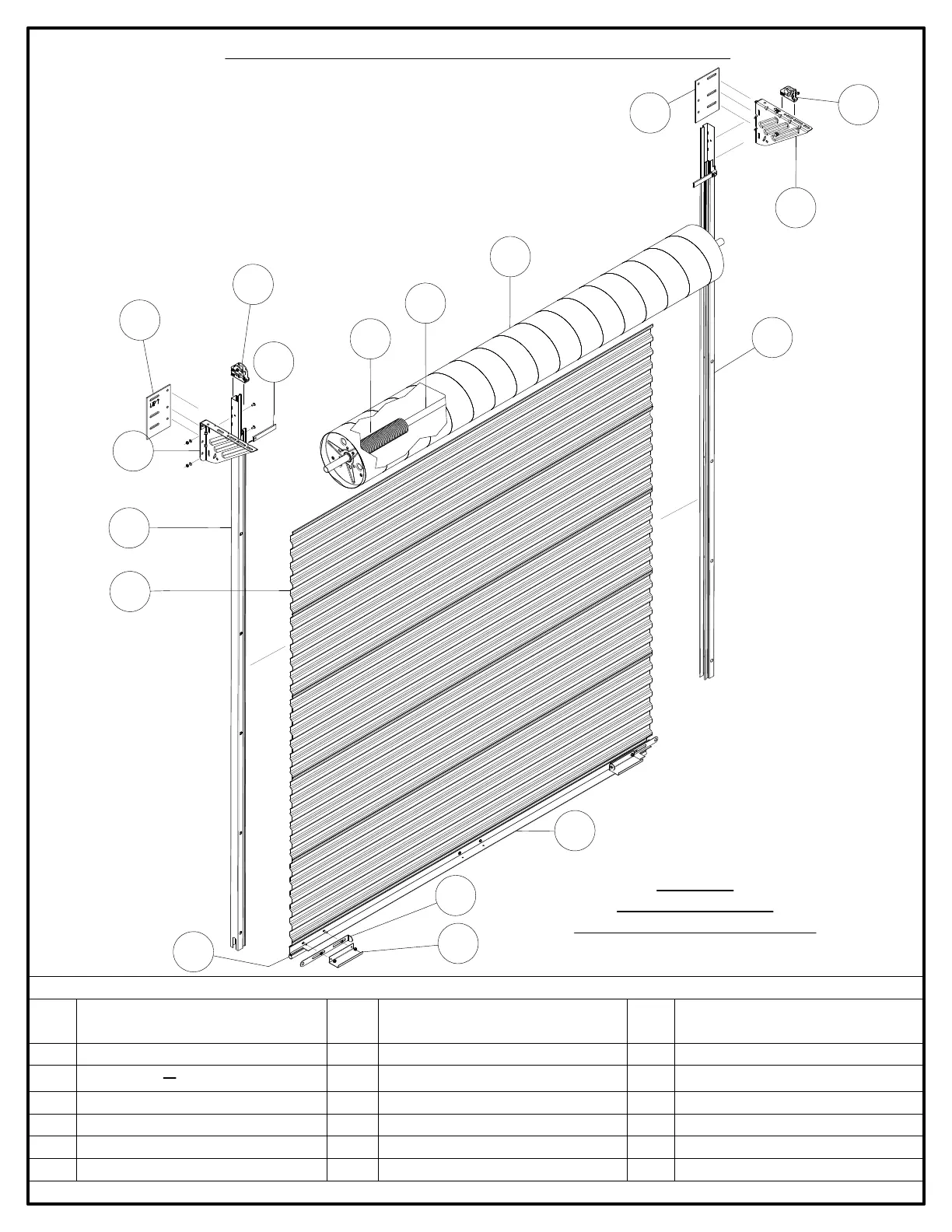

FIGURE 1:
DOOR ASSEMBLY &
GENERAL PART DESCRIPTIONS
1
2
3
16
9
8
7
5
10
13
12
11
15
16
6
14
4
DOOR ASSEMBLY & GENERAL PART DESCRIPTIONS
