5.6. Wired handheld remote controller / foot pedal controller
connection (optional)

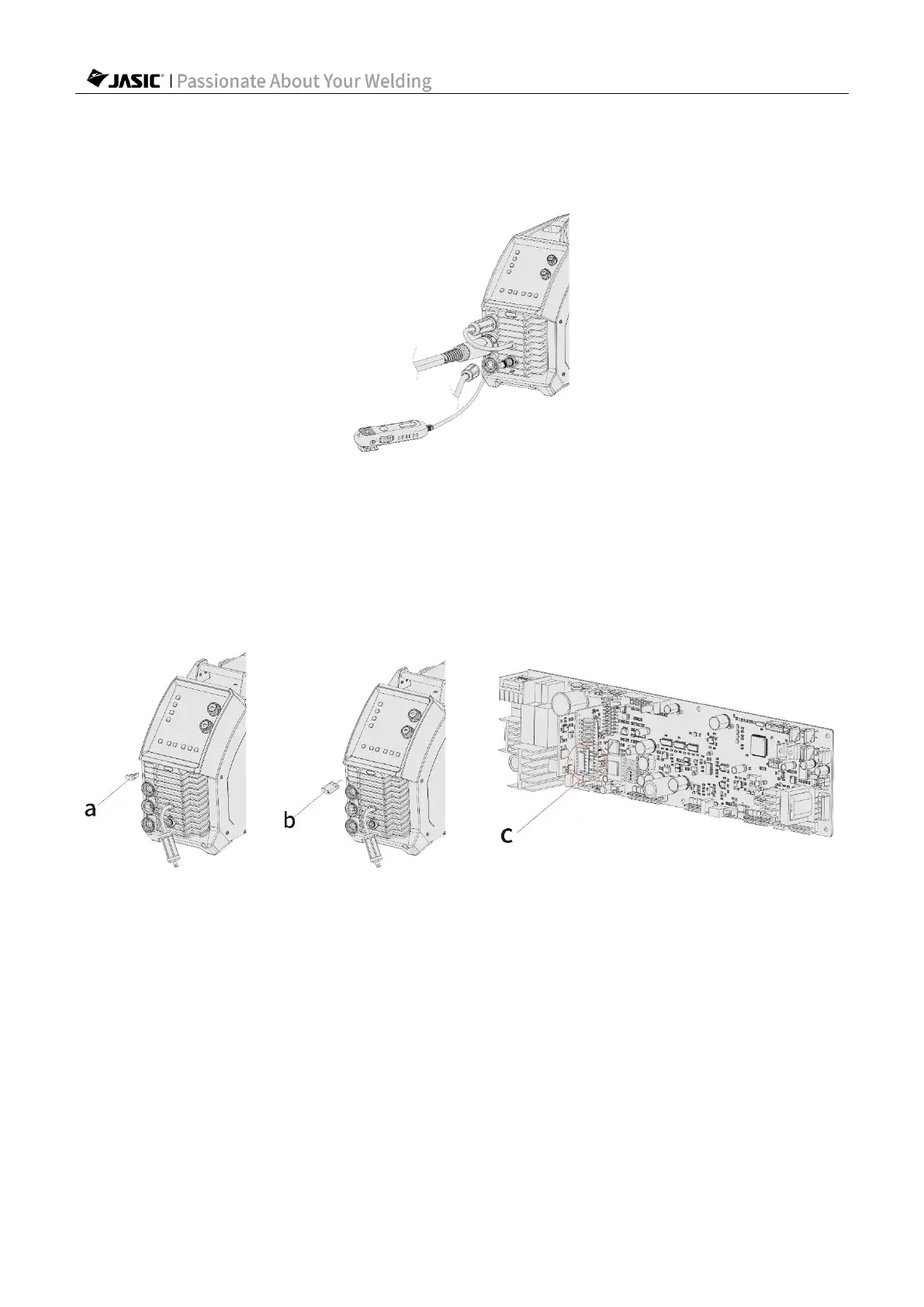

(Wiring diagram of wired remote controller)
Insert the 9-pin aviation plug of the handheld remote controller/foot pedal controller directly
into the corresponding 9-pin aviation socket of the machine.
Note! Please check with the seller whether the hardware and software versions of the
machine support wired handheld remote controller before installation.
5.7. Installation of wireless receiver module (optional)
(Installation of wireless receiver module)
1) Remove the wireless remote controller plug cover shown in above left figure (a). Refit into
the wireless receiver module shown in above right figure (b).
2) Remove the screws on the left side cover of the machine and remove the side panel.
3) Connect the cable of the wireless module to the 7P terminal block CN3 of the control board
PCB2 (see c).
Note! Check with the seller whether the hardware and software versions of the
machine support wireless remote controller before purchasing.
