Page 42

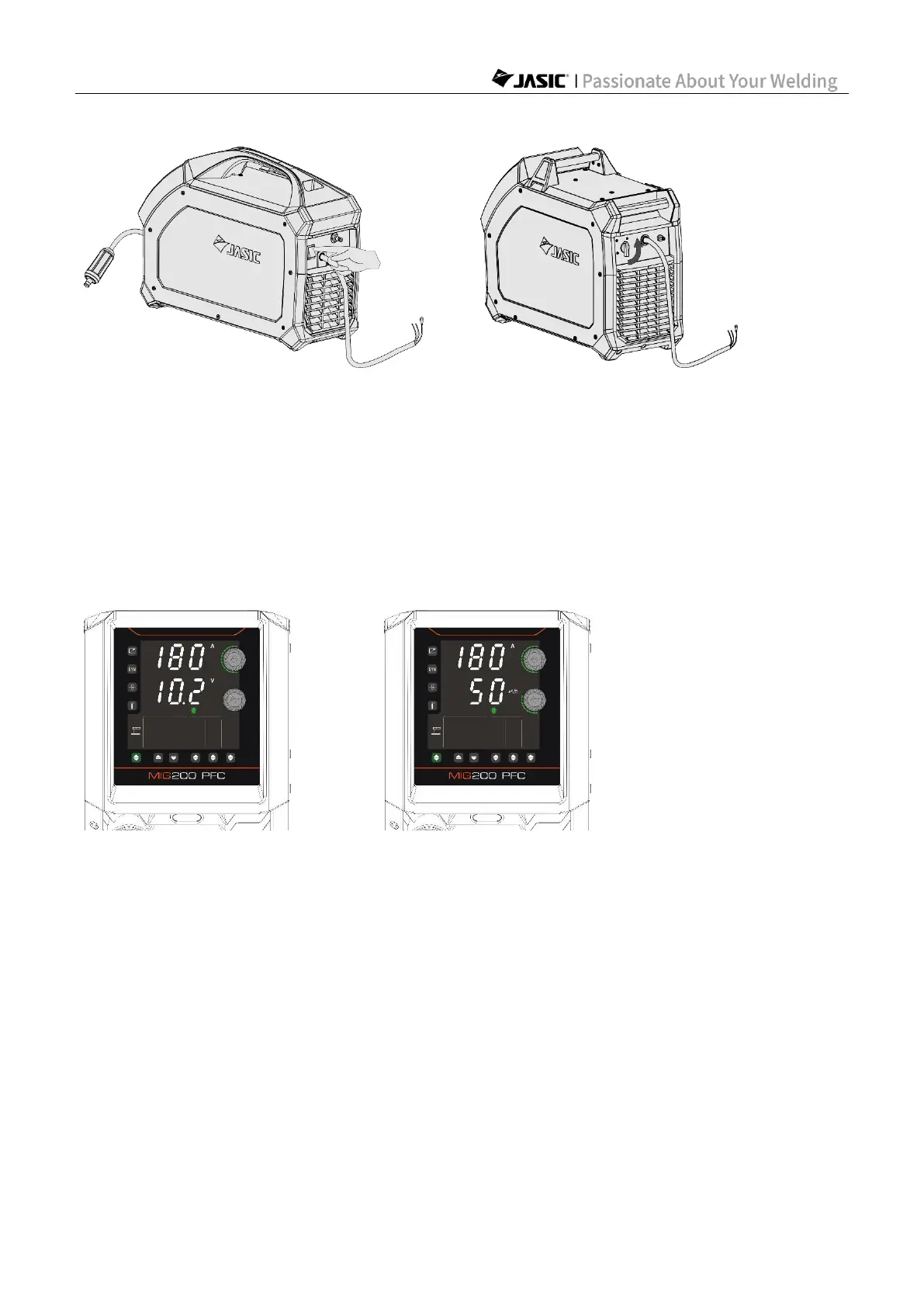

7.1.7 Turn off the power supply after welding
The power switch is located on the rear panel of the machine and set it to the "OFF" position.
After a time delay, the panel indicator is off and the welder stops working.
7.2. MMA operation
7.2.1 Turn on the power switch
(Same as 7.1.1)
7.2.2 Select welding mode
(Setting MMA welding current) (Setting arc force)
Press the "Welding Mode Selection" key to select MMA mode.
7.2.3 Set MMA parameters
1) Use "Parameter Adjustment Knob A" to set the "Welding Current".
2) Use "Parameter Adjustment Knob B" to set the "Arc Force".
Welding current: set by the user based on the type and diameter of the welding electrode and
the process requirements. Refer to the following table:
