Page 56

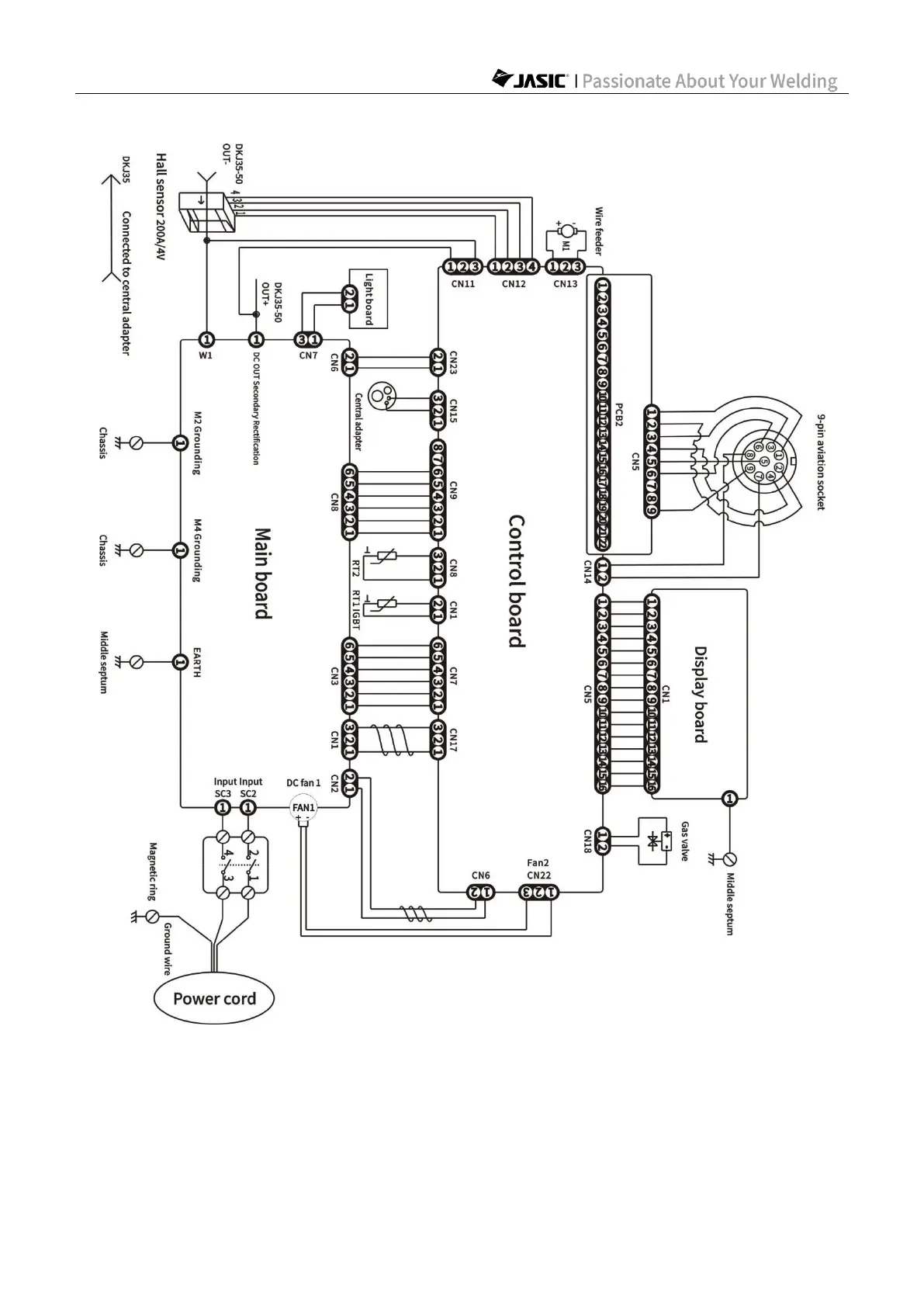

Wiring diagram 2 - MIG160PFC/MIG200PFC
Note! Some models do not support PCB2 and 9-pin aviation socket. Please confirm with the
seller whether the machine supports this function before purchasing.
