Configuration Examples
UHF Base & Rover Configuration
Base Station Configuration
96 www.javad.com

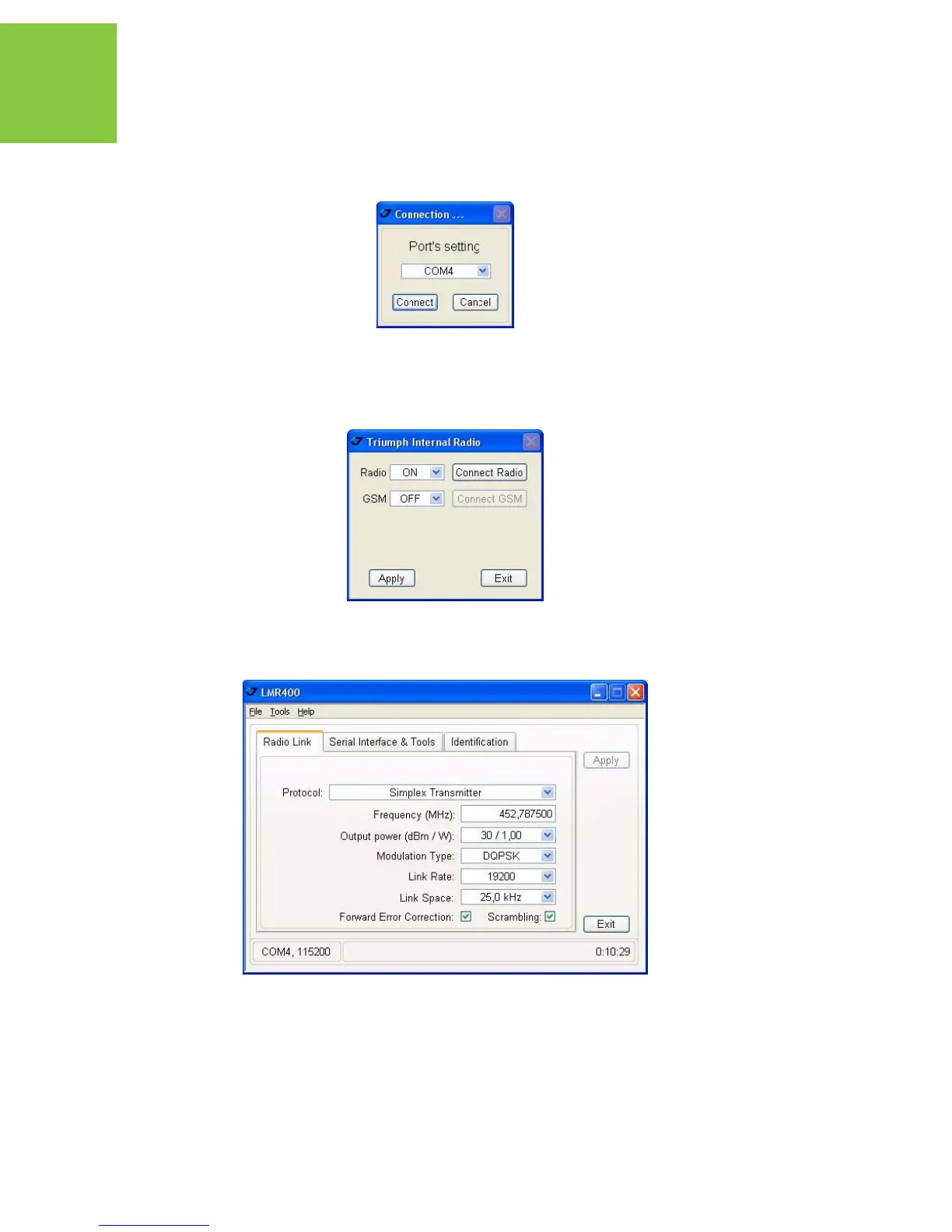

3. Select the port receiver is connected to and click Connect (Figure 6-43).
Figure 6-2. ModemVU. Connection
4. Select the ON mode for Radio, click Apply, and then click Connect Radio button
(Figure 6-44).
Figure 6-3. ModemVU TRIUMPH Internal Radio selection
5. In the Radio Link tab set the following parameters, and click Apply (Figure 6-4):
Figure 6-4. Radio Link tab settings
• Protocol: Simplex Transmitter
• Frequency (MHz): 406 to 470
• Output power (dBm/W): 30/1.00
To Next Page
