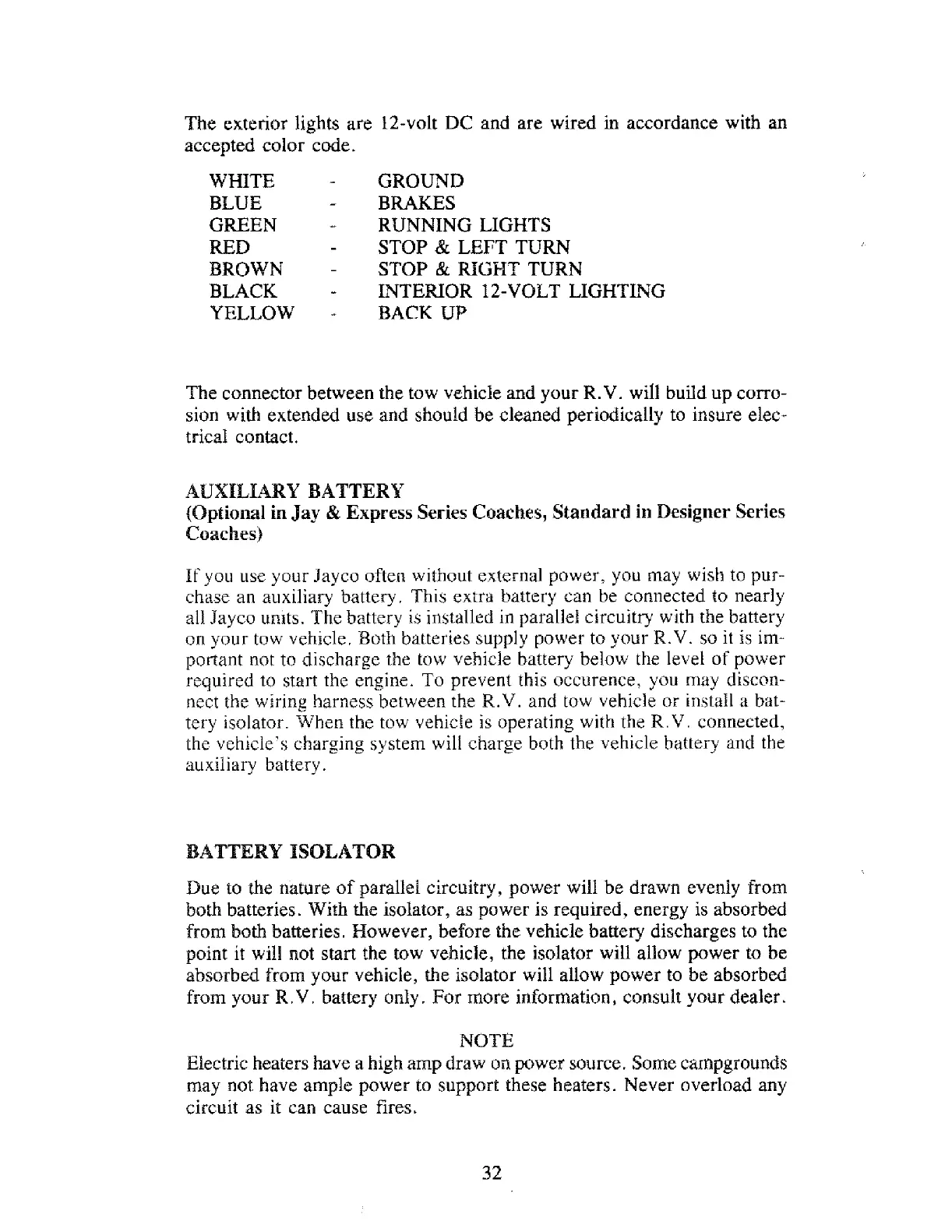

The exterior lights are 12-volt
DC
and are wired
in
accordance
with
an
accepted color code,
WHITE
-
GROUND
BLUE
-
BRAKES
GREEN
-
RUNNING
LIGHTS
RED
-
STOP
&I
LEFT
TURN
BROWN
-
STOP
$r
FUGWT
TURN
BLACK
-
INTERIOR
12-VOLT
LIGHTING
YELLOW
-
BACK
UP
The connector between the
tow
vehicle and your
R.V.
will build up corro-
sion
with
extended use and should be cleaned periodically to insure elec-
trical contact.
AUXILIARY
BATTERY
{Optional in
Jay
ty
Express
Series
Coaches,
Standard
in
Designer Series
Coaches)
If
you
use
your Jayco often without external power,
you
may wish to pur-
chase an auxiliary battery. This extra battery can be connected to nearly
all Jayco
unlts.
The
battery
is
installed
in
parallel circuitry
with
the battery
on your tow vehicle.
Both
batteries supply power
to
your
R.V.
so
it
is
irn-
portant not
to
discharge the tow
vehicle
battery below the
level
of power
required
to
start
the
engine. To prevent
this
occurence,
you
may discon-
nect the wiring harness between
the
R.V.
and tow vehicle or install
a
bat-
tery isolator. When the tow vehicle
is
operating
with
the
R.V.
connected,
the vehicle's charging system will charge both the vehicle battery and the
auxiliary battery.
ATTERY
ISOLATOR
Due
to
the
nature of parallel circuitry, power will be drawn
evenly
from
boh batteries.
With
the isolator, as power is required, energy is absorbed
from
both
batteries, However, before
the
vehicle battery discharges to the
point
it
will
not
start
the
tow
vehicle, the isolator
will
allow power to be
absorbed from your vehicle, the isolator will aliow power
to
be absorbed
from
your
R
.V.
battery
only.
For mote information, consult your dealer.
NOTE
Electric heaters
have
a
high
amp
draw
on
power source. Some campgrounds
may
not have ample power
to
support these heaters. Never overload any
circuit as
it
can cause fires.
