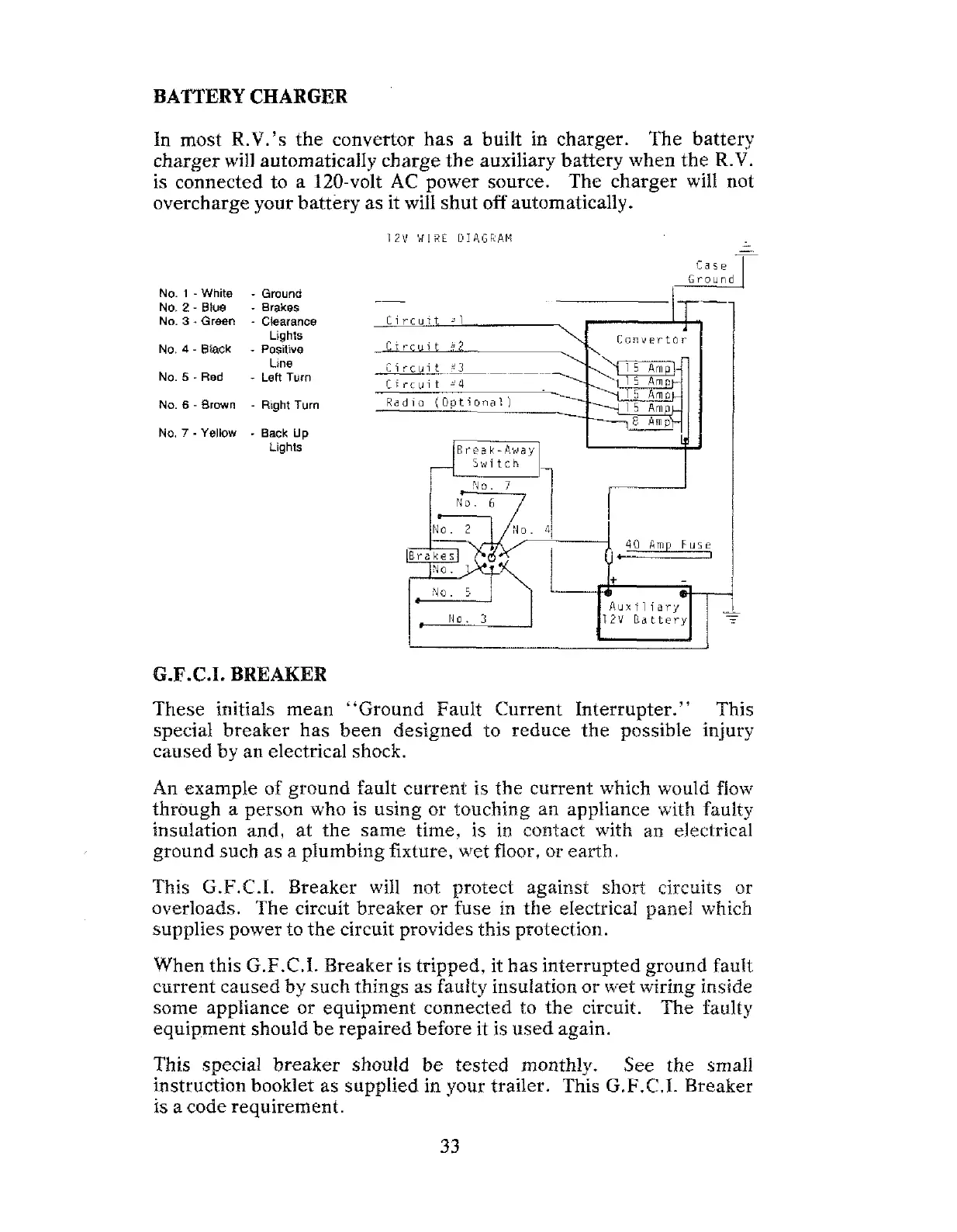

BATTERY CHARGER
In most R.V.'s the convertor has a built in charger. The battery
charger
will automatjcalIy charge the auxiliary battery when the R.V.
is connected to a 120-volt AC power source. The charger will not
overcharge your battery
as it will shut off automatically.
No. 3 - Green - Ciearance
Lights
NO. 4 - BIack - Positive
Line
No. 5 - Red - Left Turn
No. 6 - Brown - R~ght Turn
No. 7 - Yellow - Back Up
Lights
G.F.C.I. BREAKER
Circuit ~ 23 ~-
40 (imp Fuse
12V Batter
These initials mean "Ground Fault Current Interrupter." This
special breaker has been designed to reduce the pessible injury
caused by an electrical shock.
An example of ground fault current is the current which would flow
through a person who is using
or touching an appliance with faulty
insulation
and,
at the same time, is in contact with an electrical
ground such as a plumbing fixture, wet floor, or earth.
This G.F.C.I. Breaker will not protect against shorl circuits or
overloads. The circuit breaker or fuse in the electrical panel which
supplies power to the circuit provides this protection.
When this
G.F.C.1. Breaker is tripped, it has interrupted ground fault
current caused
by such things as faulty itlsulation or wet wiring inside
some appliance or equipment connected to the circuit. The faulty
equipment should be repaired before
it is used again.
This special breaker should be tested month1y.
See the small
instruction booklet as supplied in your trailer. This G.F.C.I. Breaker
is a code requirement.
