JAYCO TOWABLE SECTION 10 - APPLIANCES
10-5 WHTT

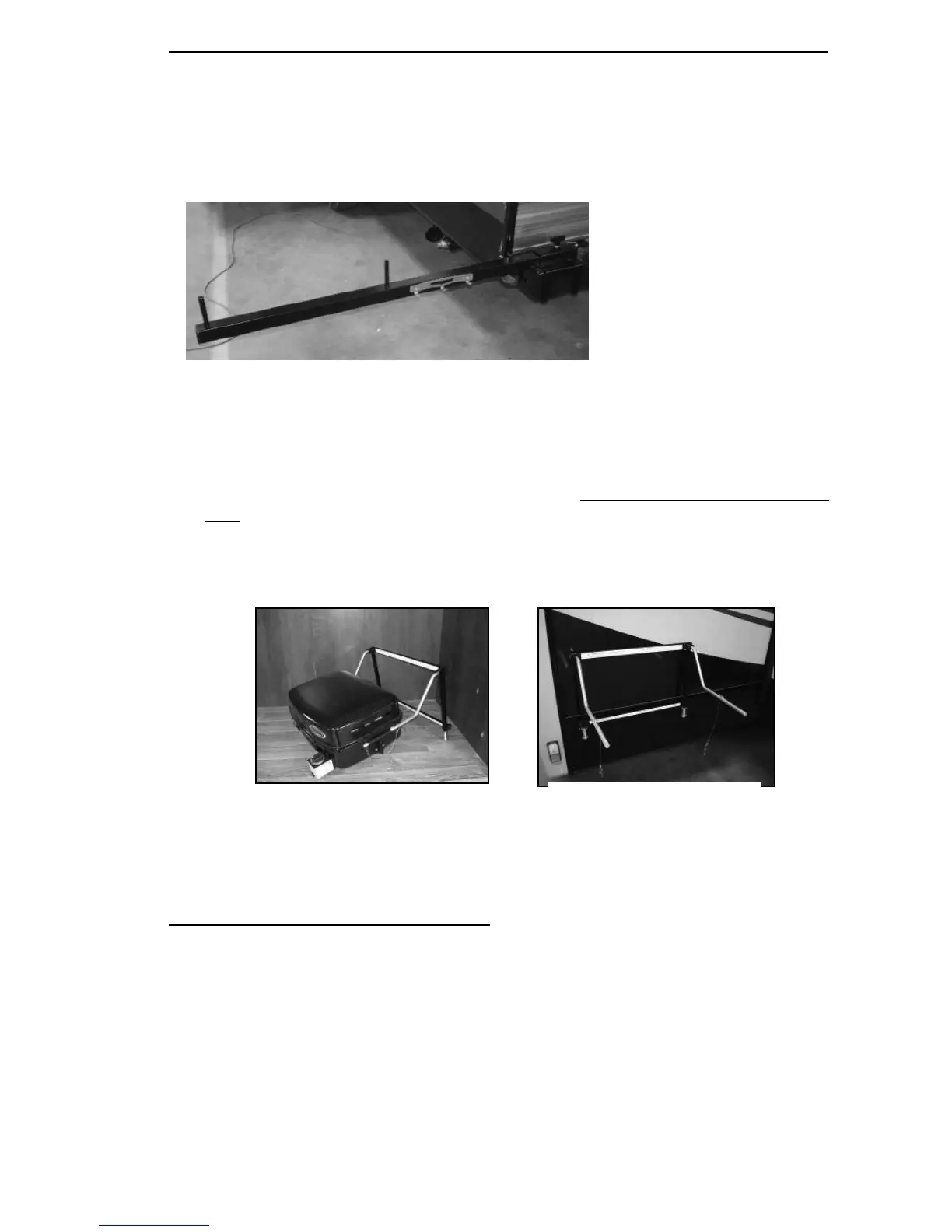

Insert the pin through the hole in the bracket and mounting bar. The pin must be
installed to insure the mounting bar is secure during use.
Tighten the T-handle on the bracket mounted to the bumper.
Set the BBQ grill on the mounting bar by inserting the (2) pegs on the bar into the
grill side mounting brackets. Make sure the mounting bar and the grill are securely in
place before proceeding with the propane connection.
Rail mount (if so equipped)
Hang the grill bracket on the aluminum mounting strip located on the side of the
recreation vehicle.
Open the (2) folding arms on the bracket making sure they lock in position.
Slide the grill onto the (2) arms against the stops. Make sure the grill is fully on the
arms.
Insert the retaining pins into the arms.
To remove the grill, remove the retaining pins and simply slide it off of the bracket
arms. Wait until grill has cooled down before removing it.
Gas BBQ Grill Prep (if so equipped)
Your recreation vehicle may be equipped with a propane “quick-coupler” connection and
support bracket for easy installation of the BBQ grill.
Attaching the “quick coupler” connection
The “quick coupler” is directly connected to the RV propane system. The “quick-coupler”
connection is equipped with a positive shut-off valve.
Place the “quick coupler handle in the OFF position and push back the sleeve. The valve
handle must be OFF to make the connection.
1. Insert the plug and release the sleeve.
2. Push the plug until the sleeve snaps forward, locking the plug into the socket.
3. Turn the handle ON to allow propane to flow to the drop in stove.
