PLUMBING SYSTEM
UNI-DOCK UTILITY CENTER (IF SO EQUIPPED)
The Uni-Doc Utility Center is located in an exterior compartment in your recreation vehicle
and allows you to perform the following functions:
1. 3RZHU¿OOWKHIUHVKZDWHUWDQNIRUUHPRWHRUGU\FDPSLQJ
2. 8VHWKHSXPSWRVXSSO\ZDWHUWR¿[WXUHVIURPWKHIUHVKZDWHUWDQN
3. 8VHWKHSXPSWRVLSKRQ¿OORUVDQLWL]HWKHIUHVKZDWHUWDQNIURPDEXFNHW
4. &RQQHFWWRFLW\ZDWHUDWWKHFDPSVLWHWRVXSSO\ZDWHUWR59¿[WXUHV
5. :LQWHUL]HWKHSOXPELQJOLQHVDQG¿[WXUHV
6. Bypass the hot water heater when winterizing to avoid damage to the water heater
7. Rinse the black tank to help control odors and prevent waste buildup
8. Rinse off items outside the unit with hot/cold faucet
9. Connect up to (3) coax lines with satellite, cable and auxiliary
The city water connection inlet is located in the Uni-Dock utility center. Use a non-toxic
drinking water hose dedicated only to supplying the recreation vehicle with fresh water. To
A water pressure regulator is recommended to prevent damage to the plumbing
system or components. To prevent damage when using the city water
connection, a 45 lb. (315 KPa) rated water pressure regulator is recommended.
%#76+10

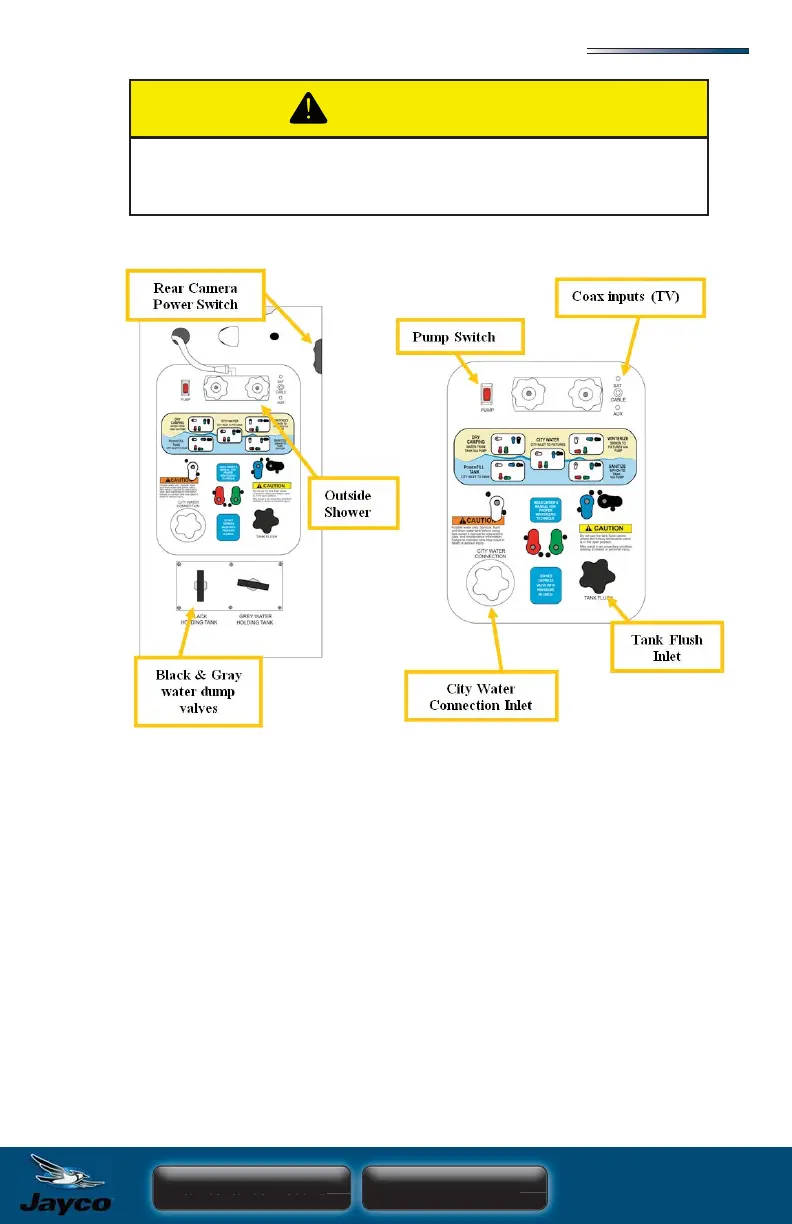

Uni-Doc Utility Center
