68
SLIDEOUT SYSTEMS
It is important to note that you DO NOT need to attempt to disengage the motor as the
actuator is “manual ready” Just hook up and crank.
Use EXTREME CAUTION when extending and/or retracting room using the manual
override feature. It is possible to operate the slideout beyond the maximum extension and/
or retraction and damage the slide components, slide room structure or trim components.

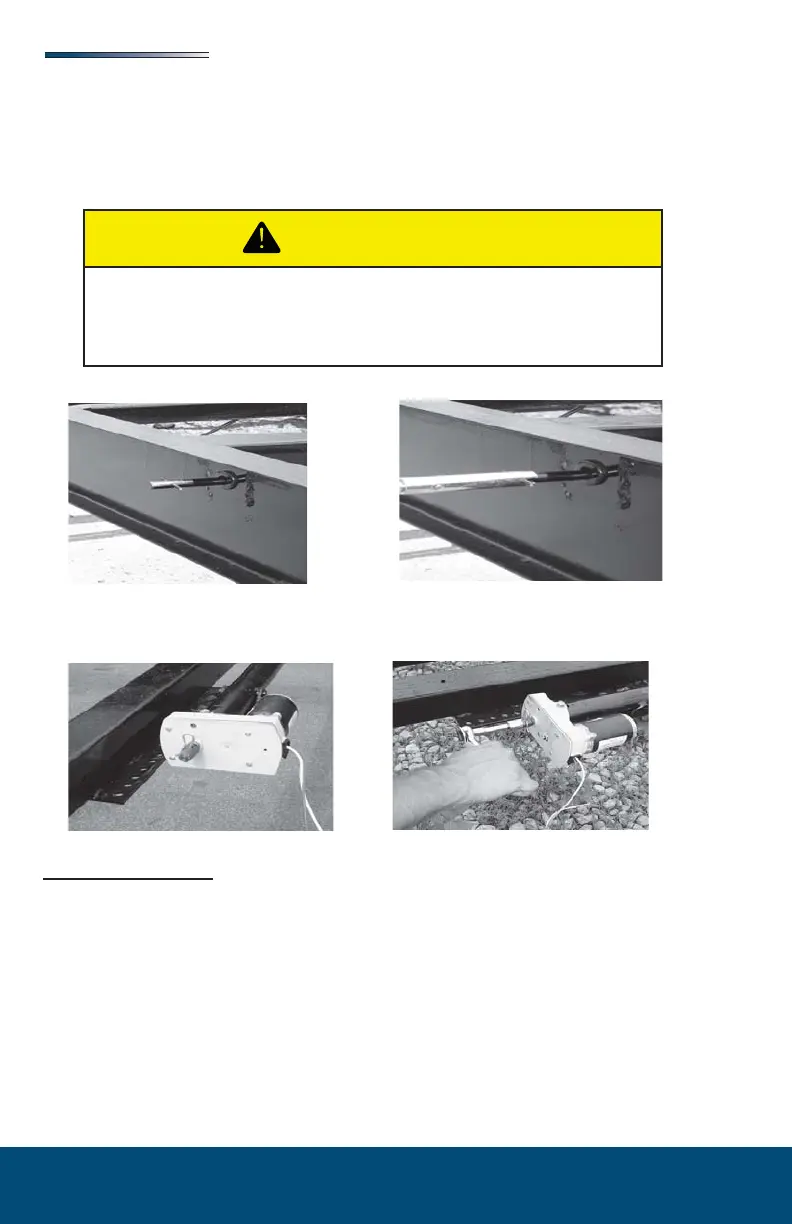

MANUAL OPERATION - THROUGH FRAME
MANUAL OPERATION IN FRAME
Power Gear® Slideout
The Power Gear® electric slideout is a rack and pinion design operated by a 12 Volt DC
electric motor. It consists of 4 major components:
Inner rail assemblies to support the room weight.
A 12 Volt DC gear motor to operate the room using power from the onboard battery.
A manual override that allows you to extend or retract the room in the event of a loss
of power.
A control that gives the user full control of room movement, in or out. The control has
a sensing capability that stops the motor when the room is fully extended or retracted.
The gears can be stripped out if the room is manually retracted/extended to
its fullest extent and the operator continues to rotate manual override. Any
damage due to misuse of the Manual Override feature will disqualify any and
all claims to the Limited Warranty.
%#76+10
Fig. 1-Through Frame Crank
Extension w/ pin
Fig. 2- Crank Handle
Fig. 3-Hex Head Crank Extension
Fig. 4-Ratchet
