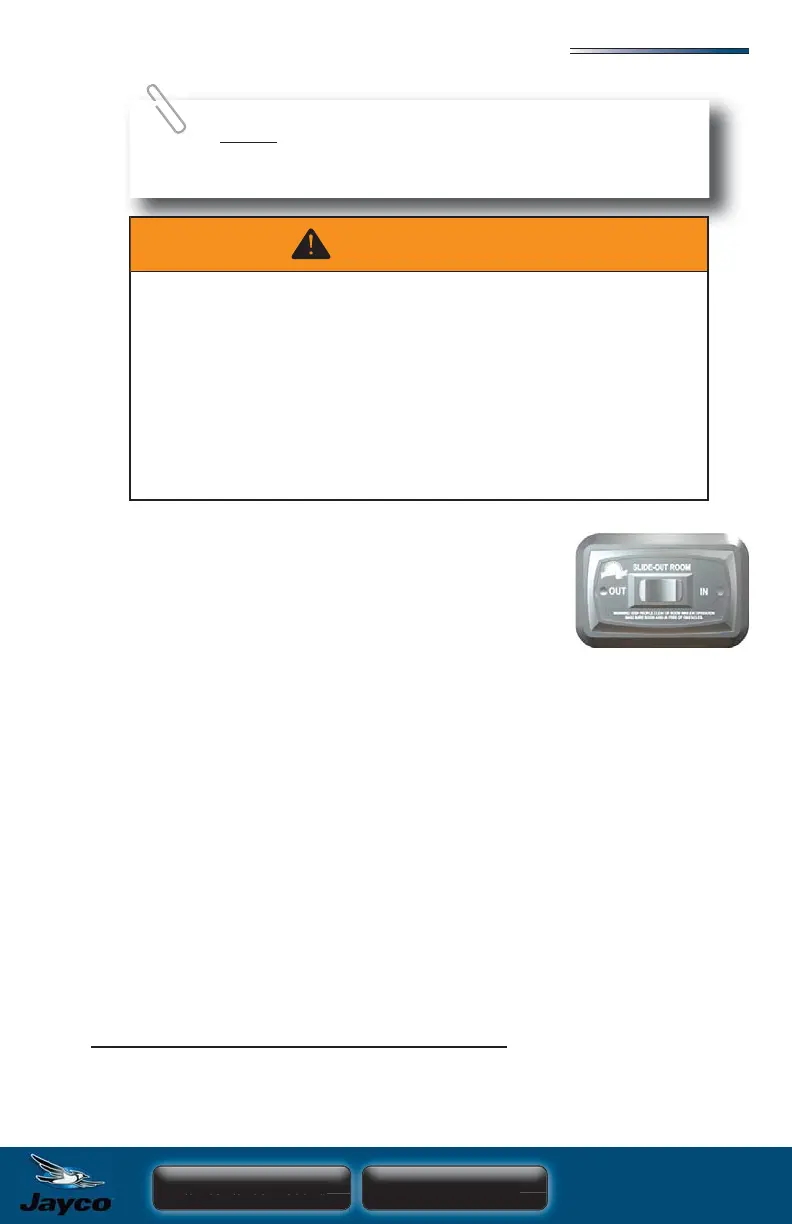

ELECTRICAL SYSTEM
Extending the room
1. Level the unit.
2. Main Power switch at stepwell (locations may vary) must be
ON.
3. Verify the battery is fully charged and hooked up to the
electrical system.
4. Remove the transit bars (if so equipped).
5. Press and hold the IN/OUT switch in the OUT position until the room is fully extended
and stops moving.
6. Release the switch, which will lock the room into position. If the slideout switch is held
after the room is fully extended, the control will sense that the room has stopped and
will shut the motor off after a few seconds.
Retracting the room
1. Verify the battery is fully charged and hooked up to the electrical system.
2. Press and hold the IN/OUT switch in the IN position until the room is fully retracted
and stops moving.
3. Release the switch, which will lock the room into position. If the slideout switch is held
after the room is fully extended, the control will sense that the room has stopped and
will shut the motor off after a few seconds.
4. Install the transit bars (if so equipped).
Manual Operation for the Power Gear slideout system
Your slideout system is equipped with a manual override that allows you to extend or retract
the room in the event of a loss of power.
NOTE: For long-term storage: It is recommended the room be
FORVHGUHWUDFWHG
 Always make sure the slideout room path is clear of people and objects
before and during operation of the slideout room.
 Always keep away from the slide rails when the room is being operated.
The gear assembly may pinch or catch on loose clothing causing personal
injury.
 Install transit bars (if so equipped) on the slideout room during storage
and transportation.
FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT
IN SERIOUS INJURY OR DEATH.
