117
PLUMBING SYSTEM
DRAINING THE FRESH WATER SYSTEM
Permanent water tanks may be drained through a valve located near the tank. A recreation
vehicle with a demand pressure pump system will have low-point drains attached to the
water lines (normally located near the water tank).
These low-point drains will release water in the supply lines by opening the valves and all
faucets. The water heater has its own drain plug. To drain the permanent fresh water holding
tank and supply lines:
1. Turn the water heater power OFF (Turn off the Electric & LP GAS switches).
2. Open all faucets, including the outside shower faucet.

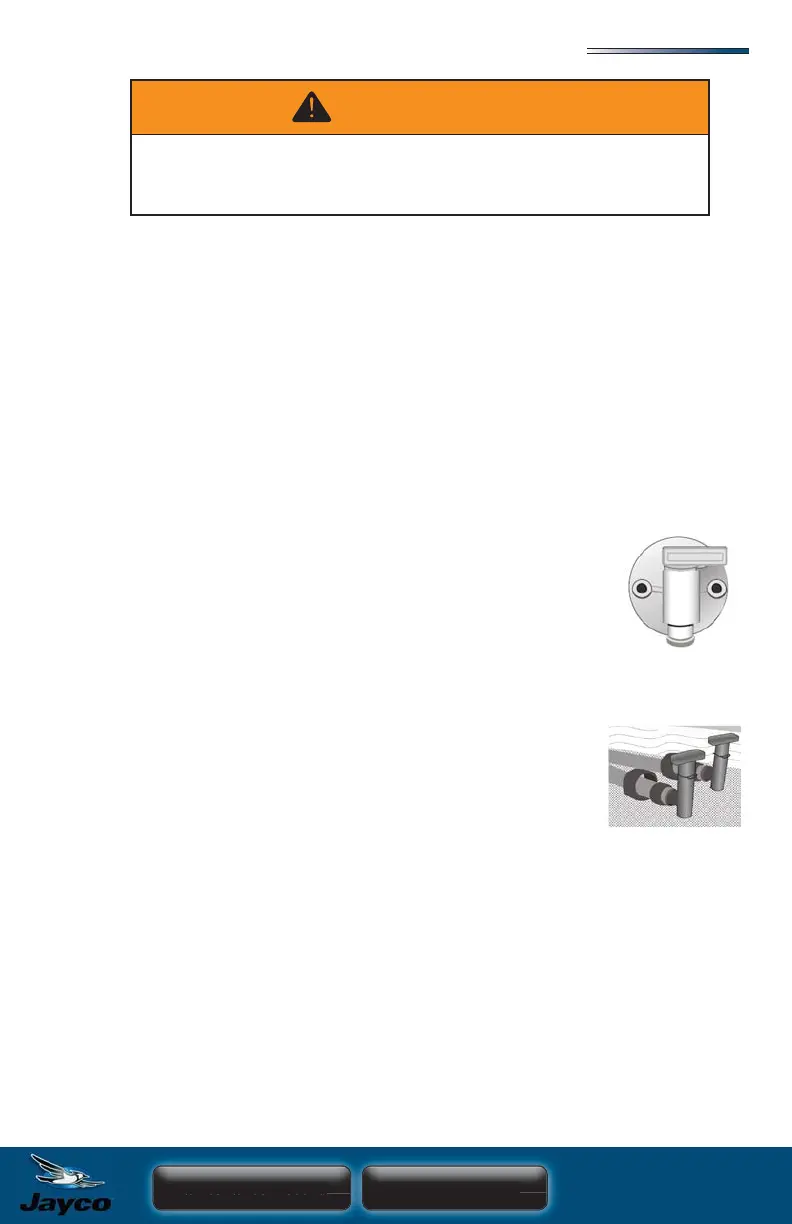

3. Open the “fresh tank drain” valve. All permanent fresh water
tanks can be drained by one of two types of drain valves. A white
plastic drain is attached to the exterior wall (open valve to drain)
or a valve located inside the motor home adjacent to the water tank
(this knob turns 45° to open or close).
4. Open the “low point drains” by turning, then pulling the handles
up. As their name indicates, they will be at the lowest point of
water lines. A label is placed on the outside of the RV to indicate
where the drains are located. The drains will typically need to
be opened from inside the motor home. Once the label is found
RQ WKH H[WHULRU VLGHZDOO JR LQVLGH WKH PRWRU KRPH WR ¿QG WKH
corresponding location of the drains.
5. Drain the sink by removing the drain cap.
6. Turn ON the water pump and allow it to run as needed.
7. ,IWKH59ZDWHUKHDWHUKDVE\SDVVYDOYHV6HWWKHPWRWKH%<3$66FRQ¿JXUDWLRQUHIHU
to the Water Heater Bypass section). Disregard if there are no bypass valves.
8. 2SHUDWHWKHWRLOHWÀXVKOHYHUXQWLOZDWHUVWRSVÀRZLQJ
9. Relieve the water pressure using the P&T valve BEFORE removing the water heater
drain plug. If there is any water pressure present the water will spray out of the opening
when the drain plug is removed.
:KHQ\RXDUH¿QLVKHGGUDLQLQJWKHIUHVKZDWHUV\VWHPUHYHUVHWKHVHVWHSVDQGGXPSWKH
grey and black water holding tanks at an appropriate facility or according to local public
codes.
It is normal for some liquid to remain in the fresh water tank after drainage procedure.
HARDWARE & SINK OR SHOWER FIXTURES
8VHPLOGGLVKVRDSDQGZDWHUWRFOHDQWKHVH¿[WXUHV'RQRWXVHKDUVKFKHPLFDOVRUVSUD\V
A mild solution of vinegar and water works well to remove hard water spots and stains from
WKHVLQNRUVKRZHU¿[WXUHV
Exterior fresh water
drain
Low point drains
Water temperatures over 125°F (49°C) can cause severe burns instantly or
death from scalds; therefore, be careful when using hot water. Always test the
water temperature before showering or washing.
