151
ELECTRONICS
SATELLITE (IF SO EQUIPPED)
Please refer to the manufacturer’s instructions for setup, care and maintenance.
TELEVISION ROOF ANTENNA (IF SO EQUIPPED)
To view local stations at either (or both) the front or bedroom television sets using the
television antenna, make sure the TV power supply is ON and the TV roof antenna is raised
to the operating position.
The following is an overview of the antenna operation. Refer to the manufacturer’s user
guide for detailed operating instructions.

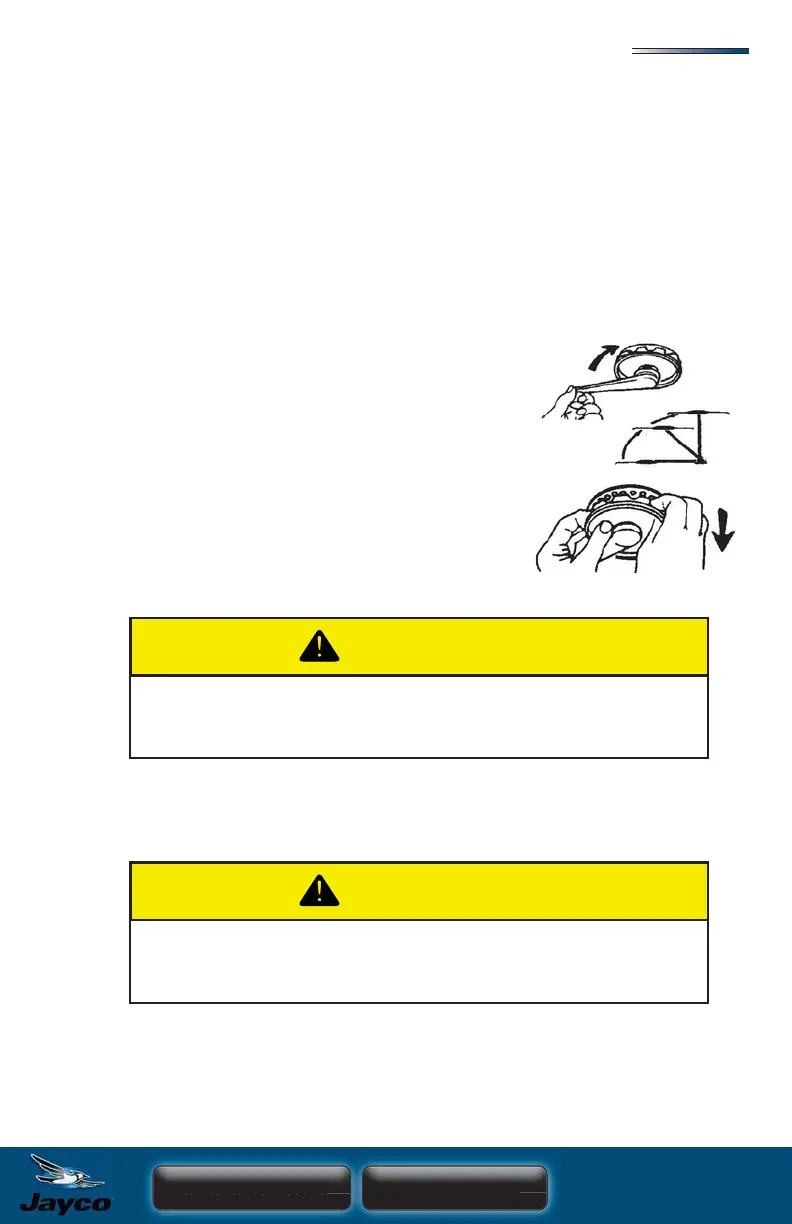

Raising the antenna
To raise the TV antenna to the operating position turn the antenna elevating crank clockwise
in the UP direction (approximately 13 turns) until some
resistance to turning is noted.
2QDPSOL¿HGPRGHOVYROW'&SRZHULVUHTXLUHG$IWHU
the antenna is in the full UP position, pull down on the
round knob with both hands until it disengages from the
ceiling plate. Rotate the knob for best picture.
To Test
1. Make sure the television set is working properly.
2. Switch the power supply ON and OFF to see if there
is a difference in the picture quality while watching
TV. If there is no difference, refer to manufacturer’s
manual for further testing procedures.
Lowering the antenna
Rotate the antenna until the pointer on the directional handle aligns with the pointer on
the ceiling plate. Turn the elevating crank counterclockwise in the DOWN direction until
resistance is noted. The antenna is now locked in the travel position.
DO’S
 Check parking location for obstructions before raising antenna.
 &DUHIXOO\UDLVHORZHUDQGURWDWH,IWKLVLVGLI¿FXOWFKHFNIRUFDXVH
 5RWDWHVORZO\ZKHQVHOHFWLQJVWDWLRQDQGFKHFN¿QHWXQLQJRQ79VHWWRPDNHVXUHLW
is properly adjusted.
The TV power supply should be turned OFF when connecting/disconnecting
the cables to the power supply and antenna, but should be turned ON when
testing for voltage.
%#76+10
Make sure the television antenna is in the travel position (cranked down)
before moving the recreation vehicle. Failure to lower the antenna into the
travel position before traveling may damage the antenna.
%#76+10
