INTERIOR

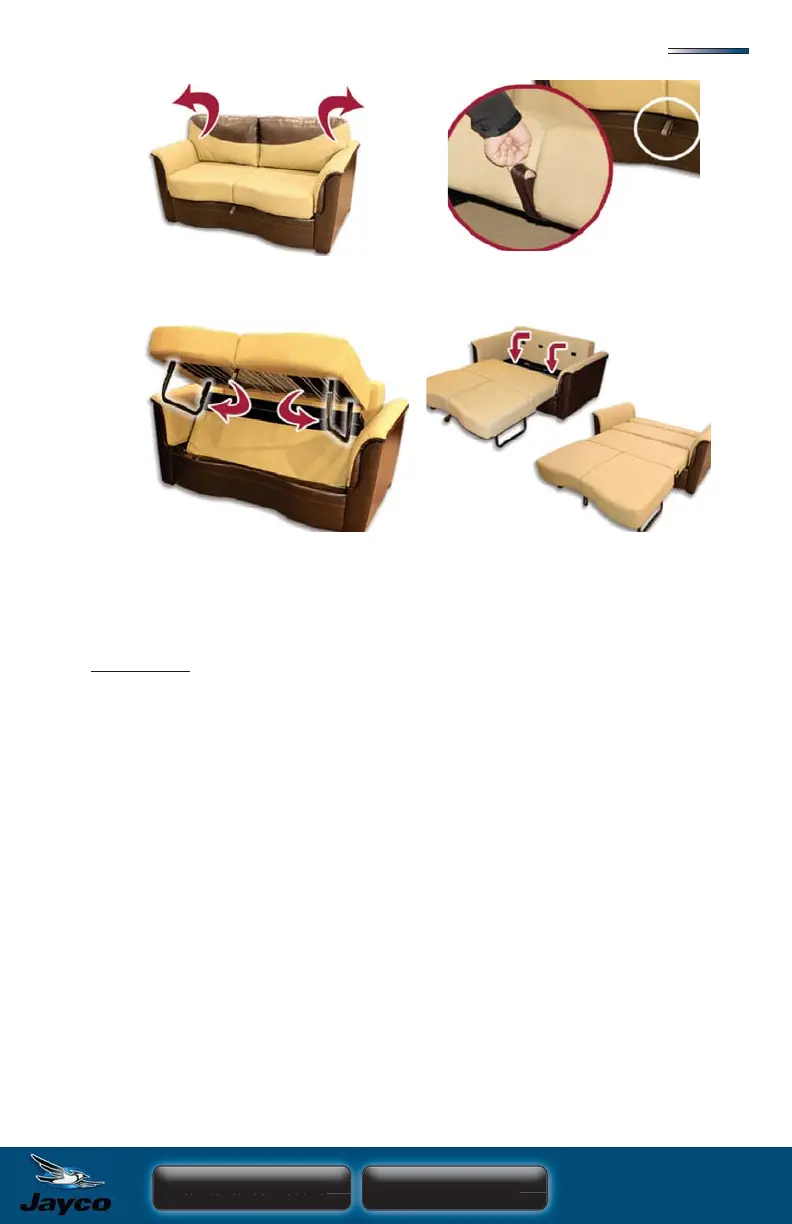

J-Cube Sofa
The J-Cube Sofa functions similar to a residential futon. The slanted back pillows offer
numerous options as a sofa, along with the ability to extend the cushions for additional
sleeping space.
3. While sleeping surface is up,fold
out legs. Extend sleeping surface
until grounded.
4. Once sleeping surface is grounded,
IROGKHDGERDUGGRZQÀDW
1.Remove tri-fold sofa pillows
and set aside
2. Using the strap handle, pull
sleeping surface up, then out.
FREE-STANDING TABLE & CHAIRS (IF SO EQUIPPED)
The free-standing dinette table can be positioned to seat up to four people. To prevent
damage, the standard free-standing dinette chairs should be fastened securely at the dinette
table when you are traveling
BOOTH DINETTE (IF SO EQUIPPED)
The dinette is designed to seat up to four adults. Depending on your model, there may be
a storage area in the dinette bench. To access this storage, remove all the cushions and lift
up on the bottom seat support. If the bottom seat support is secured closed with screws, do
not remove the seat support or use this area for storage. The dinette seats that are secured
ZLWKVFUHZVFRQWDLQIDFWRU\LQVWDOOHGHTXLSPHQWDQGVKRXOGRQO\EHDFFHVVHGE\DTXDOL¿HG
service technician.
Converting the dinette to the bed position
Remove all the cushions from the booth dinette. Lift up the tabletop and remove the
detachable table legs. Place the tabletop on the ledges provided between the booth dinette
benches. Lay the seat back cushions against the back of the dinette bench. Lay the dinette
seat bottom cushions in between the seat back cushions. The area where the cushions meet
