ELECTRICAL SYSTEM

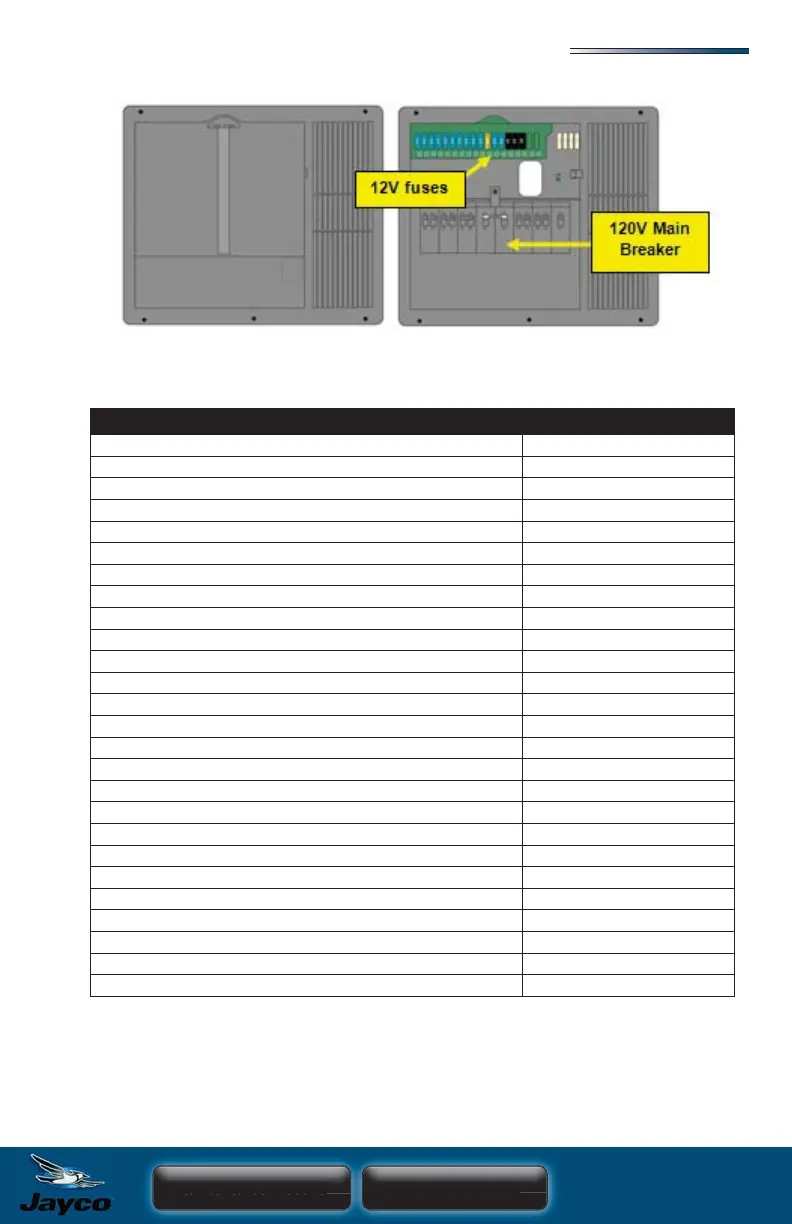

Typical Load Center Exterior Panel Typical Load Panel w/120 volt Main breaker-
APPROXIMATE ELECTRICAL LOAD RATINGS
12 Volt System
Aisle Lights 1.0 AMP
Baggage Compartment Lights 1.4 AMPS
Decorative Wall Lights 1.5 AMPS
Dinette Light 4.5 AMPS
Exterior Entertainment Center 5-7 AMPS
Fantastic Fan 1.5 AMPS
Fluorescent Double Lights -12” 2.0 AMPS
Fluorescent Double Lights -18” 2.5 AMPS
Furnace 12.0 AMPS
Generator Start 95.0 AMPS*
Halogen Light 1.7 AMPS
Illuminated Switch .125 AMP
Inverter variable
Leveling System 95.0 AMPS*
LP Detector .125 AMP
Map Light 1.5 AMPS
Porch Light 1.5 AMPS
Power Awning 10.0 AMPS
Power Vent 5.0 AMPS
Refrigerator 3.0 AMPS
Shower Light 1.4 AMPS
Step Cover 10.0 AMPS
TV Plate/Antenna Booster 1.0 AMP
Vanity Light 4.2 AMPS
Water Heater 6.0 AMPS
Water Pump 7.0 AMPS
*Momentary Load
12 Volts: Labeled watts divided by 12 = Power consumed in AMPS
