87
ELECTRICAL SYSTEM
may have the switches and controls mounted directly to the wall in the living area or vicinity
of the entrance door. In some cases, the systems monitor (which indicates tank levels and
battery charge) may also be included on this panel (refer to the Monitor Panel section).

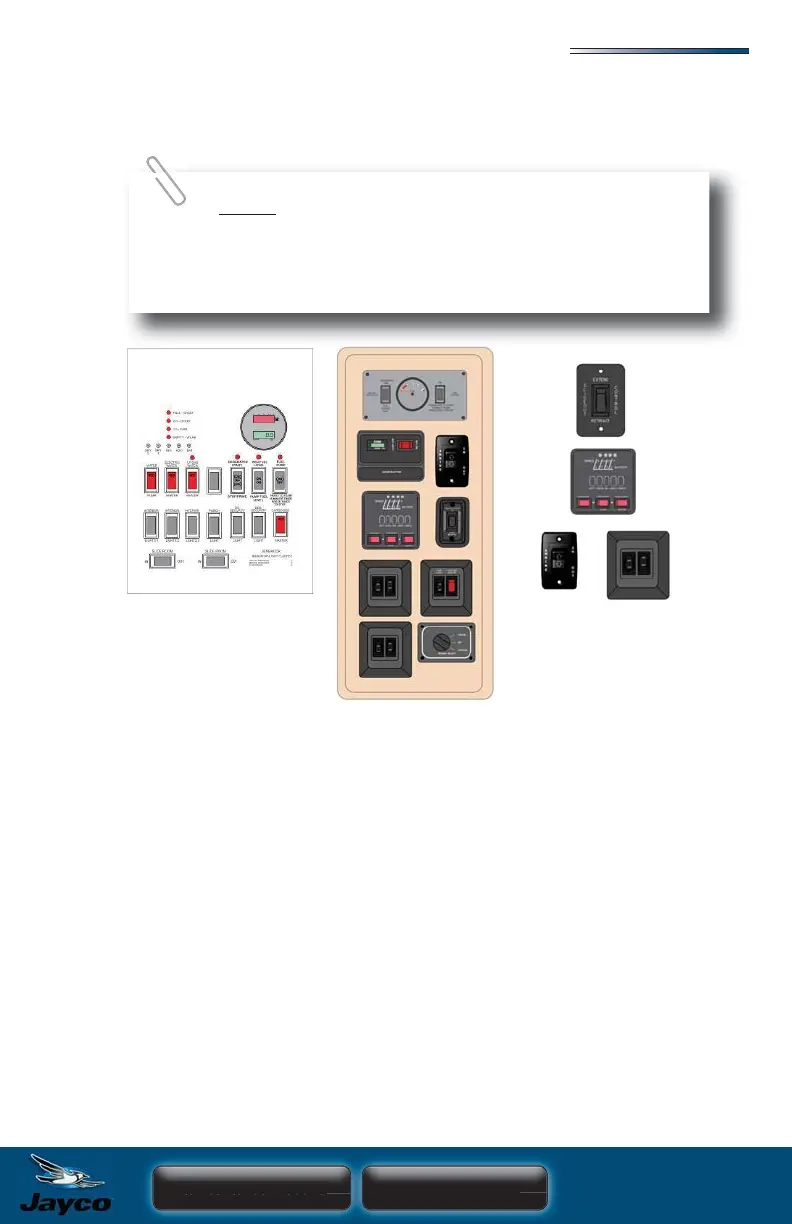

Command Center Panel:
Items found on this panel typically include (may vary by model):
 Fuel gauge and hour meter with switches for fuel pump and fuel levels
 Lighted red pump switch, lighted red water heater switches (electric & LP gas)
 Generator start / stop switch
 Tank heater switches
 Light switches for porch lights, exterior security lights, interior lights, awning
LED lights, front cap LED accent lights
 Cargo bed red lighted master control switch
 Slideout control switches (press and hold to extend / retract)
 Awning control switches (press and hold to extend / retract)
Command Center Panel with Switch Modules:
Items may include separate switch modules and controls that are mounted to a recessed
plastic panel. Items found on this panel typically include (may vary by model):
 Systems monitor with LED indicators for tank levels and battery charge status
 Systems monitor includes lighted red switches for pump and water heater
Mounted to wall
Command Center Panel W/Switch Modules
Command Center Panel
NOTE:&RPPDQGFHQWHUFRQ¿JXUDWLRQVDQGFRPSRQHQWVPD\YDU\
IURPPRGHOWRPRGHO1RWDOOFRPSRQHQWVOLVWHGPD\EHDYDLODEOHLQ
your model.
