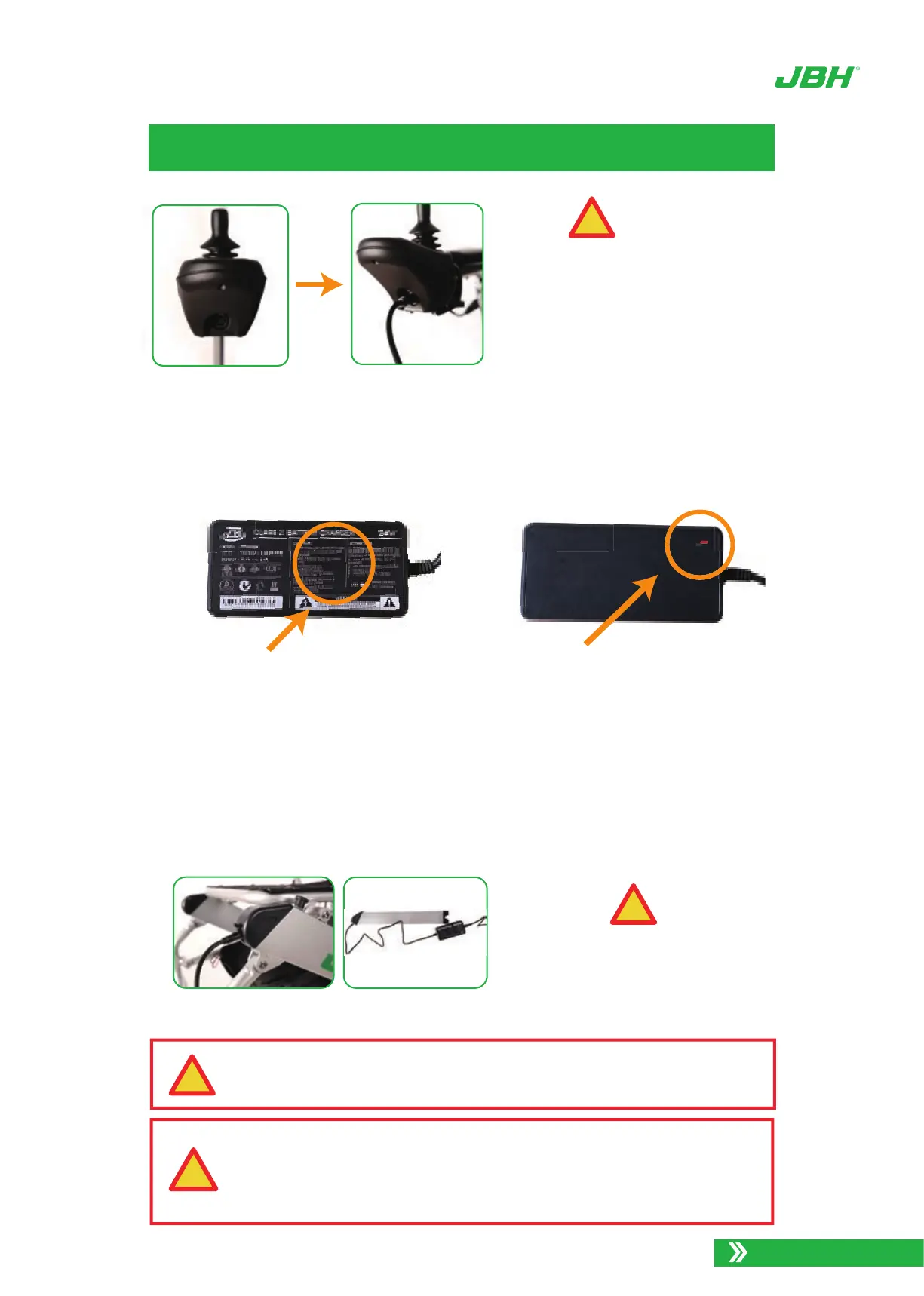

Photo 25. Charging batteries
Turn off the main power.
ā Second Charging Method:
1.
2.
3.
Flip open the charger port protector on the front of battery.
Use the secondary charger pigtail to adapt the battery charger to plug into the battery directly.
Caution
!
K eep charging time of single
battery in 3 hours when it
comes to off board charging
to avoid over charging.
Caution
Caution
!
Immediatly unplug charger from power source as soon
as indicating light on charger turns green.
No operation of wheelchair allowed while it is in thepro-
cess of charging battery. It is req uired to unplug charger
from power source prior to operate wheelchair.
Charging cycles is 800 times for single battery life extend.
!
Photo 26. Charging batteries
CHARGING BATTERIES
Charger light
Light should come on after plugging in
the charger.
GREEN colour indicates full drained.
RED--battery is charging.
Front
Definition of what the light colour mean
Back
Caution
!
Do not charge continuously over 6
hours through charging port of con-
troller to prevent over charging while
two batteries are inserted into both
sides of frame. Never charge over 3
hours when it is only one battery in
either side of frame.
Allow your wheelchair to charge for 6 hours full charge or when the light on the char-
ger turns green, which means your batteries are full charged.
Should you require them, the lights and what they mean are located on the back of
the charger.
3.
4.
