D .
Surround Mounting
The JBL 2502
mounting bracket will accommodate both the 8330 and the 8340 surround
systems. The user has a choice of mounting the loudspeakers for horizontal projection or for
15”
downward projection.
The electrical response switch on the 8330 and 8340 surrounds should be placed in the IS0
2969 X-curve position for cinema application. Figure 27 shows details of surround mounting, and
Figure 28 shows an exploded view of the 8340.
NOTE: All Hardware
included
In
installation
Kii
Except As Noted
Flat Washer,
3/6
(6)
.-.
I
Flat Washer.
S/16
(2)
Lock Washer. 5/t6 (2)
I
’
Bolt
From
LoudSpMkeC
Cabinet

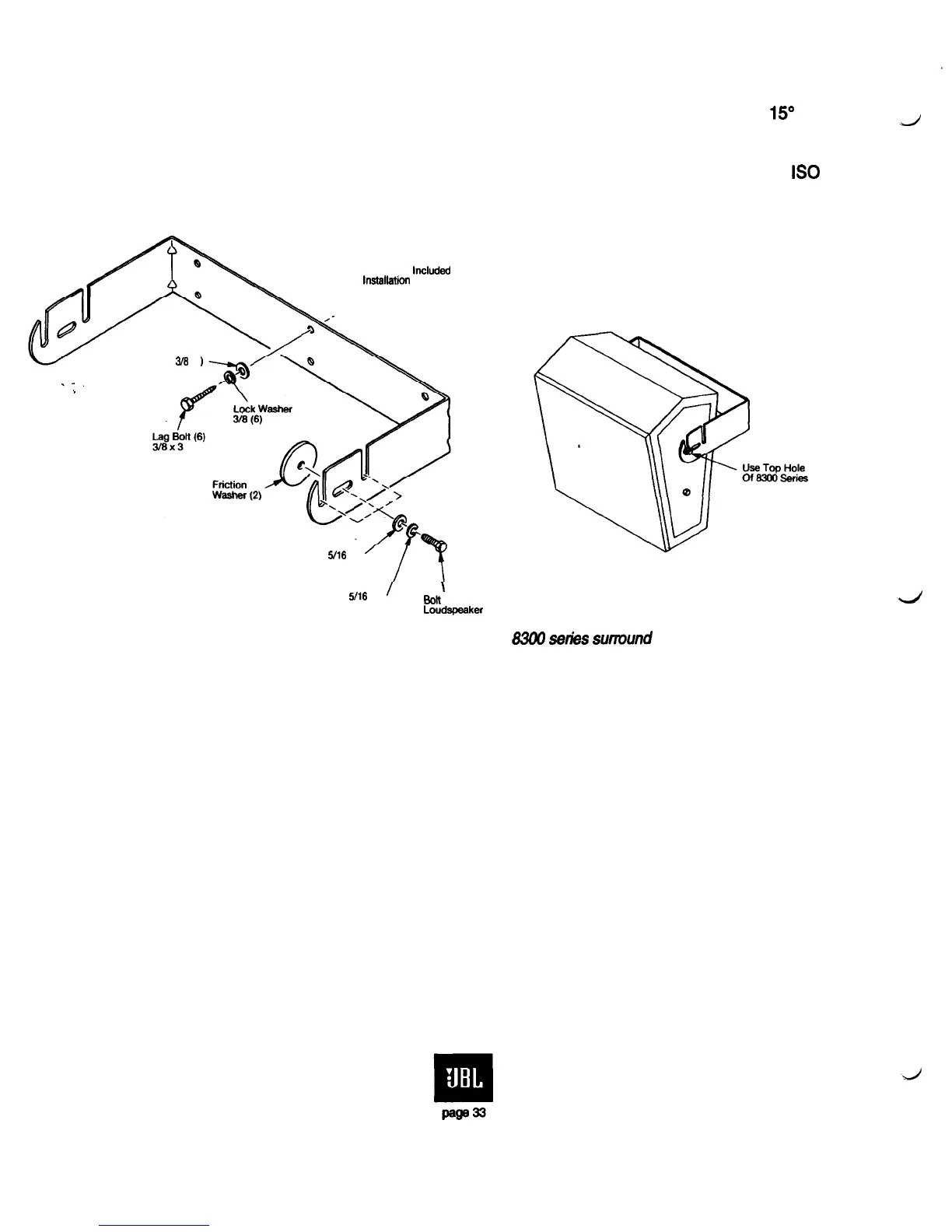

Figure 27.
2502 Wall Mount bracket used with
8300
set&s sumlund speakers
