INTERFERENCE ON RADIO
TROUBLE SHOOTING GUIDE
Poor atmospheric conditions - Try again later in the day.
Antenna / lead broken or damaged.
Check loudspeaker wiring.
This product contains a biamp. It is vitally important not to connect
the front loudspeaker ground to the rear speaker ground.
Faulty loudspeaker.
Distortion at highest volume levels may be normal, as amplifier has
reached maximum power output.
Otherwise the power and ground wire might be too small of a gauge.
(Use 10amp cable or more.)
Reduce the bass effect or switch off the loudness mode.
Boat battery and or charging circuit may be faulty.
SPECIFICATION
4 x 45 watts
DC + 12V
Negative Ground
4 - 8Ohm
Power Output :
Power Supply :
Speaker Impedance:
530 -1710KHz(USA)
522 -1620KHz(EUR)
35dB / uV
Tuning Range :
Sensitivity :
87.5 -107.9MHz(USA)
87.5 -108MHz(EUR)
10dB / uV
30dB
Tuning Range :
Sensitivity :
Separation :
FM TUNER
AM TUNER (OPTION)
COMPACT DISC
AUDIO AMP & GENERAL
20 Hz-20 KHz
0.8%
65 dB
90 dB
Freq. Response :
Total Harmonic Distortion :
Signal - Noise Ratio :
Dynamic Range :
DISTORTED AUDIO

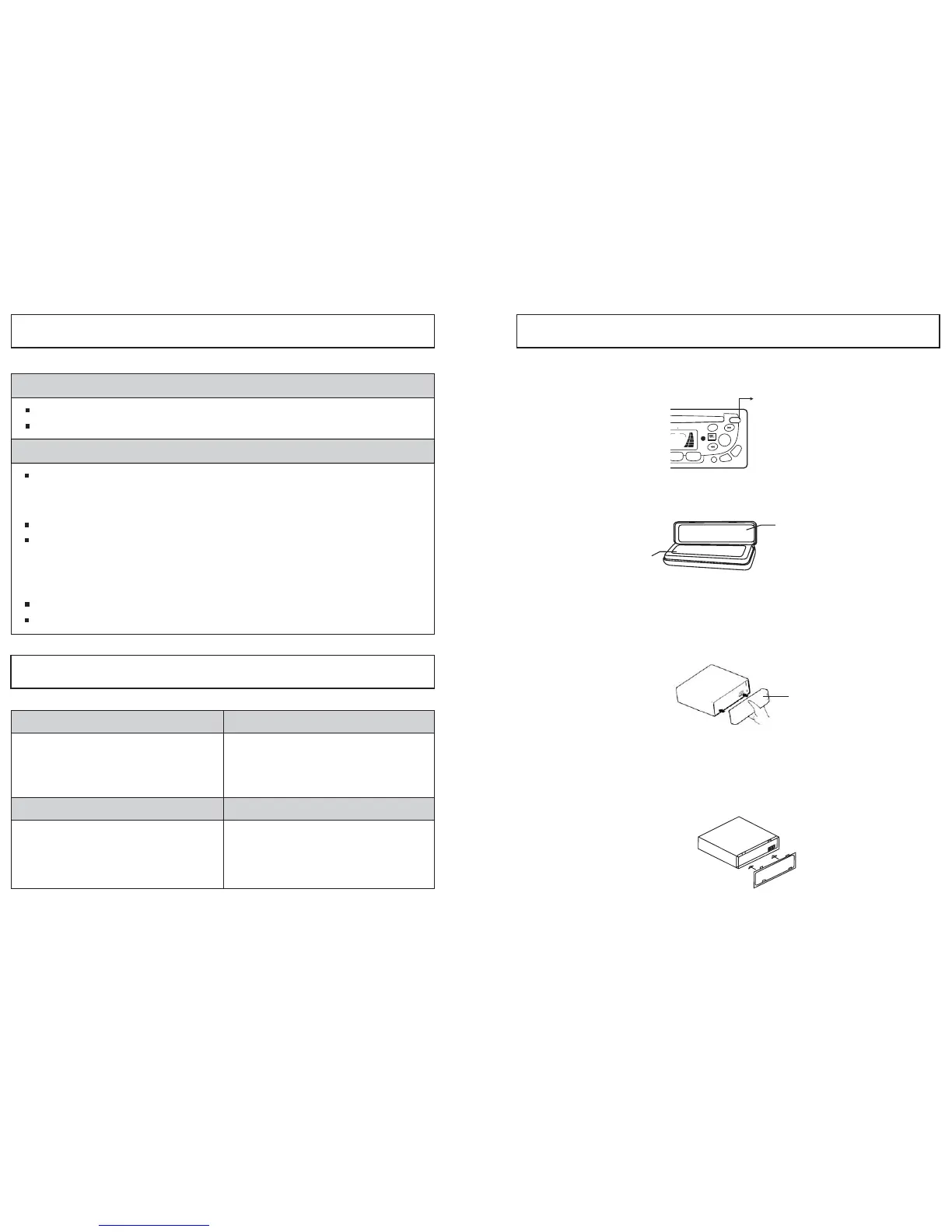

REMOVING or DETACHING THE FRONT PANEL
Carrying Case
Front Panel
1. Release ButtonPress to remove front panel.
Keep the detachable front panel to the protective case provided.2.
3. Detaching the Front Panel
Position the left side of the front panel into the locking tabs; then press
the right side of the front panel until it locks into position.
4 Attach the Trim Ring.
Attach the Trim Ring to the Radio if needed or desired by snapping
the four locking tabs into place.
Front Panel
14
3
Release Button
SCN
BD/LD
MUT
A.PS
5
6
T/F
REL
DETACHABLE SYSTEM
4 45WATTS
DSP
