JBL MS-8 User Manual

www.jbl.com
POWER
IMPORTANT: Perform the power connections in the following order.
1. Gnd: Connect this terminal to a paint-free location on the vehicle chassis.
IMPORTANT: Use at least 12-gauge wire for this connection.
English

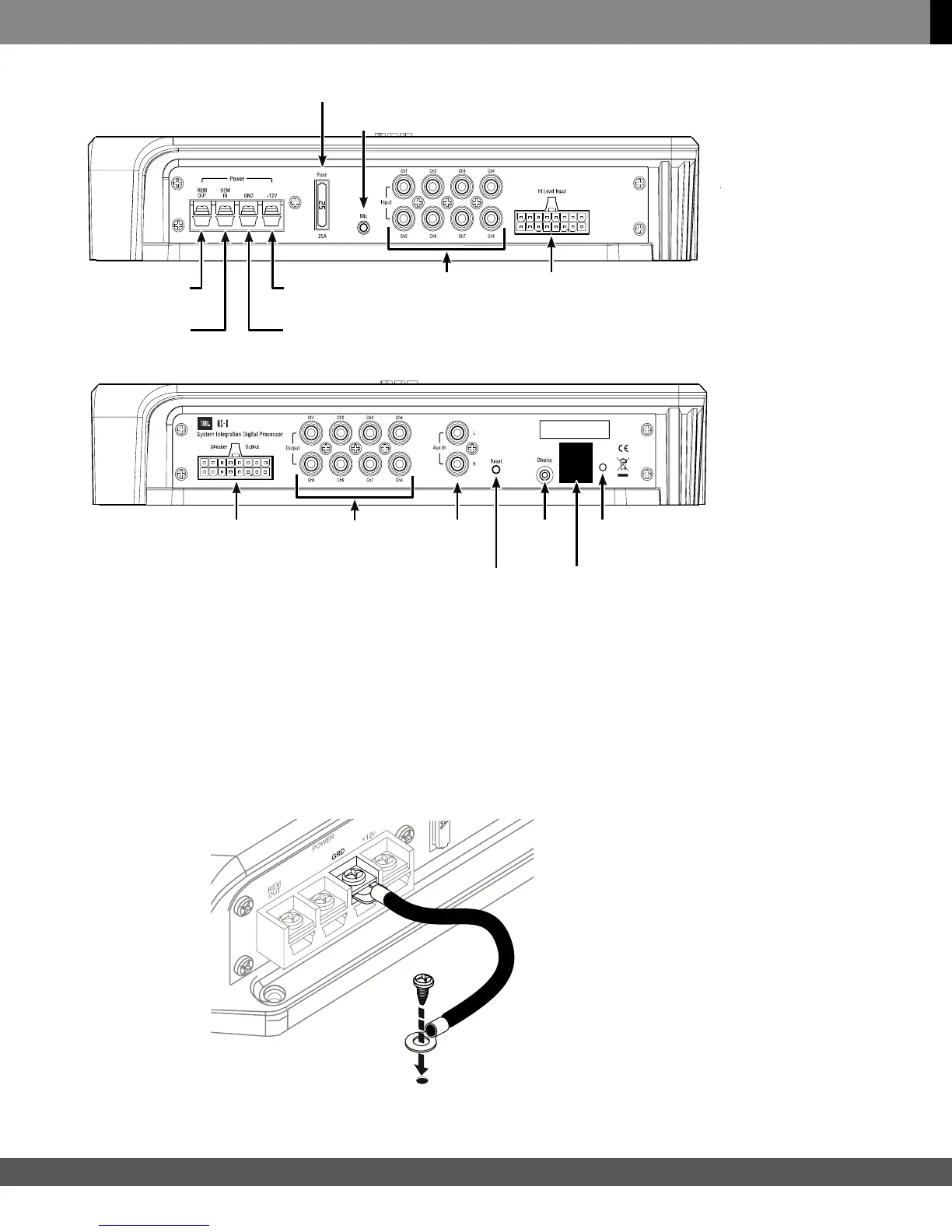

CONNECTIONS
REMOVE
FOR
SOFTWARE
UPDATE
25A
fuse
Mic
connection
Line input
connections
Hi Level inputRemote out
connection
Speaker output
connections
Line output
connections
Aux input
connections
Display
connection
Power
LED
Reset
button
Update
connection
+12V
connection
Remote in
connection
GND
connection




Chassis
ground
(unpainted)
5

JBL MS-8 Specifications

General

Amplifier class	-
Frequency range	20 - 20000 Hz
Audio output channels	5.1 channels
Peak power per channel	30 W
Signal-to-Noise Ratio (SNR)	85 dB
Total Harmonic Distortion (THD)	- %
RMS power output per channel (4 Ohm)	18 W
DC-in jack	Yes
Purpose	Car
Product color	Black, White
Connectivity technology	Wired
Built-in display	No
