CONNECTIONS
English

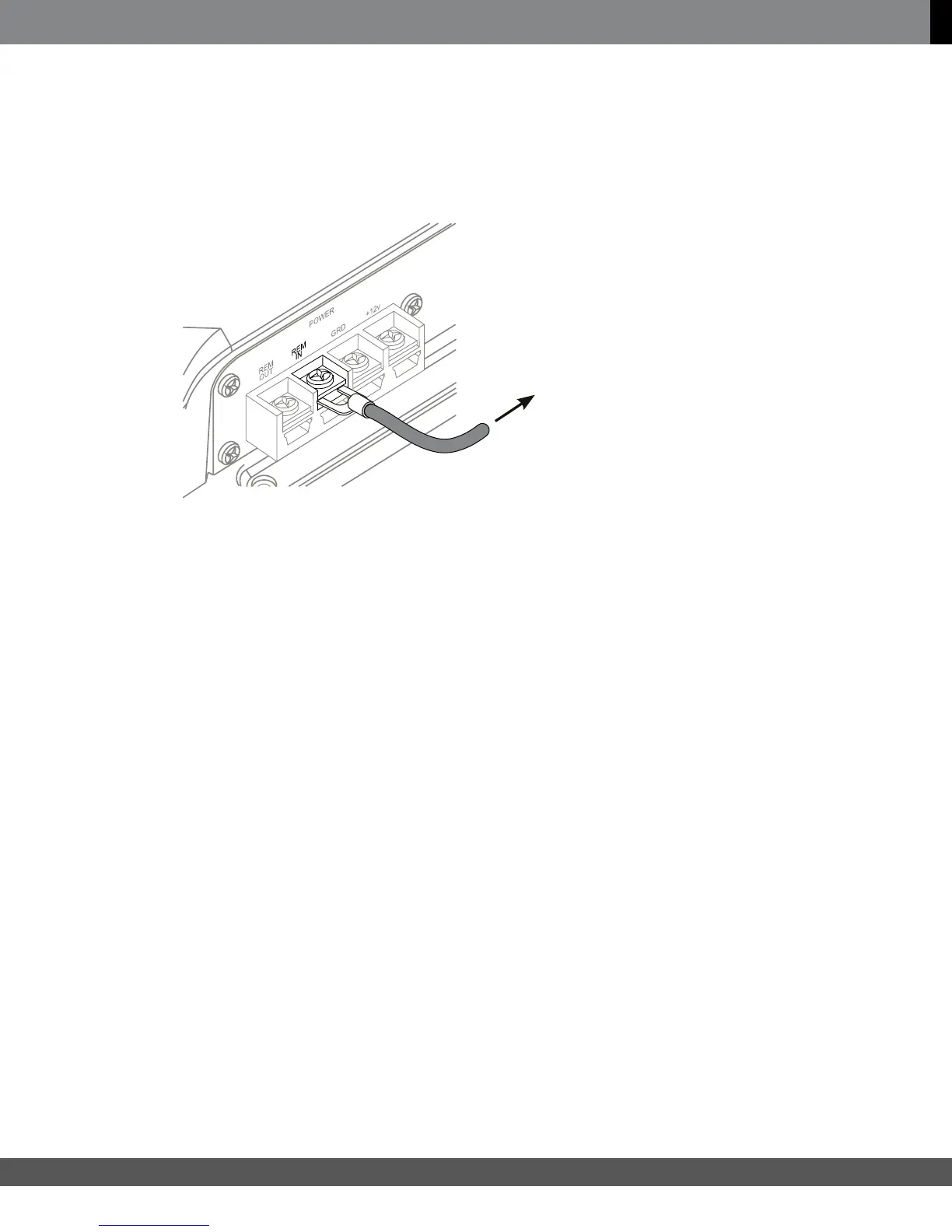

Rem In: Connect this terminal to the remote turn-on output of the system’s source unit, if the
source unit has a remote turn-on output. Alternately, you can connect this terminal to the vehicle’s
accessory (ACC) power circuit. Any voltage over +4V DC at this terminal will trigger the MS-8 to
turn on.
NOTE: See Step 3 for more details about connecting the Rem In terminal to a factory-installed
stereo system.
AUDIO INPUTS
Many factory-installed systems include on-board equalization and crossovers that make simple
connection of aftermarket products difcult. The MS-8 includes the signal-summing circuitry, signal-
conditioning EQ and time-correction processing that are necessary to reconstruct a at, full-range,
two-channel signal when you use the MS-8 with factory-installed equipment.
Aftermarket head units with line outputs provide a at, full-range, two-channel signal on their front line
outputs, so you need to connect only those channels to the MS-8.
To head unit
remote turn-on
or vehicle
ACC terminal
7
To Next Page
