JBL SB210 - Page 13

Satellite
Outputs
Left
Right

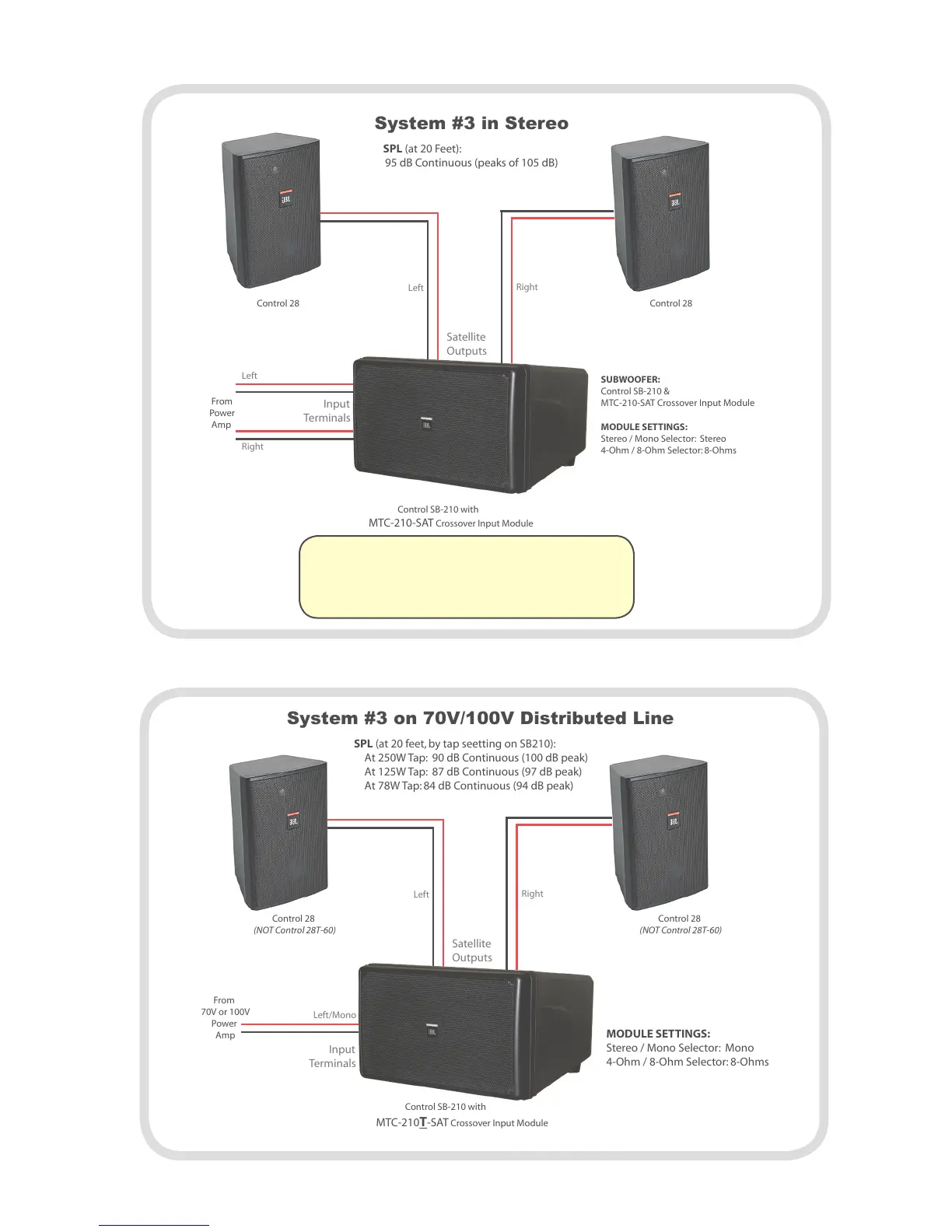

System #3 in Stereo
SPL (at 20 Feet):
95 dB Continuous (peaks of 105 dB)
SUBWOOFER:
Control SB-210 &
MTC-210-SAT Crossover Input Module
MODULE SETTINGS:
Stereo / Mono Selector: Stereo
4-Ohm / 8-Ohm Selector: 8-Ohms
Control 28 Control 28
Control SB-210 with
MTC-210-SAT Crossover Input Module
From
Power
Amp
Left
Right
Input
Terminals
Satellite
Outputs
Left
Right
System #3 on 70V/100V Distributed Line
SPL (at 20 feet, by tap seetting on SB210):
At 250W Tap: 90 dB Continuous (100 dB peak)
At 125W Tap: 87 dB Continuous (97 dB peak)
At 78W Tap: 84 dB Continuous (94 dB peak)
From
70V or 100V
Power
Amp
Left/Mono
Input
Terminals
Control SB-210 with
MTC-210T-SAT Crossover Input Module
MODULE SETTINGS:
Stereo / Mono Selector: Mono
4-Ohm / 8-Ohm Selector: 8-Ohms
Control 28
(NOT Control 28T-60)
Control 28
(NOT Control 28T-60)
Stereo System Connection Note
Ensure that the polarity hookup of the left and right inputs is correct.
If one of the inputs is connected backwards (out of polarity), the sub-
woofer will not produce much (if any) bass.
