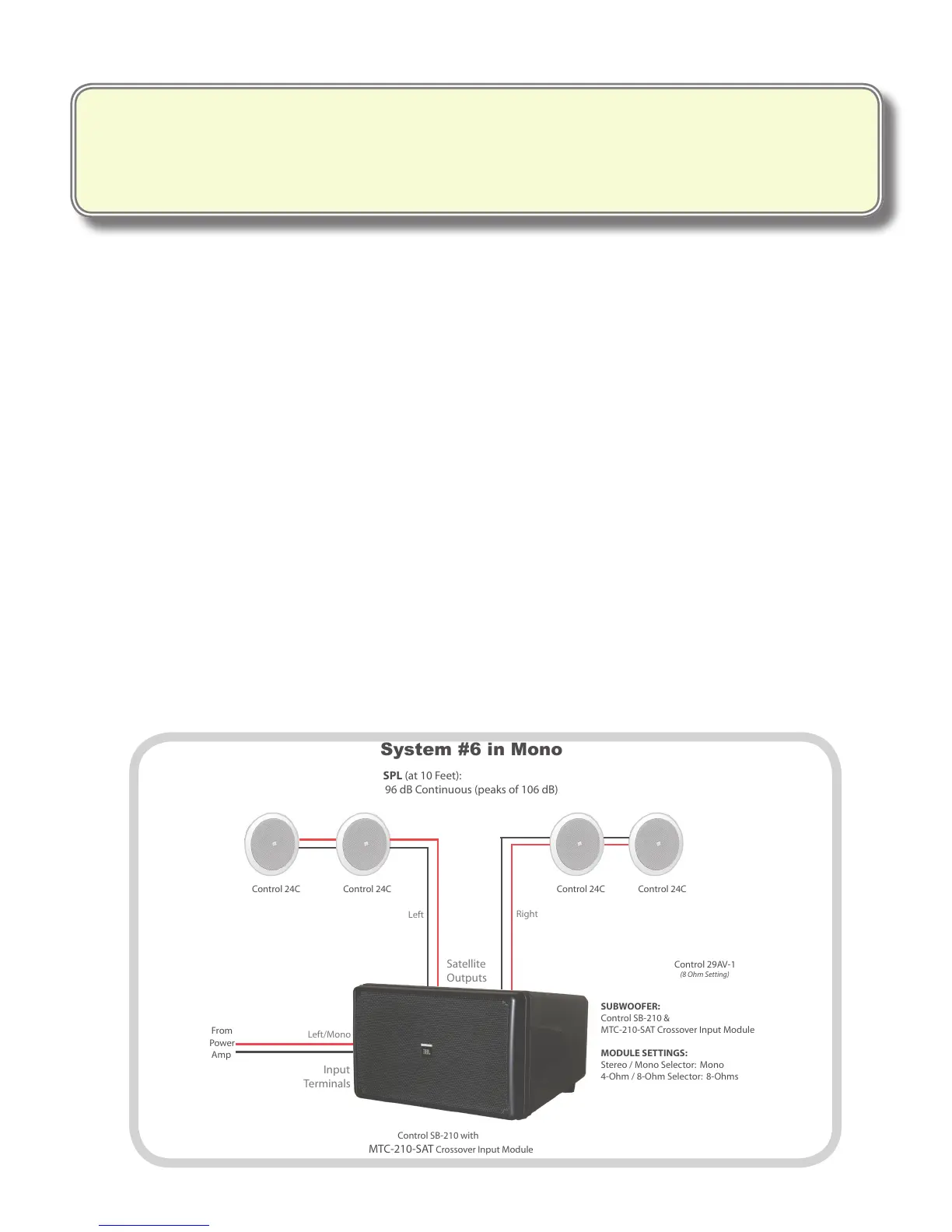

JBL SB210 - In-Ceiling Satellite Speaker Systems; System #6: 4 pcs Control 24 C with SB-210

Satellite
Outputs
Left
Right
System #6 in Mono
SPL (at 10 Feet):
96 dB Continuous (peaks of 106 dB)
From
Power
Amp
Left/Mono
SUBWOOFER:
Control SB-210 &
MTC-210-SAT Crossover Input Module
MODULE SETTINGS:
Stereo / Mono Selector: Mono
4-Ohm / 8-Ohm Selector: 8-Ohms
Input
Terminals
Control SB-210 with
MTC-210-SAT Crossover Input Module
Control 24C
Control 29AV-1
(8 Ohm Setting)
Control 24C Control 24C Control 24C
Systems with
IN-CEILING Satellite Speakers
Connection
Mono Operation – Connect input to the LEFT input termi-
nal. Put Stereo/Mono header into MONO position. Con-
nect 2 pcs of Control 24C to each satellite output (LEFT
and RIGHT). Do NOT connect all 4 satellite speakers to
a single satellite output.
Stereo Operation – Connect left and right inputs to the
LEFT and RIGHT input terminals. Put Stereo/Mono
header into STEREO position. Connect 2 pcs of Control
24C to each of the Satellite Outputs (LEFT and RIGHT)
In-ceiling loudspeakers can benefit from the addition of a subwoofer. Often that takes the form factor of an in-ceiling subwoofer like
Control 19CS or Control 312CS, but it may be desirable to use a subwoofer with a full passive crossover. For more information
about model selection, see the “Subwoofer Model Selection” and “Designing for Other JBL Subwoofer Models” sections, above.
e SB-210 with MTC-210-SAT module is a subwoofer that contains a built in passive crossover, which makes it easy to structure
subwoofer/satellite systems. With in-ceiling satellite speakers, the SB-210 can be mounted on a wall or ceiling via the MTC-210U U-
bracket, suspended from the ceiling via built-in suspension points, or installed above an air grate grille in the ceiling.
System #6
4 pcs Control 24C with Control SB-210
Application: Medium volume, high-fidelity music
reproduction where 4 in-ceiling satellite speakers are needed
to cover the area.
Max Continuous Average SPL (at 10 feet): 96 dB
(with peaks of 106 dB).
4 Ohm / 8 Ohm Setting: 4 Ohms.
Stereo/Mono Capability: Either setting can be utilized
16 17
