Satellite
Outputs

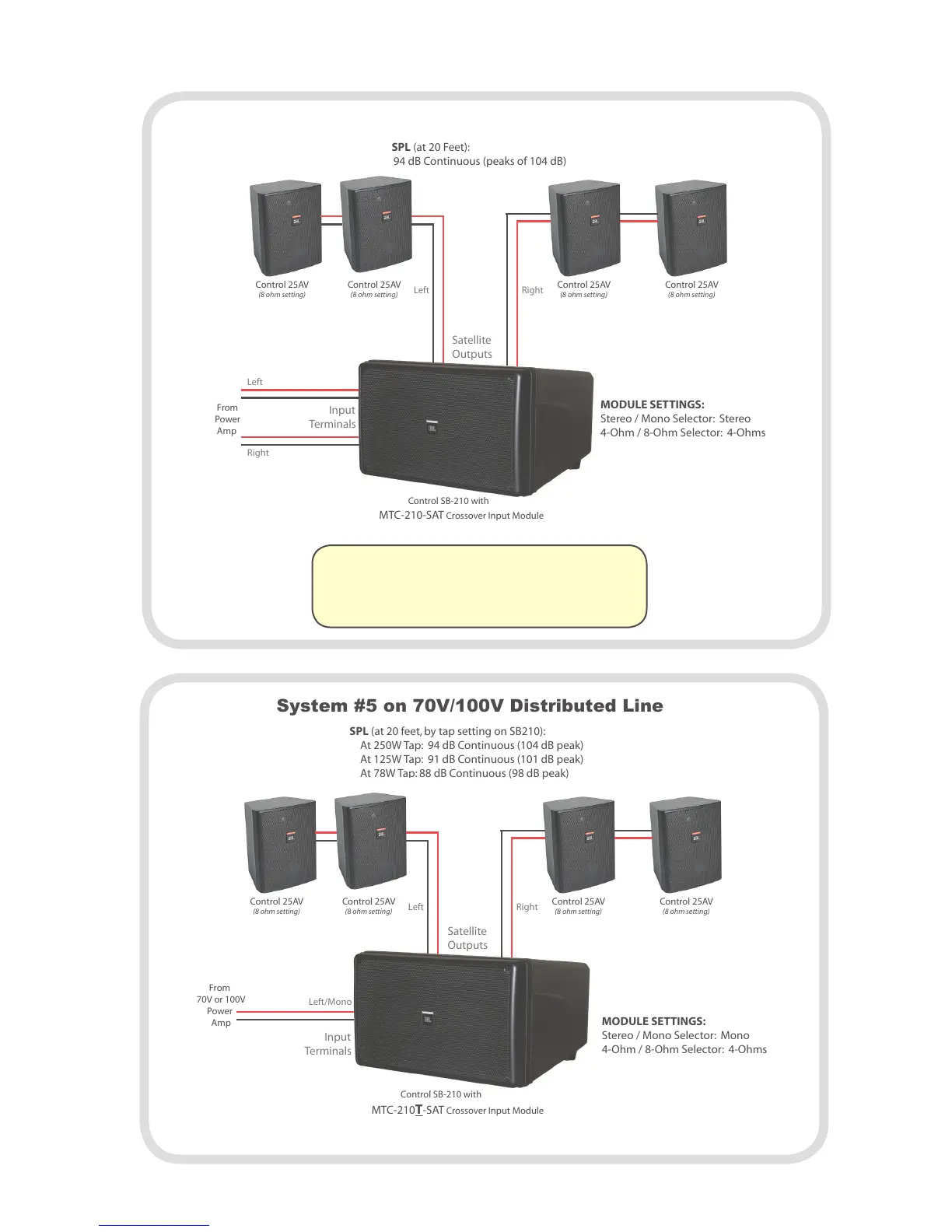

System #5 on 70V/100V Distributed Line
SPL (at 20 feet, by tap setting on SB210):
At 250W Tap: 94 dB Continuous (104 dB peak)
At 125W Tap: 91 dB Continuous (101 dB peak)
At 78W Tap: 88 dB Continuous (98 dB peak)
From
70V or 100V
Power
Amp
Left/Mono
Input
Terminals
Control SB-210 with
MTC-210T-SAT Crossover Input Module
MODULE SETTINGS:
Stereo / Mono Selector: Mono
4-Ohm / 8-Ohm Selector: 4-Ohms
Left Right
Control 25AV
(8 ohm setting)
Control 25AV
(8 ohm setting)
Control 25AV
(8 ohm setting)
Control 25AV
(8 ohm setting)
Satellite
Outputs
Left Right
System #5 in Stereo
SPL (at 20 Feet):
94 dB Continuous (peaks of 104 dB)
From
Power
Amp
Left
Right
MODULE SETTINGS:
Stereo / Mono Selector: Stereo
4-Ohm / 8-Ohm Selector: 4-Ohms
Input
Terminals
Control SB-210 with
MTC-210-SAT Crossover Input Module
Control 25AV
(8 ohm setting)
Control 25AV
(8 ohm setting)
Control 25AV
(8 ohm setting)
Control 25AV
(8 ohm setting)
Stereo System Connection Note
Ensure that the polarity hookup of the left and right inputs is correct.
If one of the inputs is connected backwards (out of polarity), the sub-
woofer will not produce much (if any) bass.
