System #3
2 pcs Control 28 & Control SB-210
Application: Medium volume ambient music in small
spaces where two satellite speakers are enough to cover the area.
Max Continuous Average SPL (at 20 feet): 95 dB (with
peaks of 105 dB)
Max Output Balance -- e subwoofer has higher
maximum output capability than the satellite speakers, so this
system has the capability of being utilized for applications
where the bass will be EQ’d substantially higher than the
mids and highs. e system also works fine for flat-response
applications.
4 Ohm / 8 Ohm Setting: 8 Ohms
Stereo/Mono Capability: Either setting can be utilized
Connection:
Mono Operation – Connect input to the LEFT input
terminal. Put Stereo/Mono header into MONO position.
Connect 1 pc of Control 28 to each satellite output (LEFT
and RIGHT). Do NOT connect both satellite speakers to
a single satellite output.
Stereo Operation – Connect left and right inputs to the
LEFT and RIGHT input terminals. Put Stereo/Mono
header into STEREO position. Connect 1 pc of Control
28 to each of the Satellite Outputs (LEFT and RIGHT)

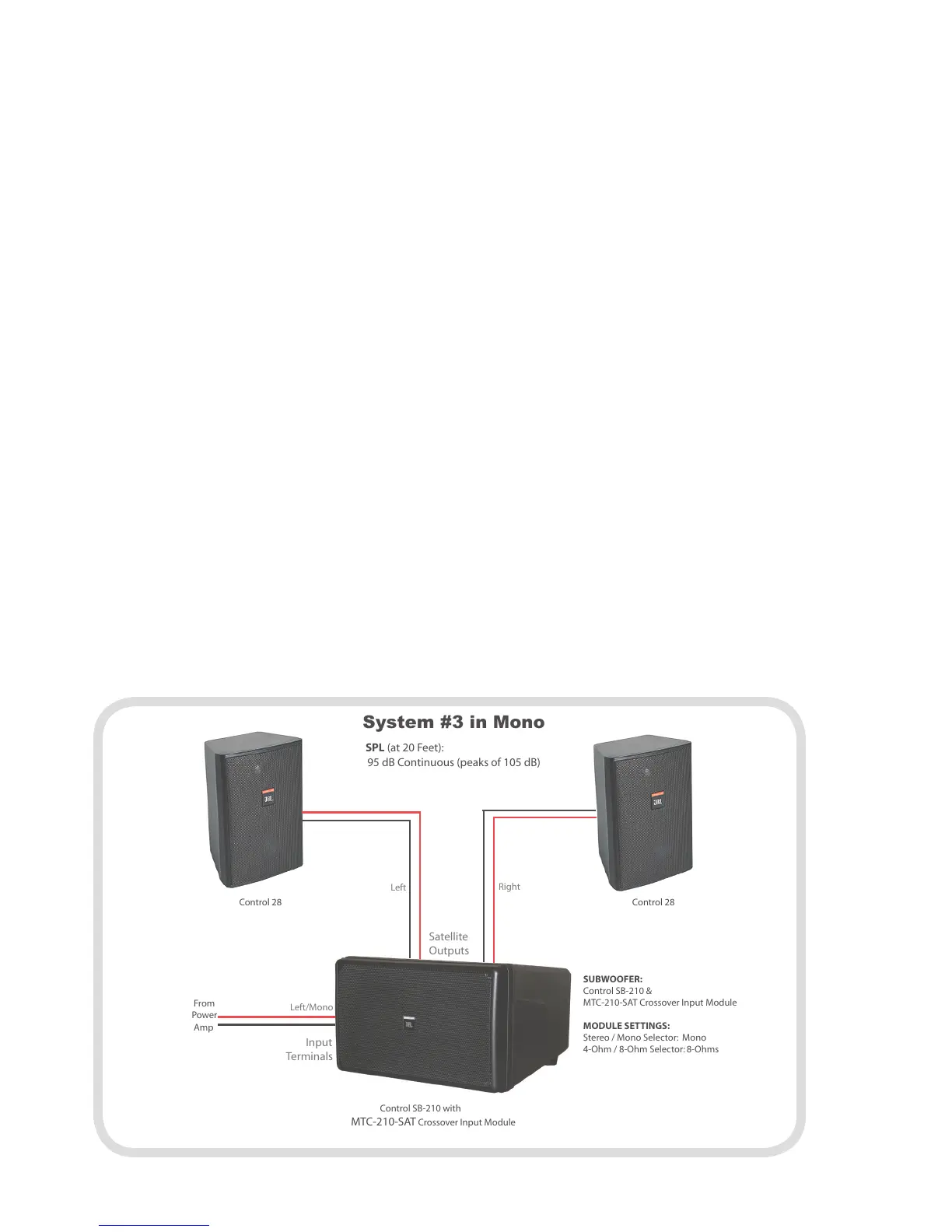

Connection Diagrams
Satellite
Outputs
Left
Right
System #3 in Mono
SPL (at 20 Feet):
95 dB Continuous (peaks of 105 dB)
From
Power
Amp
Left/Mono
SUBWOOFER:
Control SB-210 &
MTC-210-SAT Crossover Input Module
MODULE SETTINGS:
Stereo / Mono Selector: Mono
4-Ohm / 8-Ohm Selector: 8-Ohms
Input
Terminals
Control 28 Control 28
Control SB-210 with
MTC-210-SAT Crossover Input Module
10 11
