NETWORKING
SRX800 Speakers feature an Ethernet connector so that they can be controlled via Audio Architect (version 1.60 or later) or SRX
Connect. The latest versions of both of these programs can be found at http://www.jblpro.com/www/products/portable-market/
srx800-series.

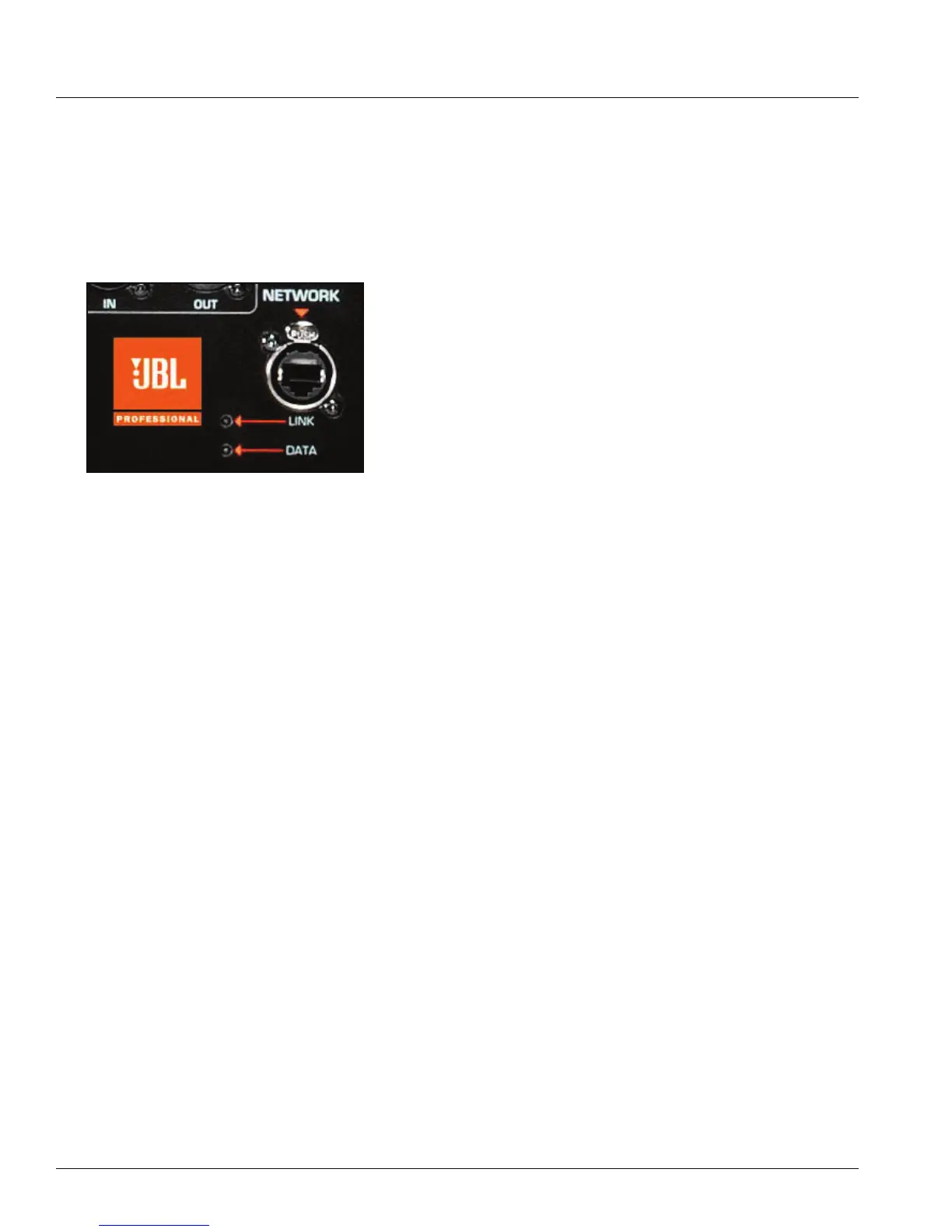

When a connection is established, the LINK LED on the back panel of the speaker will illuminate. The DATA LED will also light to
indicate that the speaker is sending and receiving information via the network.
There are several options for connecting the speakers to a network:
1. Direct Connection
Simply plug an Ethernet cable into both the SRX speaker and your computer. You can now control this individual speaker.
2. Wired connection
Connect any number of SRX speakers to a wired network router, either directly or via a switcher, and connect your
computer to that same network. You can now control all speakers on the network.
3. Wireless connection
Connect any number of SRX speakers to a wireless router either directly or via a switcher, and connect your computer or
tablet to that same network. You can now control all speakers on the network. Wireless connection is the only option for
tablet control via the SRX Connect app for iPad and Android tablets.

JBL SRX828SP Specifications

General

Frequency Response (-10dB)	29 Hz - 150 Hz
Frequency Response (-3dB)	35 Hz - 120 Hz
Max SPL Output	141 dB
Power Rating	2000W Peak
Amplifier Design	Class D
AC Power	100V - 240V ~ 50/60 Hz
System Type	Self-powered dual 18" subwoofer
Input Connectors	2 x XLR-1/4" combo jacks
Input Impedance	20k ohms balanced, 10k ohms unbalanced
Signal Indicators	Limit, Signal, Power
Cooling	Variable speed fan
Enclosure	18 mm plywood
Grille	Powder coated, perforated steel
LF Driver	2 x 18"
Finish	Black DuraFlex finish
