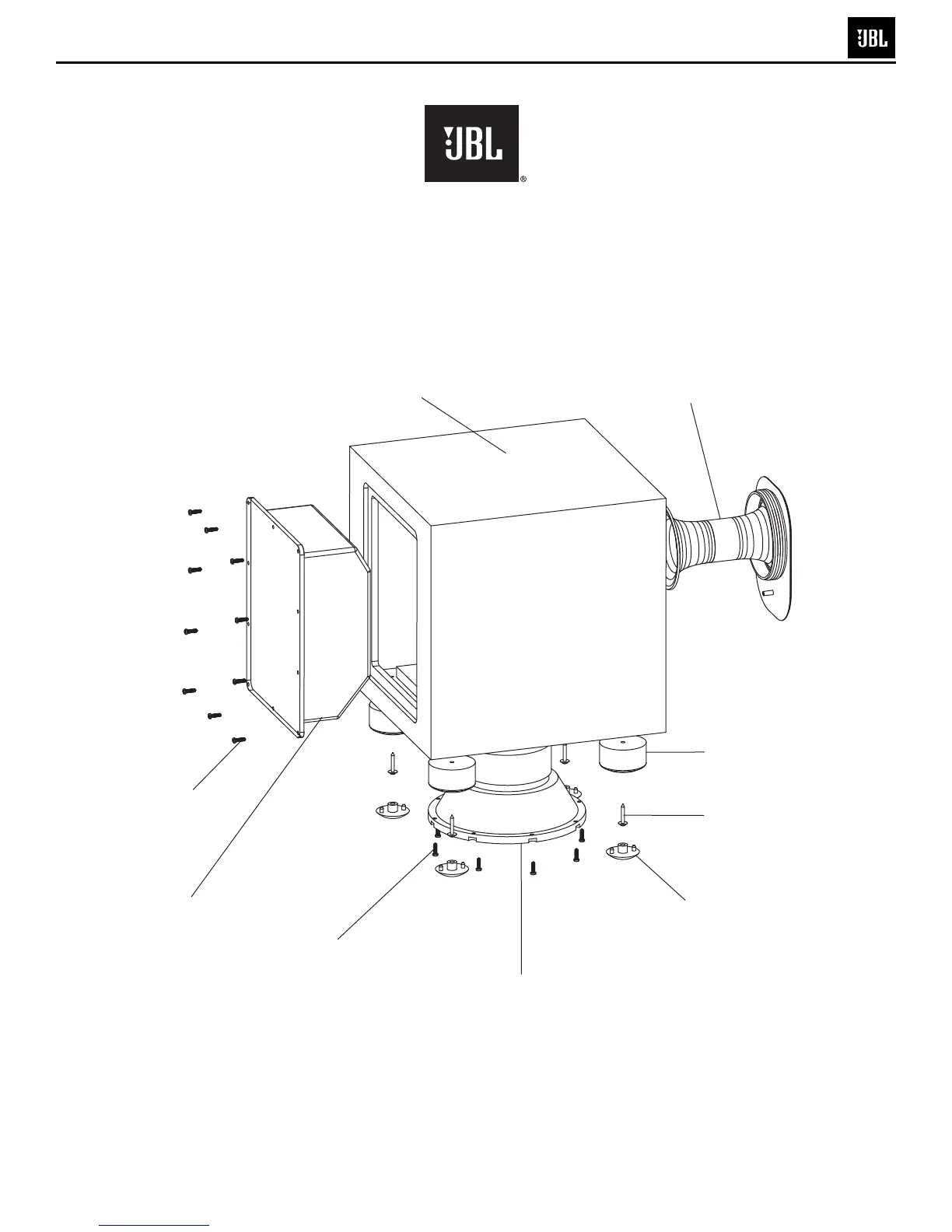

SUB200 Amplifier
Not For Sale
SUB200 Cabinet
Not For Sale
Woofer Screw (8)
352-FM04020D605
8" Woofer DCR=3.4Ω
20MF10DAG-DW04
Rubber Foot Base (4)
321-ABS-00009
Foot Screw (4)
352-HM04030D500
Main Body Rubber Foot (4)
321-ABS-00008
Port Tube
249-ABS-00174
Amplifier Screw (10)
352-AM04020D210
SUB200
Exploded View
SUB200 (SCS200.7sys)
