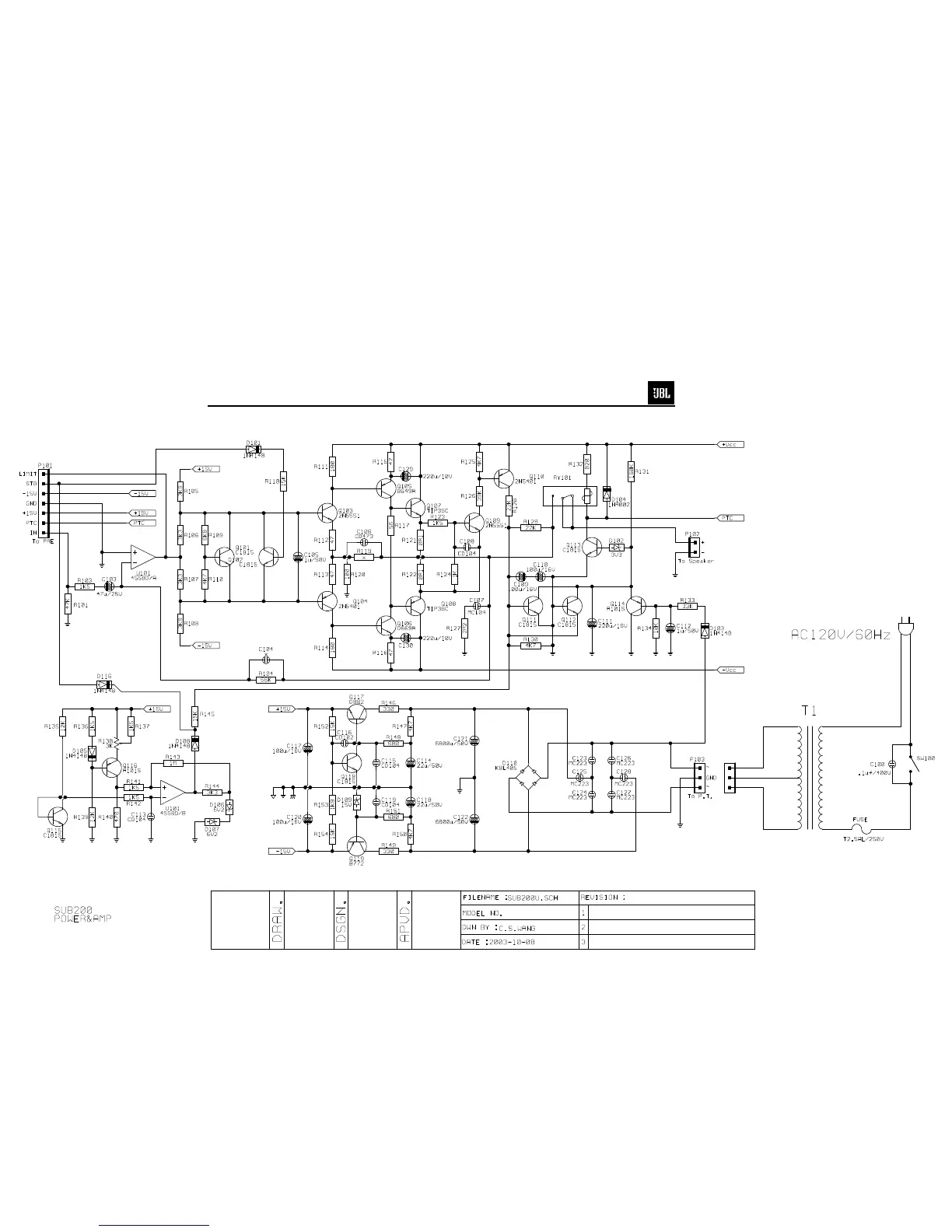

SUB200 (SCS200
.7
sy
s)
STANDBY DEL
AY
Adjustment
Procedur
e for R138:
Use DC voltmet
er attached to R140,
adjust R138 until
the meter reads
510mV (
+/-2mV)
(
f
or 120v
model)
460mV (
+/-2mV)
(
f
or 230v
model)
then use "LOCT
ITE" to fix R138.
21
21
23
