jcb 19C-1E Quick Reference Guide

Please see operator manual for full details.
TIE DOWN POINTS

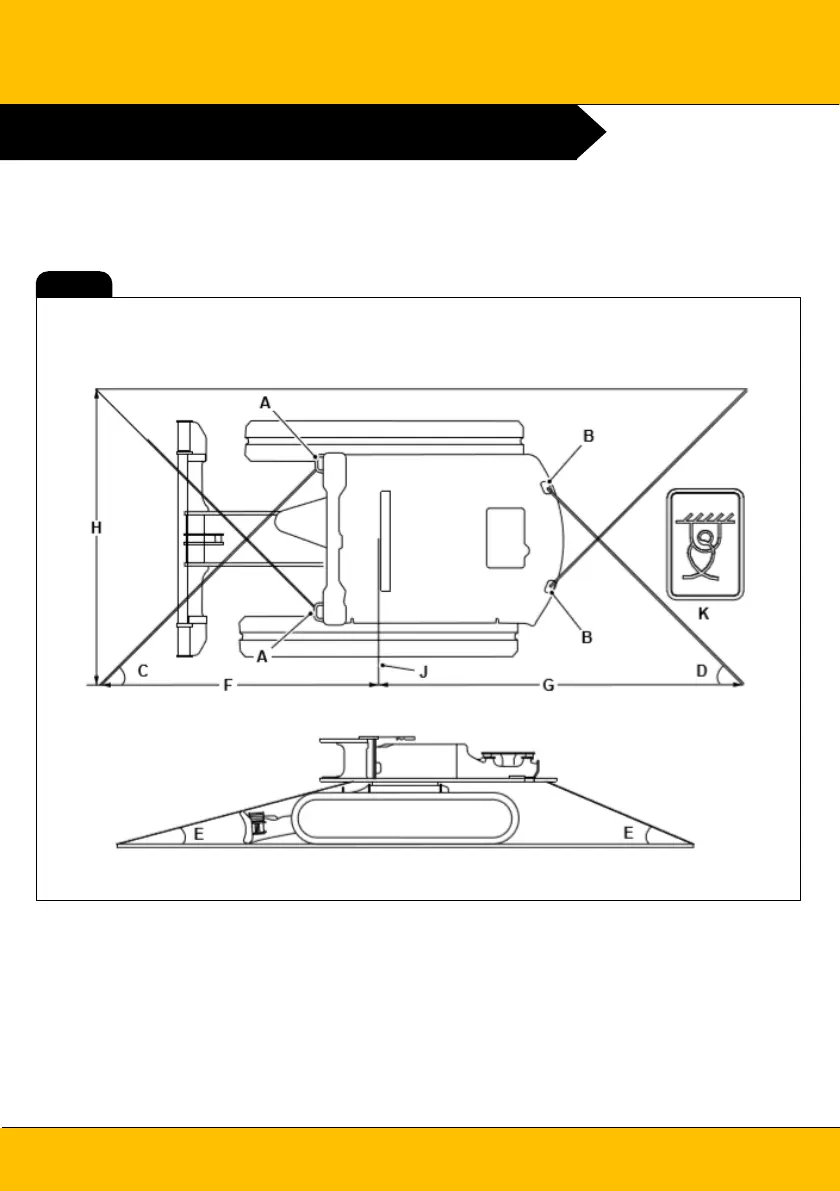

Method 3
A – Front slew spine tie-down point
C – Angle = 35° to 46°
E – Angle = 9° to 15°
G – Length = 2,282mm to 1,670mm
J – Slew ring centre line
B – Rear slew spine tie-down point
D – Angle = 35° to 45°
F – Length = 2,499mm to 1,846mm
H – Length = 2,500mm
K – Tie down decal
19C-1E
Fig. 5
10

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
