Please see operator manual for full details.
9

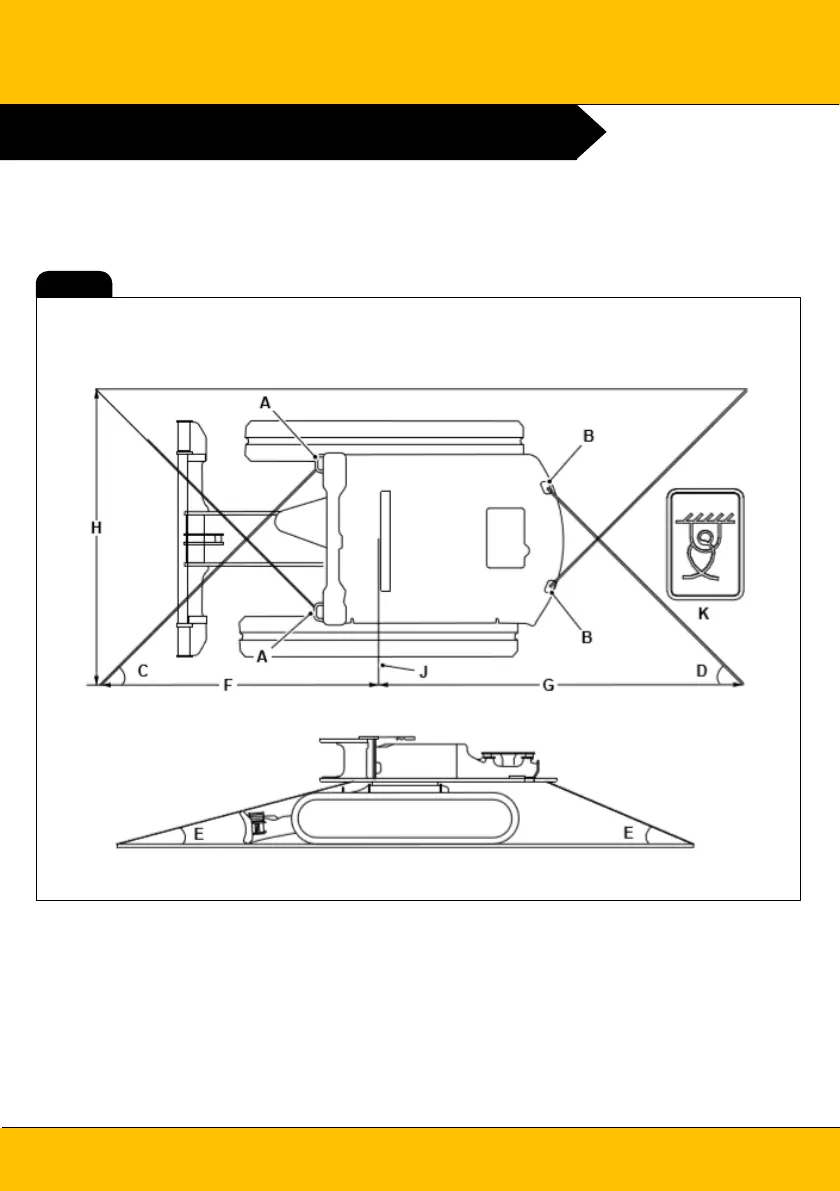

TIE DOWN POINTS
Method 2
A – Front slew spine tie-down point
C – Angle = 35° to 46°
E – Angle = 9° to 15°
G – Length = 2,720mm to 1,943mm
J – Slew ring centre line
B – Rear slew spine tie-down point
D – Angle = 45° to 50°
F – Length = 2,499mm to 1,846mm
H – Length = 2,500mm
K – Tie down decal
19C-1E
Fig. 4
