jcb 19C-1E Quick Reference Guide

Please see operator manual for full details.
1
2
3
4 5
Park the machine on firm level
ground. Position the
attachment (A) just above the
ground and dozer (B) on the
ground.
Park Machine Up
Disconnect Attachment
Stop the motor, remove any
connected hydraulic hoses
and remove the locking pin.
Insert tommy bar
Insert the tommy bar into
the hole of the latch hook.
Release Attachment Restart Machine
Apply downward pressure to
the tommy bar to release the
buckets rear pivot.
Start the motor, rest
attachment on the ground and
engage the hydraulics.
Standard Attachments

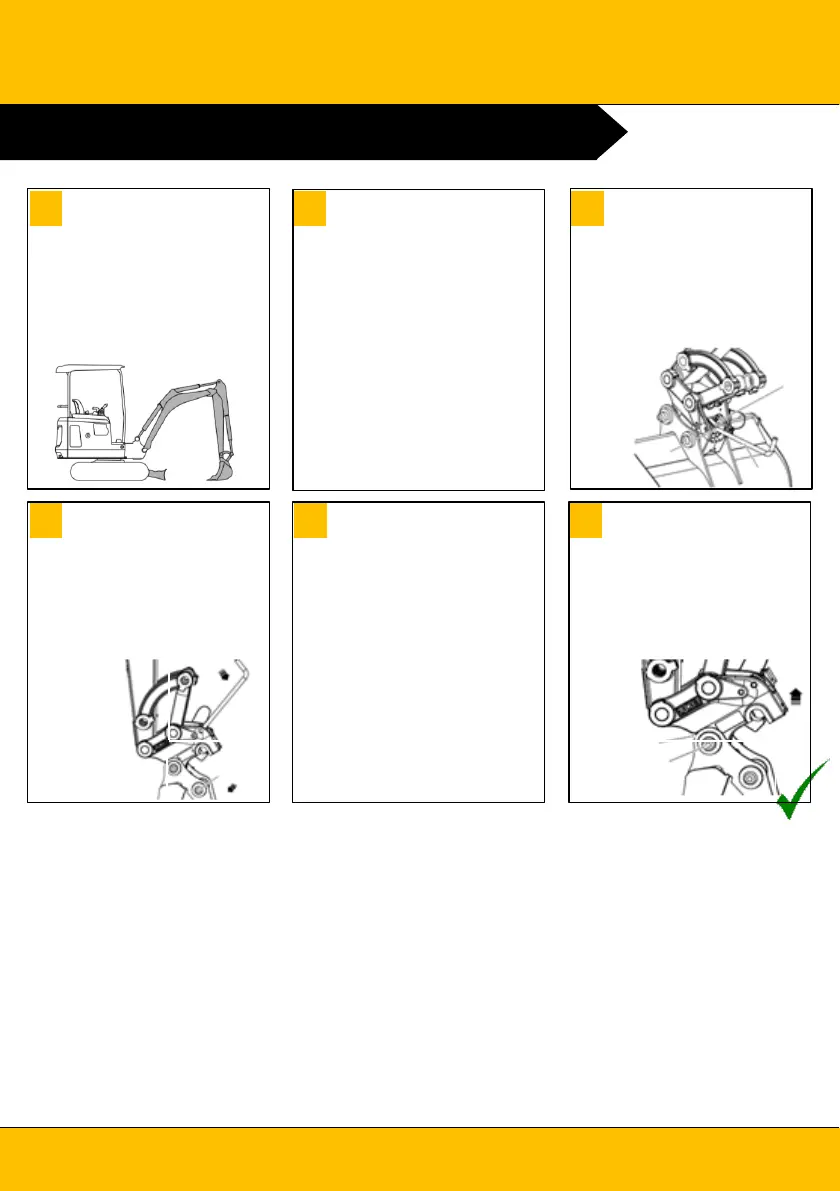

MECHANICAL HITCH UNLOCK SEQUENCE
19C-1E
18
A – Latch Hook C – Hole
B – Tommy Bar
6
Remove Attachment
Slowly roll the quickhitch in
the direction of the arrow
whilst raising the dipper to
release the front pivot (A).
A
A
B
C
A
A
B

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
