jcb 19C-1E Quick Reference Guide

A
B
Please see operator manual for full details.

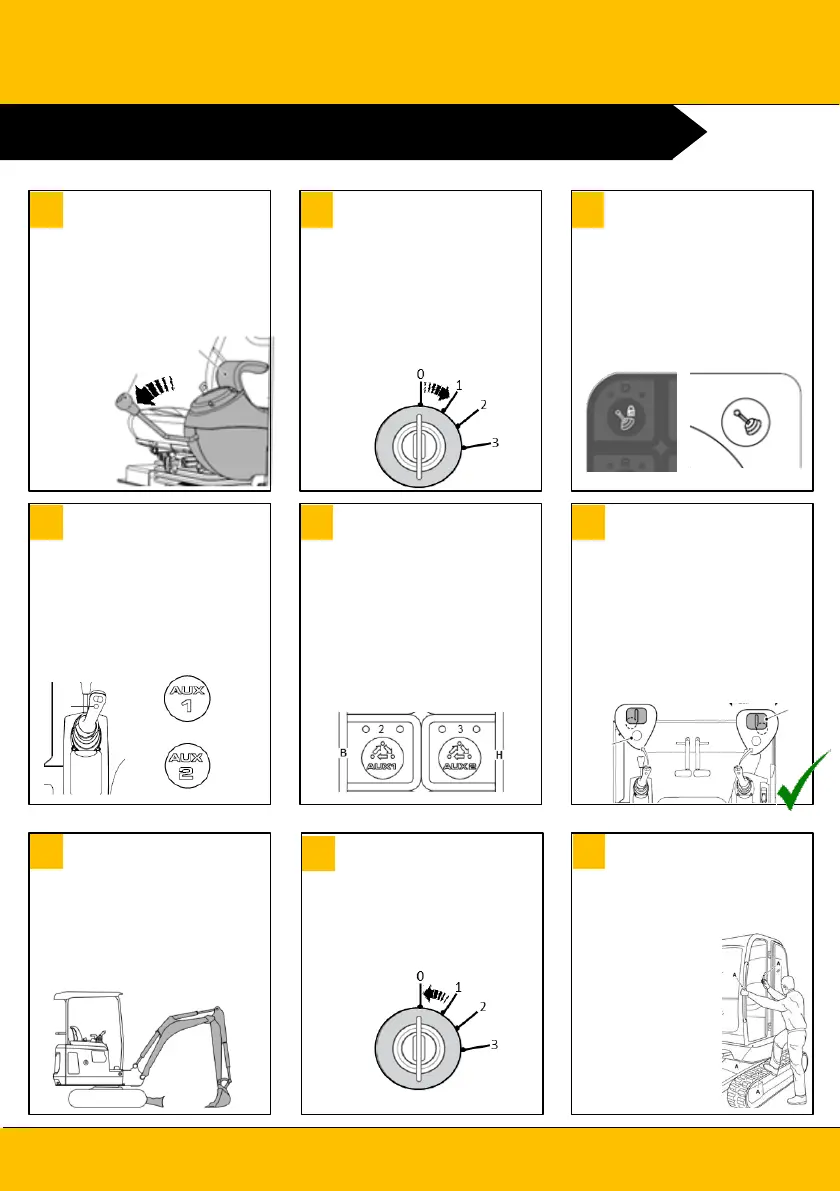

Shutdown Sequence
Auxiliary Venting (Within 1 Minute of Motor Shutdown)
1 2 3
4 5 6
While sitting in the operating
station with motor off lower
LH arm rest.
Lower LH Arm Rest Machine Power On
Turn ignition switch to
position 1 so that the
instrument panel and
switches become active
(enter immobiliser code if
requested).
Press 2 GO Button
Press 2 GO button (A) to
activate hydraulics.
Instrument panel will
illuminate (B) when active.
Select Aux Circuit Switching Circuits Venting Aux Circuit
Enable aux function on top
of the left control lever (A).
Ensure symbol (B) or (C) is
displayed.
Operate the roller switch
fully in both directions to
release stored pressure.
Right hand (A) for Aux 1 and
left hand (B) for Aux.
A – Handle
B – LH arm rest
1
2
3
Park Machine Up
Leave & Secure
Park machine on solid level
ground with the attachment
(A) and dozer (B) on the
ground.
Switch off all switches.
Leave machine using the
handrails and
footholds.
Close & lock all
doors and
windows to
secure machine.
SHUTDOWN & AUXILIARY VENTING
Change Aux mode between
Aux1 (A) and Aux 2 (B) using
mode select switch on the
right hand console.
19C-1E
A
B
A
B
C
A
B
A
B
B
A
19
Machine Power Off
Turn ignition switch to
position 0 and remove the
key.

jcb 19C-1E Specifications

General

Battery Type	Manganese laminated Lithium-ion
Battery Rated Capacity	14.8 kWh (3 Pack) 19.8 kWh (4 Pack)
Charging	On-board charger with direct connection from AC mains power supply
Charging Time	110V – 12 hrs 230V – 8 hrs
Fast Charging (Optional)	Off-board charger, with connection to 415V 3-Phase supply Charging time <2 hrs
System Voltage	48V
Motor Type	AC permanent magnet
Motor Power	7 kW continuous 20kW peak
Operating Modes	L – 1200rpm G – 1600rpm H – 1800rpm Auto Kick Up – 2300rpm, 2 speed tracking only
Thermal Limitations	Operation: -10oC to +46oC Charging: -10oC to +40oC
