5 - 2
Section C Electrics
9803/6410
Section C
5 - 2
Issue 2*
Pump Control

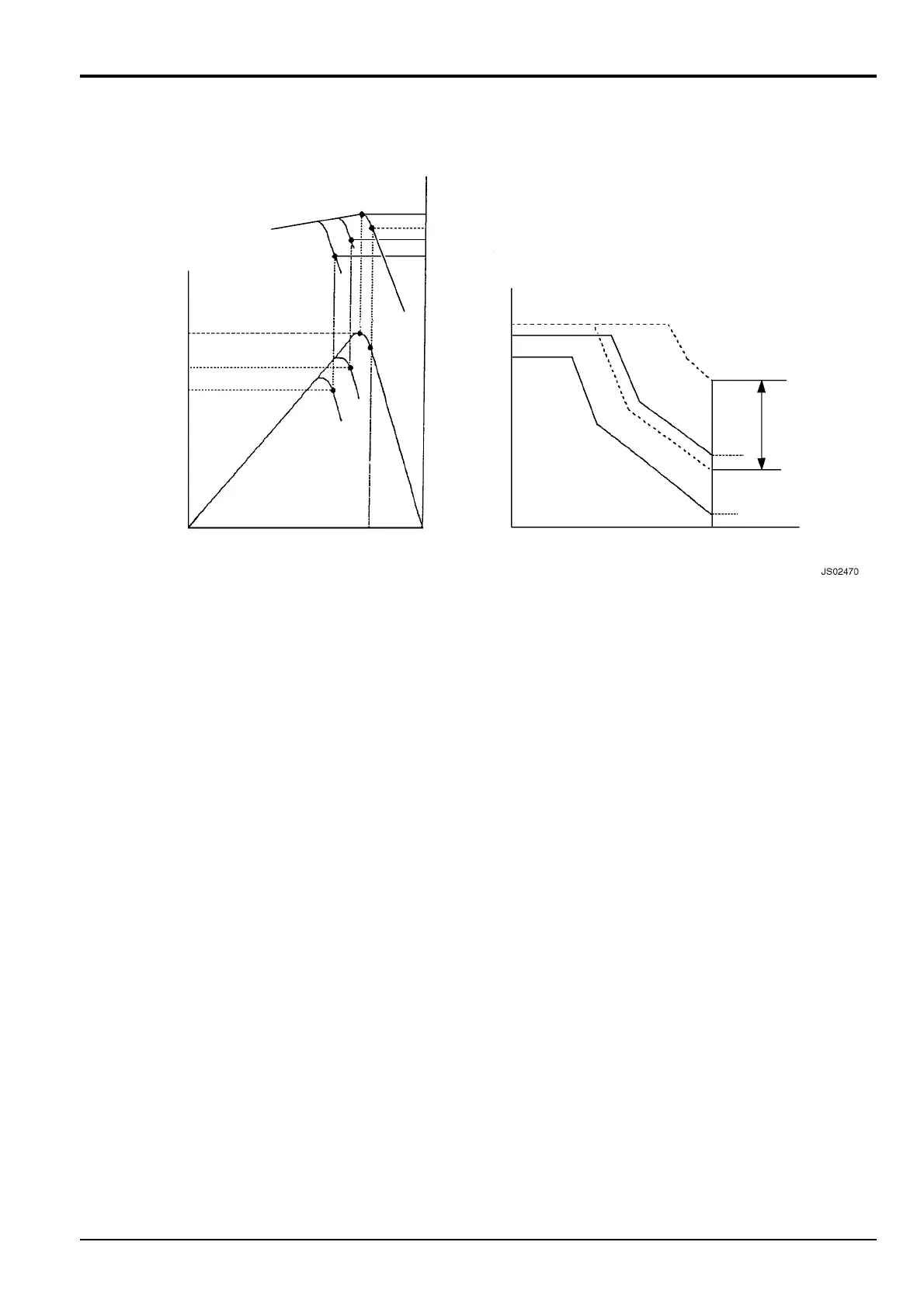

Schematic (continued)
S MODE: Pump torque equals 90% of engine target torque T, IS is the constant current value.
L MODE: Pump torque equals 70% of engine target torque T, IL is the constant current value. (Same as F mode).
If engine RPM is less than 1200rpm: the current is the same as L MODE irrespective of mode selection.
When L or F MODE are selected at the same time as travel (upper side pressure SW OFF, travel pressure SW ON) the current
is the same as S MODE providing engine speed is greater than 1200 rpm. (Purpose; travel smoothness).
Torque
T1
Ts= 0.9TT
TL=0.7TT
Horsepower
Horsepower
Pressure
IS
IL
N
H
N
I min
H
MODE
Revolution
Target
Flow
S
L
Electric current value
I max
(At H Mode max. revolutions)
To Next Page
