13 - 2

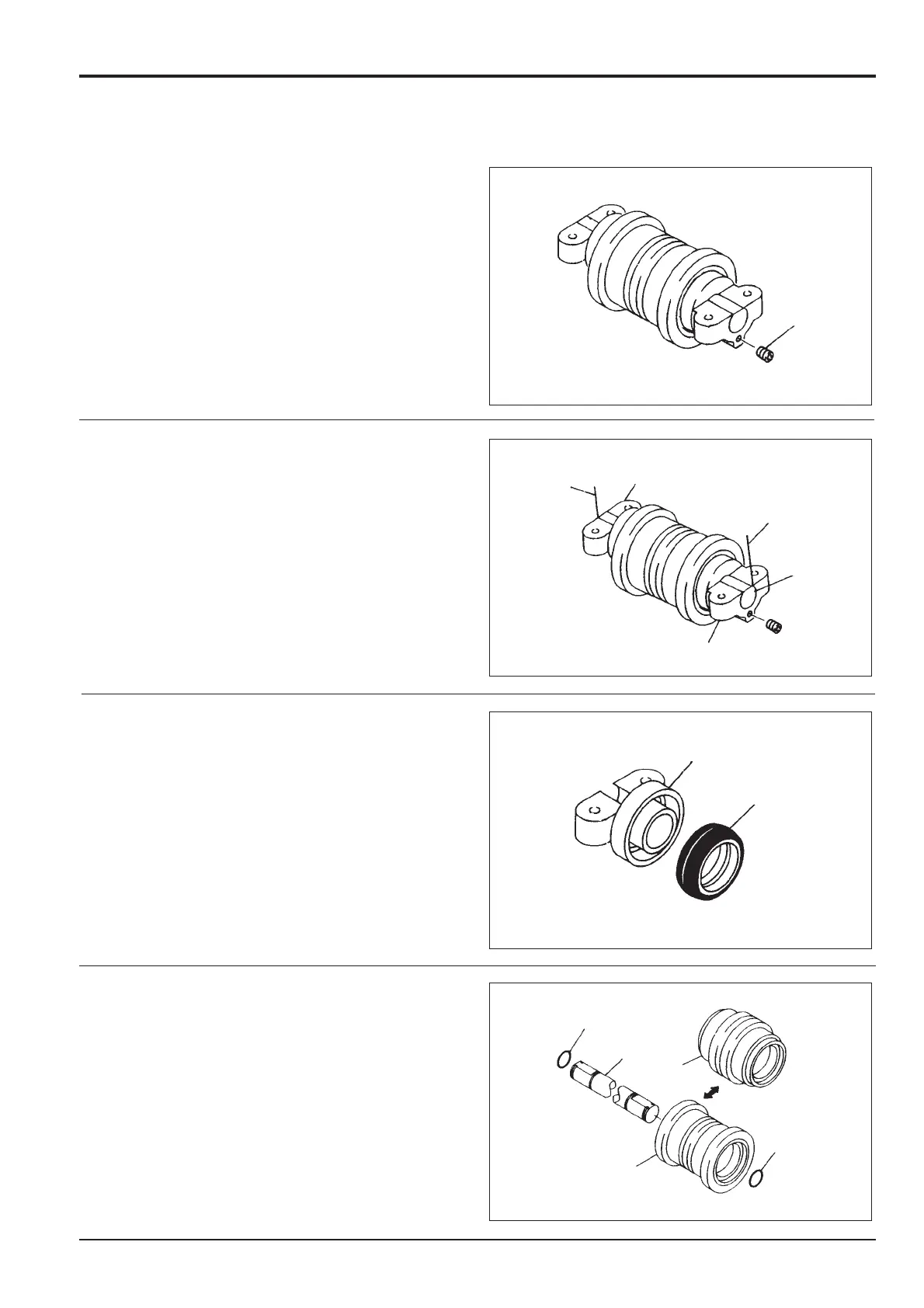

Dismantling
1 Clean the roller with a suitable solvent. Remove the
plug A and drain the oil.
2 Remove locking wire B from each end of shaft C.
Remove mounting brackets D and E from shaft C.
3 Using a pry bar, remove floating seals F from brackets
D and E and discard.
4 Remove and discard 'O'-rings G from shaft C. Pull out
shaft C from roller H or J.
Section J Track and Running Gear
9803/6410
Section J
13 - 2
Issue 1
Bottom Roller
A
B
E
B
C
A
D
D, E
F
G
C
J
H
G
