10 - 2

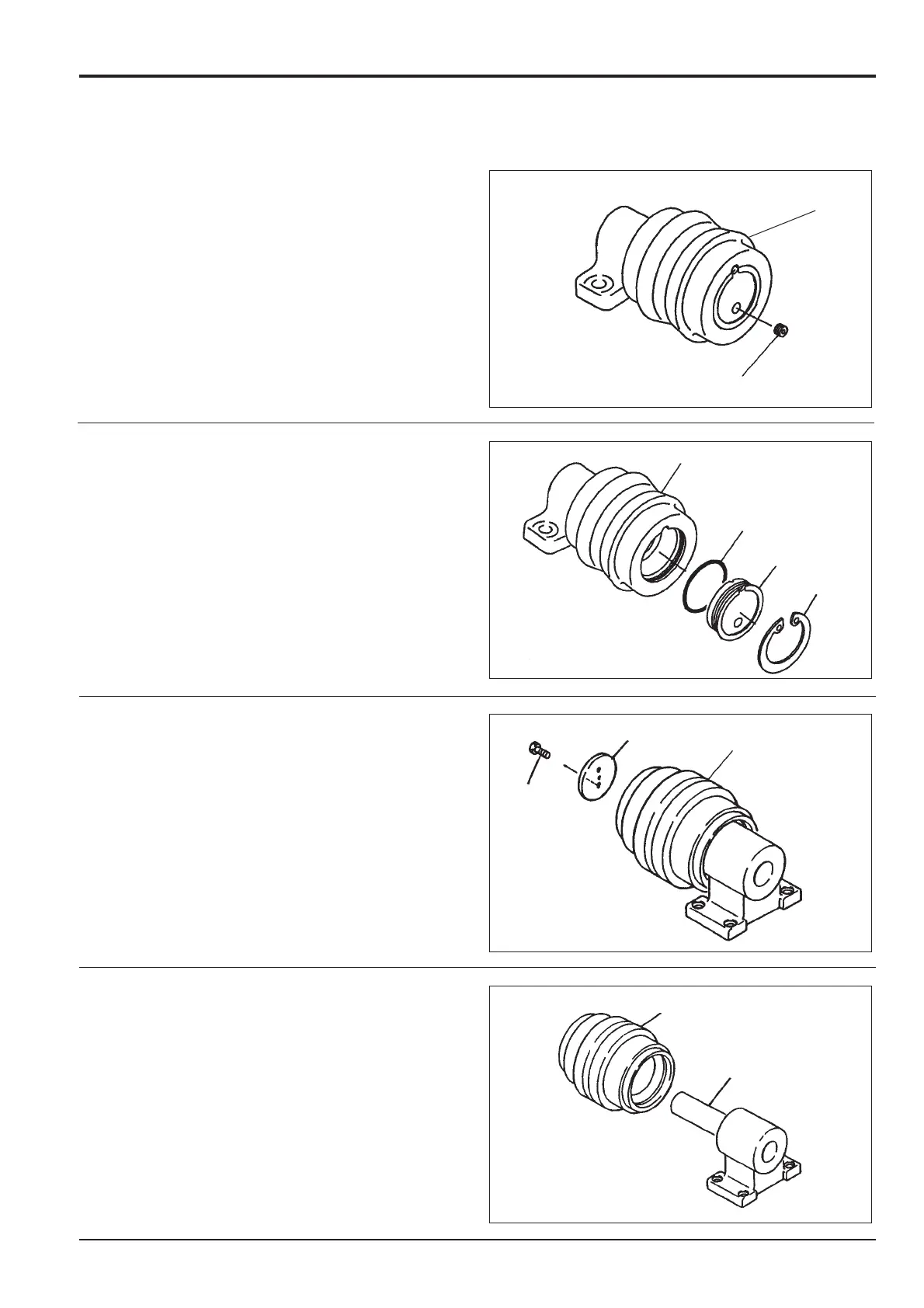

Dismantling
1 Clean the upper roller A with an appropriate detergent.
Remove the plug B from the cover and drain the oil.
2 Remove the circlip C, and remove cover D. From cover
D, remove 'O'-ring E and discard.
3 Remove bolt F, and the thrust plate G from the end of
the shaft.
4 Pull the upper roller A from the shaft H.
Section J Track and Running Gear
9803/6410
Section J
10 - 2
Issue 1
Top Roller
B
A
A
E
D
C
F
G
A
A
H
