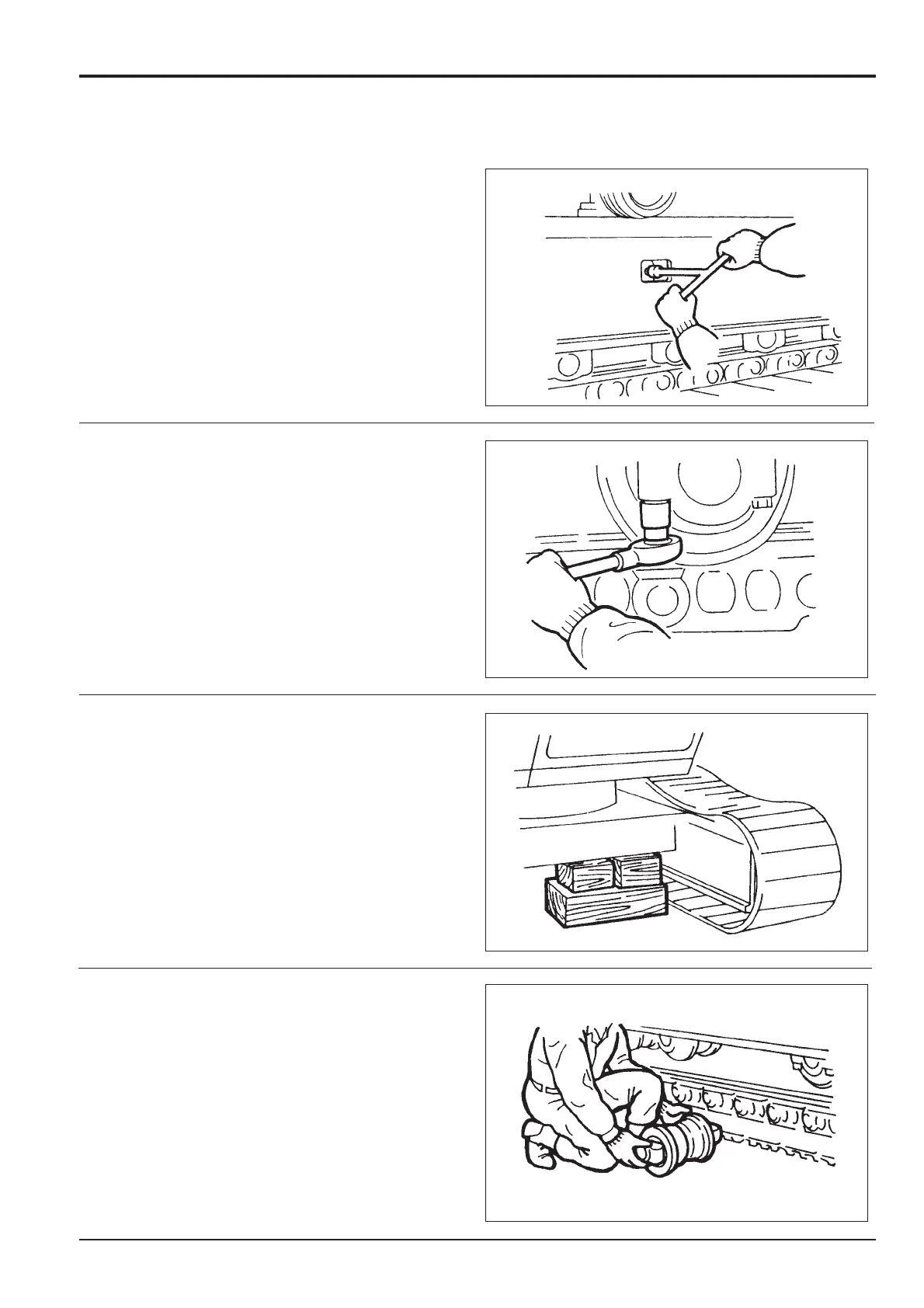

Removal
1 Slacken the check valve to bleed out grease.
!!
WARNING
When opening the check valve always stand to one side
and loosen a little at a time until grease starts to come
out. If you over-loosen too much, grease could spurt out
or the valve cover fly out and cause serious injury.
8-3-4-5
2 Remove the bolts securing the mounting brackets to
the side frame.
3 Lift the side of the undercarriage high enough to permit
bottom roller removal. Support with wooden blocks.
Tap the bottom roller with a copper mallet to separate it
from the side frame.
4 Remove the roller.
Section J Track and Running Gear
9803/6410
Section J
12 - 1
Issue 1
Bottom Roller
