46 - 2
Section E
Hydraulics
9803/6410
Section E
46 - 2
Issue 1

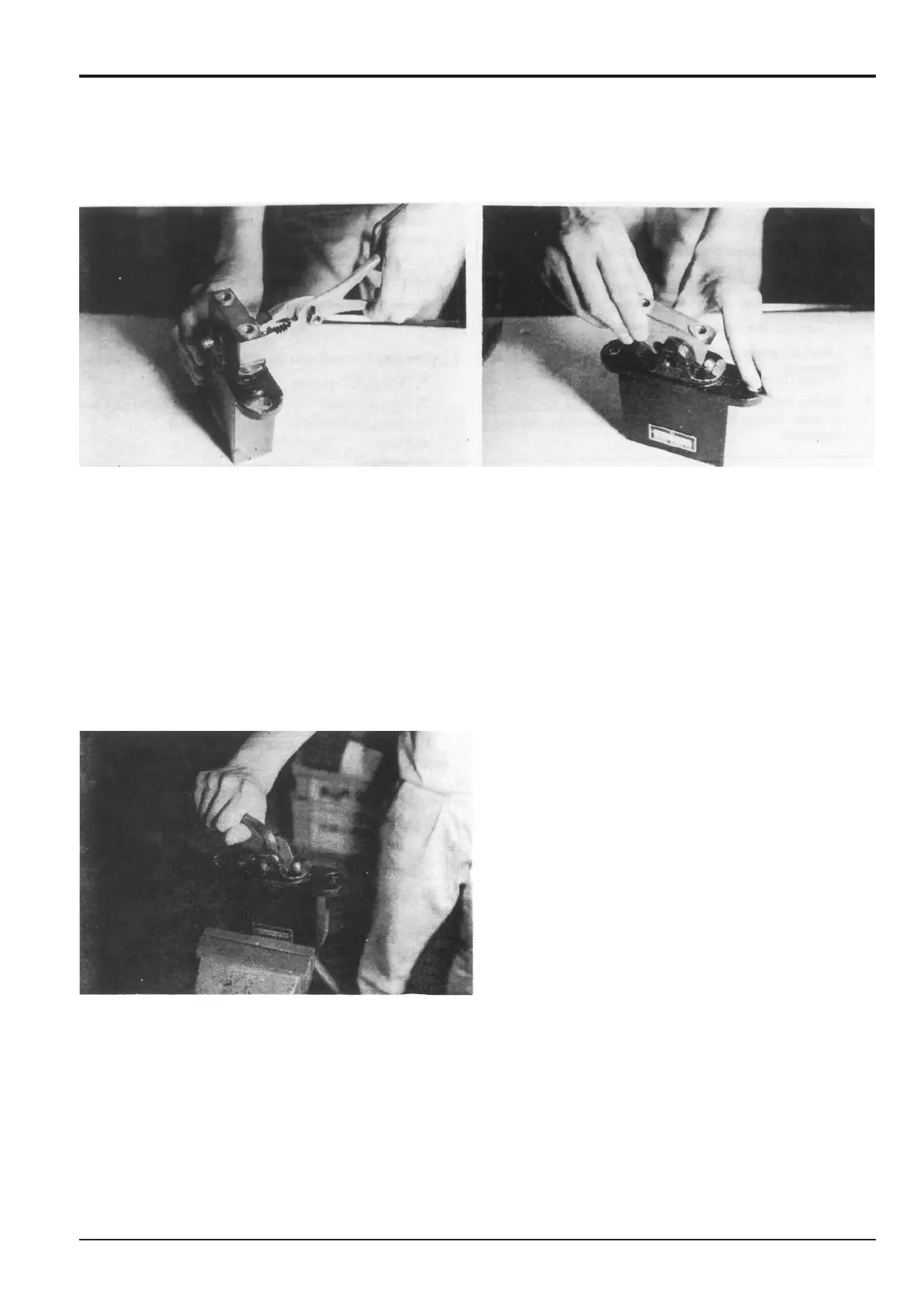

Remote Control V
alve (T
ravel)
3
Using pliers, withdraw pin
8
.
4
Take off cam
14
.
Dismantling and Assembly (cont’d)
Dismantling
5
Using soft metal pads for protection, clamp the valve
body into a vice. Remove socket head cap screw
17
.
Note:
Remove screw with care - spring pressure may lift the
cover
6
without warning.
6
Remove cover
6
and spring pins
22
. Remove ‘O’-ring
26
and discard.
327
