3 - 2
Section 3 Routine Maintenance
9803/6410
Section 3
3 - 2
Issue 1

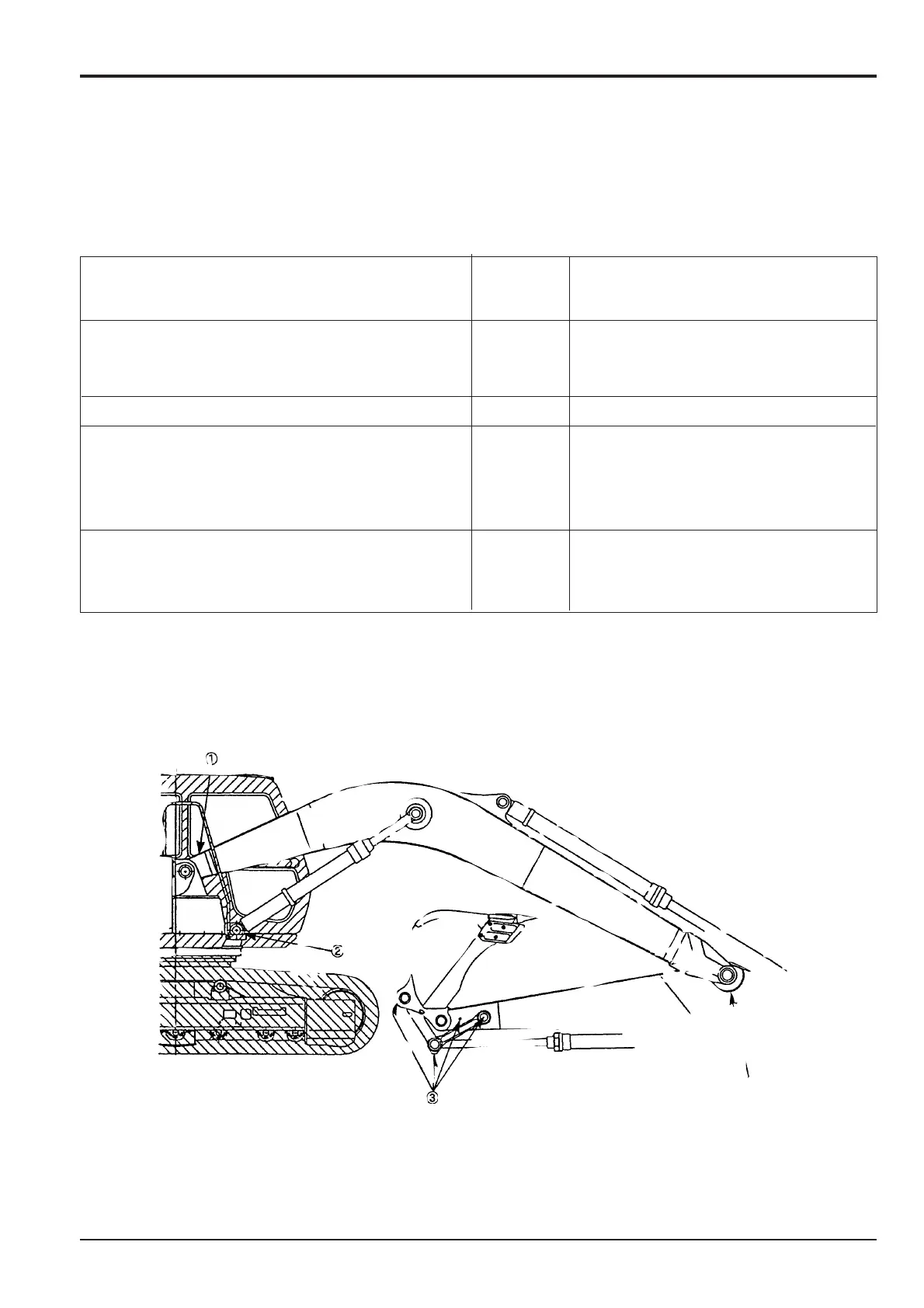

Greasing (continued)
Excavator End
16 Grease Points
!!
WARNING
You will be working close into the machine for these
jobs. Lower the attachments if possible. Remove the
starter key and disconnect the battery. This will prevent
the engine being started.
8-3-1-3
(No.)
Greasing Points Reference Number of greasing points
drawing
Boom 3.
Boom ram, eye end pin 1 2. Centralised greasing (total of 6 points)
Dipper ram, dump end pin 1.
Boom ram, dump end pin 2 2.
Bucket ram to Bucket linkage pin 2.
Bucket linkage to Bucket pin 3 1. (total of 5 points)
Dipper to Bucket Linkage pin 1.
Dipper to Bucket pin 1.
Bucket ram, dump end pin 1.
Dipper ram, eye end pin 4 1. (total of 3 points)
Boom to Dipper, connecting pin 1.
}
To Next Page
