jcb JS130 - Dismantling

3 - 1
Dismantling

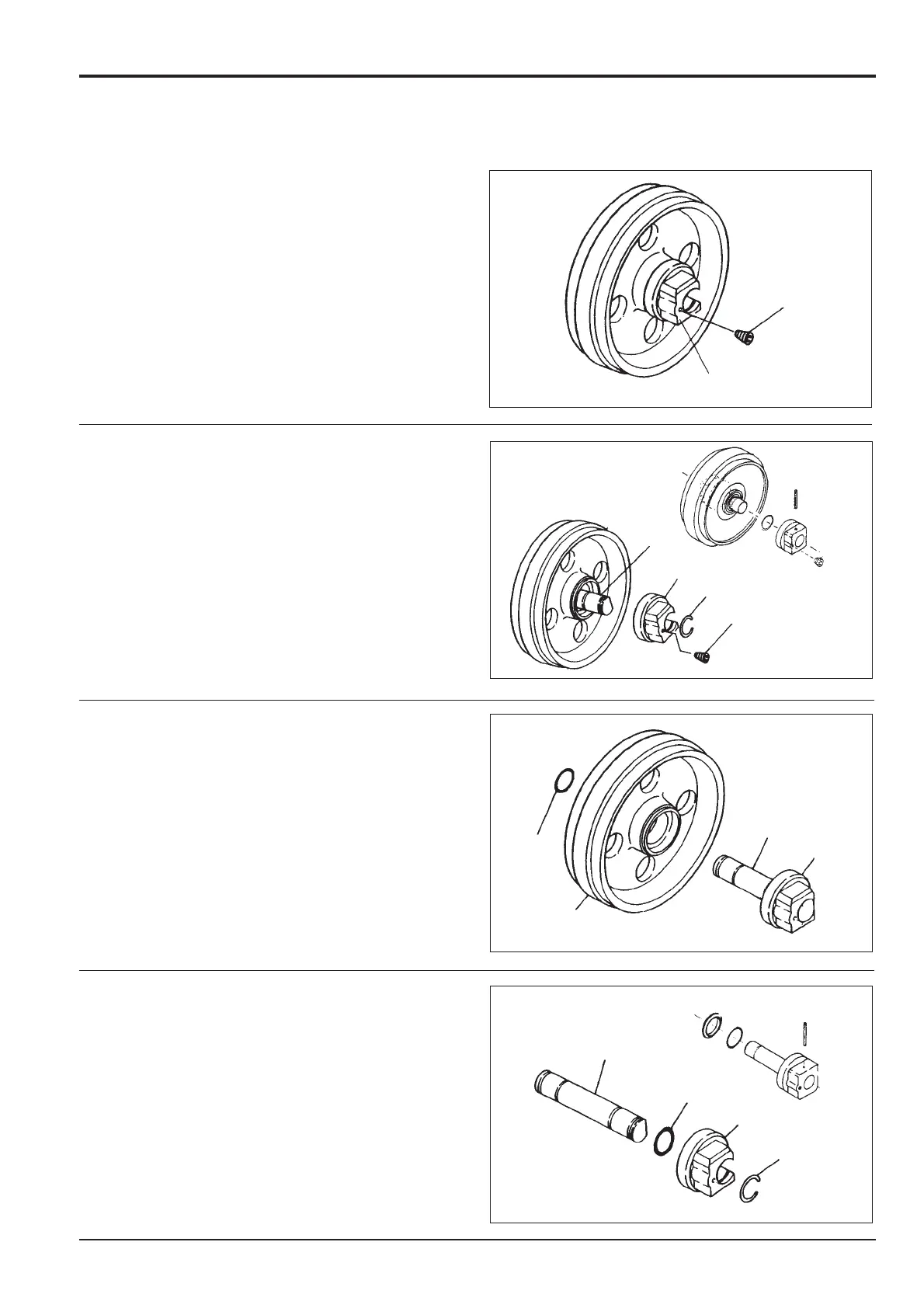

1 Carry out steps 1 to 4 of Idler Wheel and Recoil Unit,
Removal.
Clean the idler wheel with a suitable solvent. Remove
the plug A from hub B and drain the oil.
2 On one side of the unit only, remove the wire clip E or
roll pin F and separate the hub C from shaft D.
3 Remove 'O'-ring I from shaft D. Pull out the shaft D
from the idler wheel G.
4 Remove the wire clip E or roll pin F and separate hub C
from shaft D. Remove 'O'-ring I from shaft D.
Section J Track and Running Gear
9803/6410
Section J
3 - 1
Issue 1
Idler Wheel
A
B
D
C
E
H
F
I
G
D
C
D
I
F
C
E
