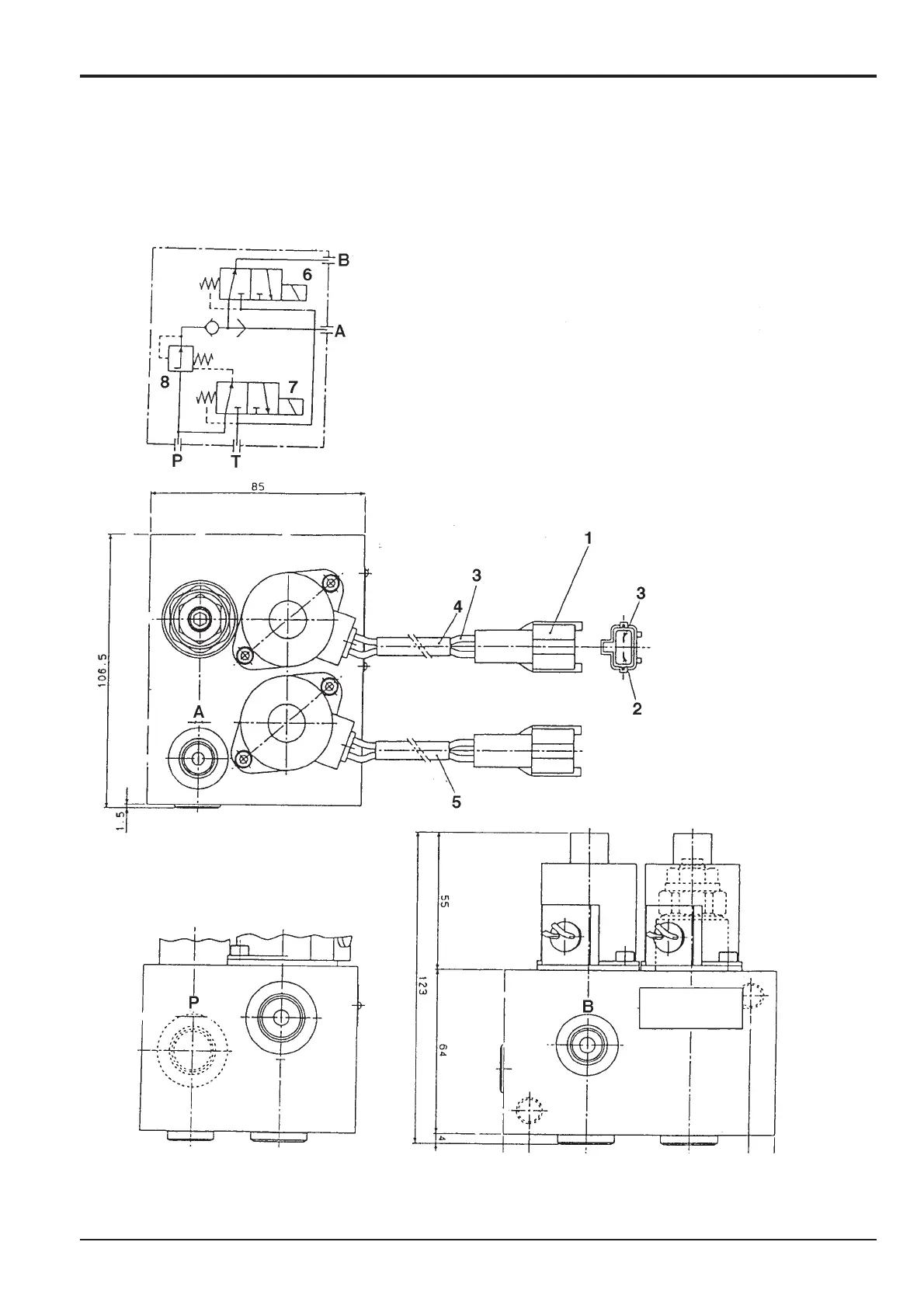

Slew Brake Valve
Technical Data (JS160)
Key
6 Solenoid control valve (slew lock)
7 Solenoid control valve (slew brake)
8 Pressure reducing valve
Key
1 Waterproof, 2 pin electrical contact housing
2 Power source
3 Ground
4 Protective tube (yellow)
5 Protective tube (black)
JS02090
