46 - 3
Section E Hydraulics
9803/6410
Section E
46 - 3
Issue 1
Remote Control Valve (Travel)

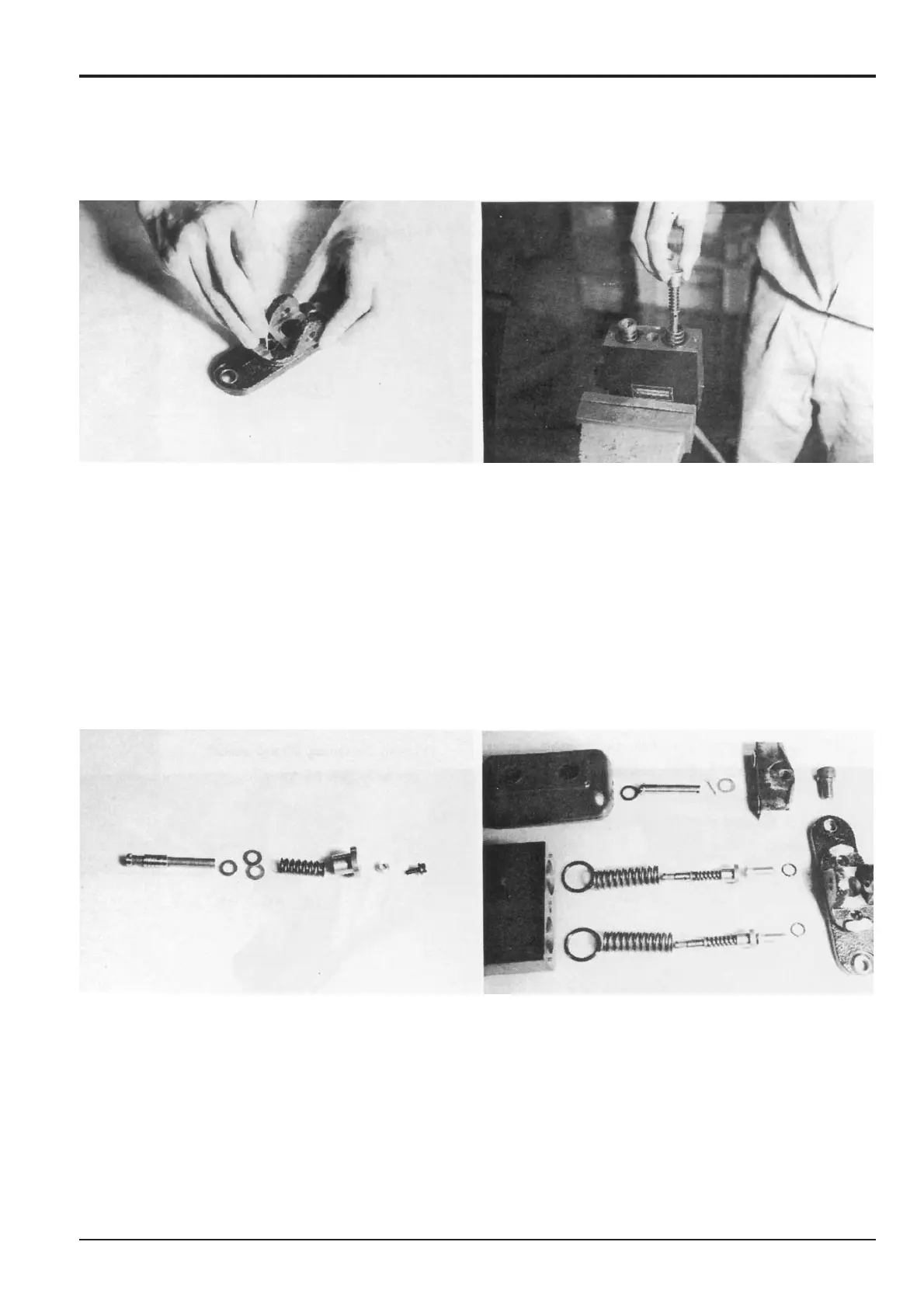

7 Remove plunger assembly 28 from cover 6. Remove
‘O’-ring 25 and discard.
Note: Avoid scratching surfaces when removing ‘O’-rings.
8 Withdraw spool assembly from valve body 3.
Note: Record spool locations to ensure correct reassembly.
Dismantling and Assembly (cont’d)
Dismantling (cont’d)
9 Note: The spool assembly is pre-adjusted with shim 15
and should not be dismantled unless necessary. If parts
are damaged or badly worn do the following:
Using soft metal pads, clamp spool 4 into a vice,
slacken and remove screw 18. Remove sleeve 5, shims
1, 2 and spring 11.
10 Dismantled parts.
