10 - 3
Dismantling (cont’d)

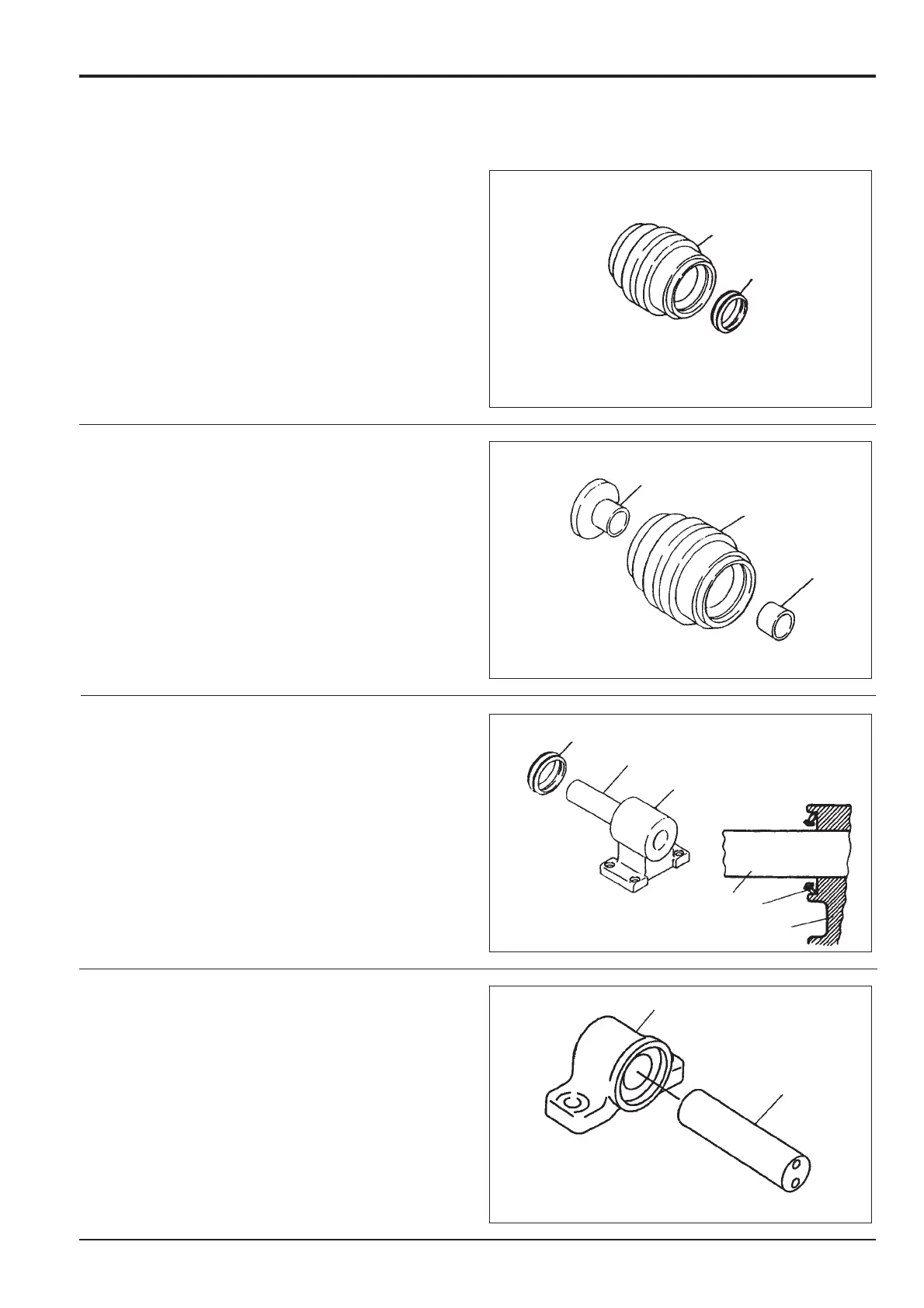

5 Remove the floating seal I from the upper roller A.
6 If badly worn or damaged, remove the bushes J and K,
from the roller A.
7 Remove floating seal I from bracket L using a pry bar.
Protect parts from moisture and dust if left dismantled
for some time.
Assembly
1 Clean all parts thoroughly in a suitable solvent. Dry
shaft and bore of roller using compressed air in a place
free of dust and moisture.
Check components for wear as detailed under (Wear
Limits). Polish out scratches and roughness using an
oil stone. Then apply a coat of engine oil to all parts.
If a new shaft or bracket are required, press-fit shaft H
into bracket L, taking care to protect the threads of the
tapped holes in the end of the shaft.
Section J Track and Running Gear
9803/6410
Section J
10 - 3
Issue 1
Top Roller
A
I
K
A
J
I
H
L
H
I
L
L
H
