jcb JS130 - Page 15

5 - 6
Section 1 General Information
9803/6410
Section 1
5 - 6
Issue 1
A Dia. 40 mm (1.57 in)
B Dia. 26 mm (1.02 in)
C 40 mm (1.47 in)
D 50 mm (1.97 in)
E Dia. 10 mm (0.39 in)
F 550 mm (21.7 in)
G 9 mm (0.35 in)
H 24 mm (0.94 in)
I Dia. 81 mm (3.91 in )
J Dia. 76 mm (2.99 in )
K 24 mm (0.94 in)
L 95 mm (3.74 in)
M Radius 0.7 mm (0.028 in)
N 120 mm (16.5 in)
O 4.0 mm (0.157 in)
P 3.0 mm (0.118 in)
Q 15°
O-ring G75
Service Tools (continued)
SECTION E - HYDRAULICS
Hydraulic Tank - JS130, JS160
+0
-0.1
+0
-0.004
+0
-0.1
+0
-0.004
JS07150
A
B
C
D
G
H
F
N
J
I
K
Q
O
P
L
M
E

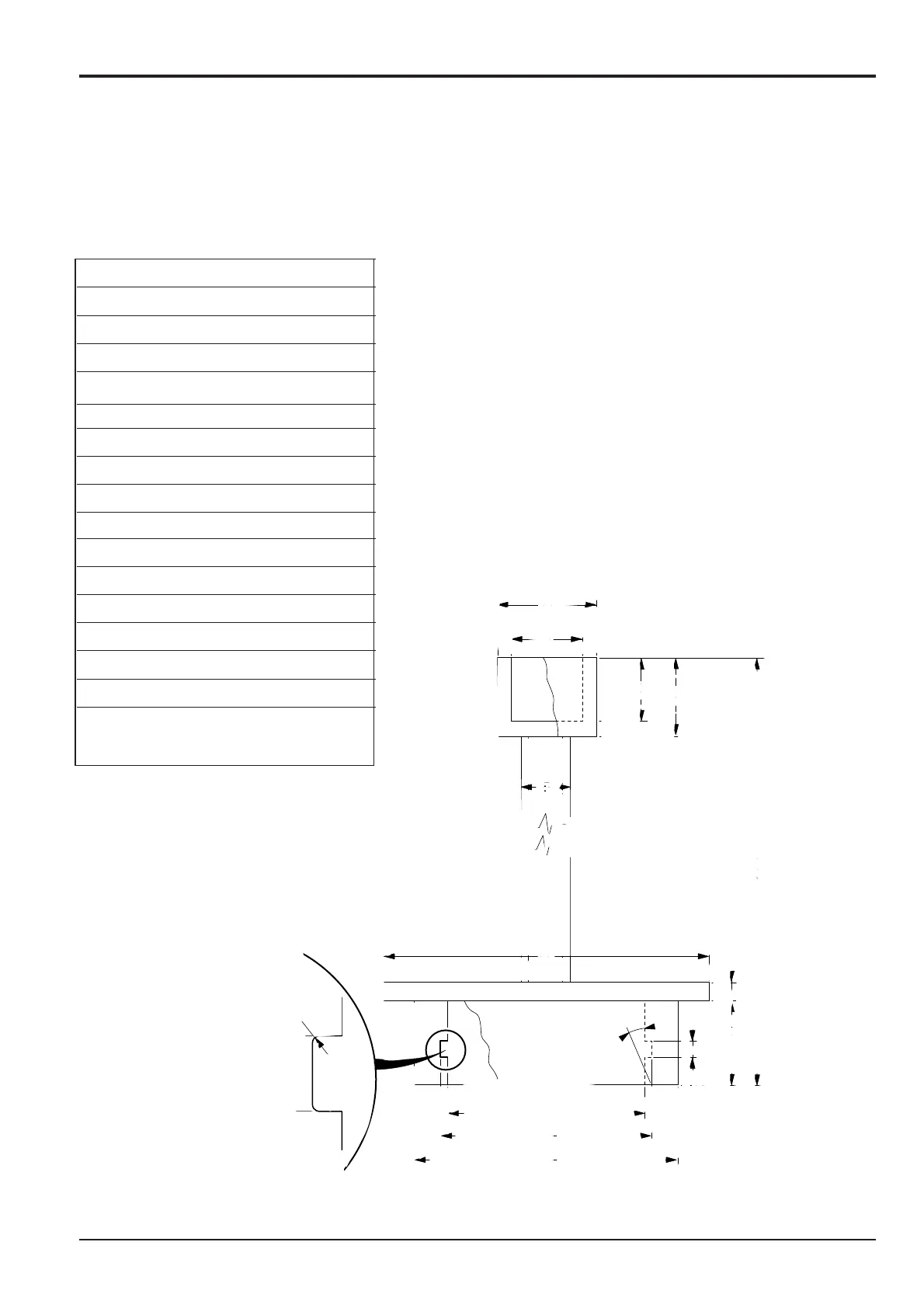

Blank for Suction Strainer
