jcb JS130 User Manual

5 - 27
Section C Electrics
9803/6410
Section C
5 - 27
Issue 1
Pump Control
Display Monitor (continued)
Fuel Remaining

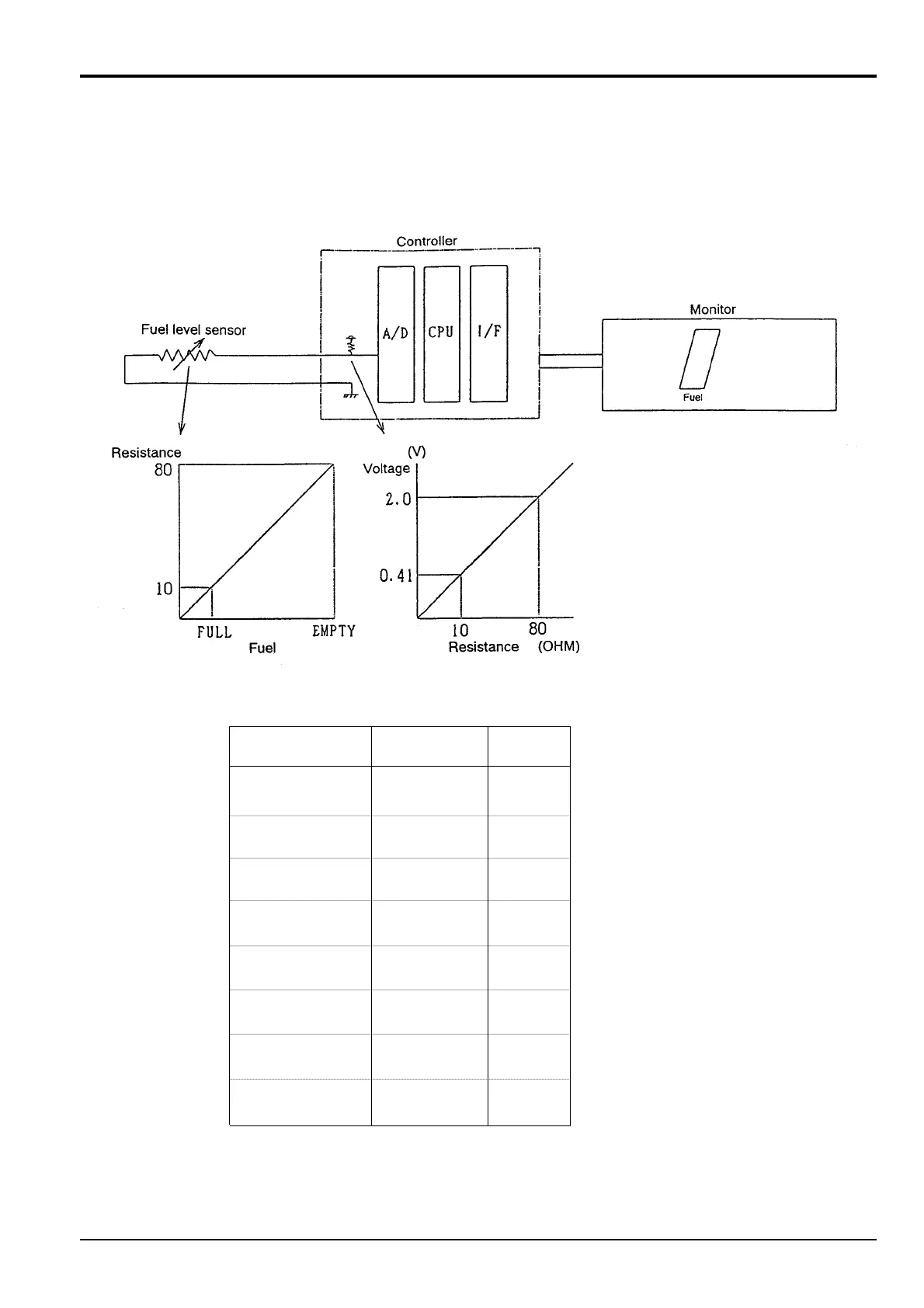

Circuit Diagram
FUEL REMAINING RESISTANCE
(litres) (OHM) MONITOR
284~ 13~10 8
243~284 21~13 7
200~243 27~21 6
158~200 34~27 5
115~158 44~34 4
72~115 59~44 3
39~72 78~59 2
39 80~78
1
(1 hour
left - Refuel)
