Hydraulic Pump/Regulator

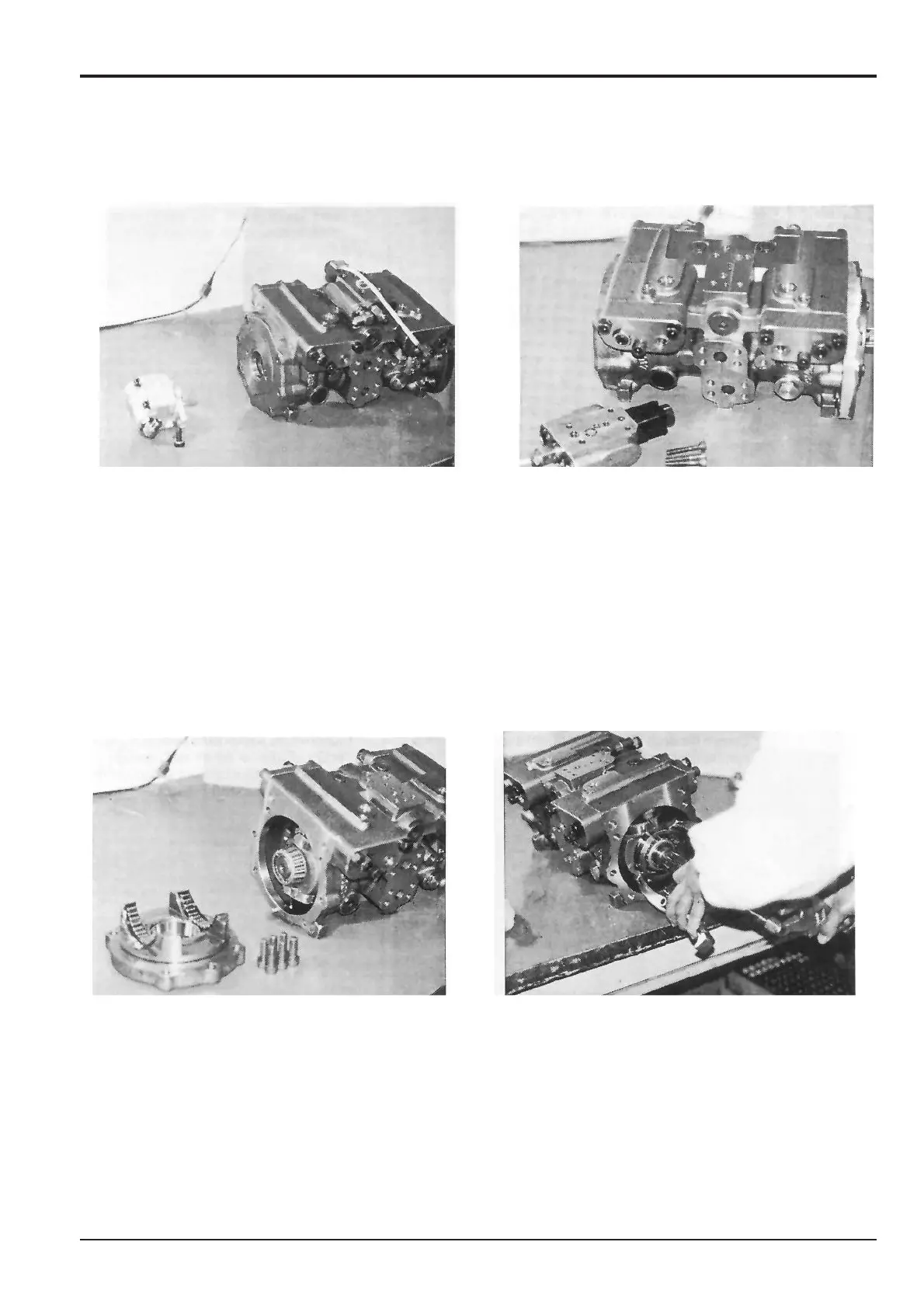

3 Unscrew the two bolts 77 and remove gear pump 57. 4 Unscrew the four socket head bolts 74. Remove sub-
block assembly 50 and put to one side.
Dismantling (cont’d)
5 Unscrew the six socket head bolts 73 and remove rear
cover 3. Then remove bearings 14 from the swash
plate.
Note: It may be necessary to lightly tap the rear cover with a
plastic hammer to assist removal.
6 Remove bearing 13 on the rear side, using the bearing
removal tool and the rear shaft protection tool (see
Service Tools, Section 1).
