14 - 11
Section E Hydraulics
9803/6410
Section E
14 - 11
Issue 1
Hydraulic Pump/Regulator

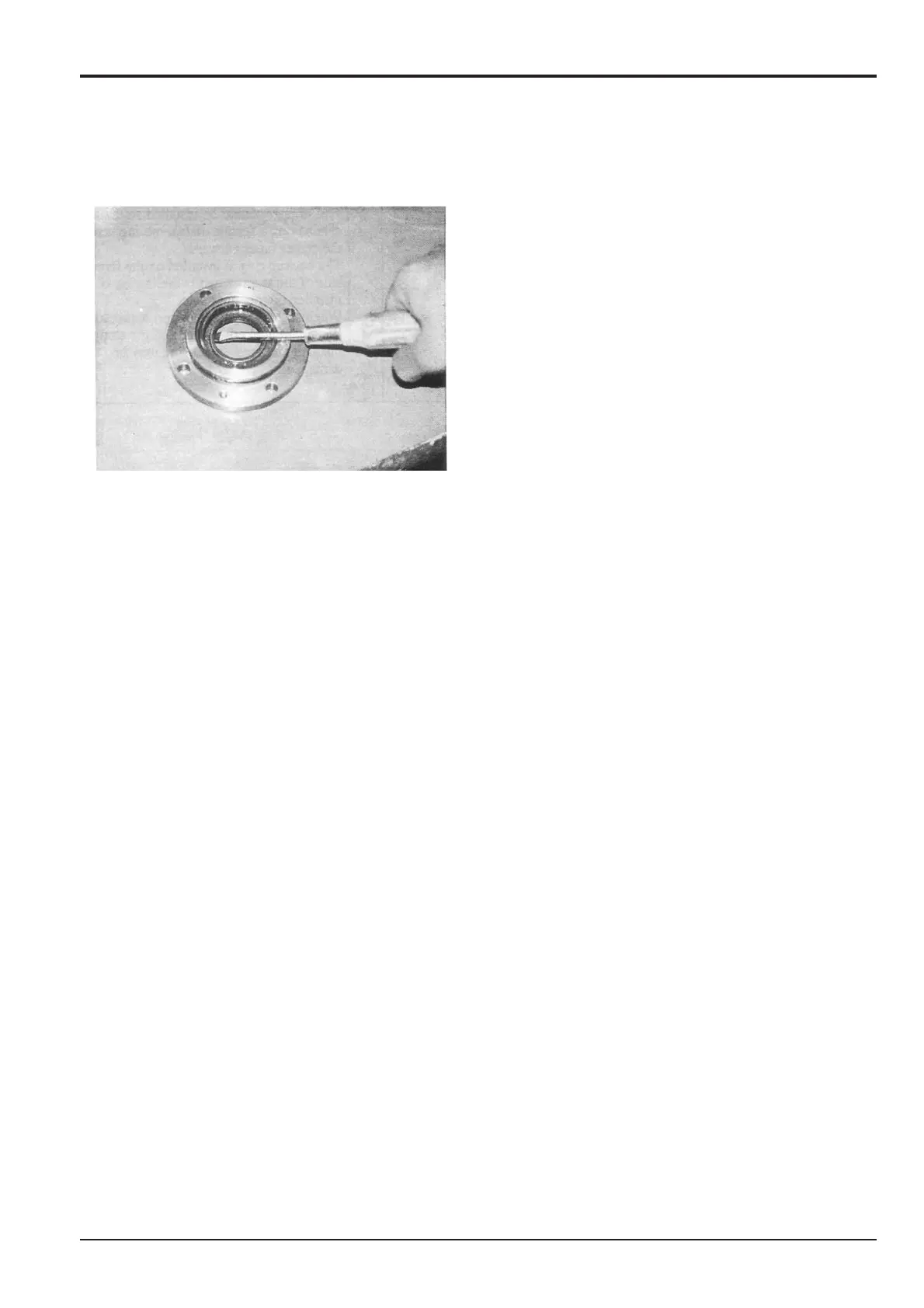

23 Using a screwdriver remove oil seal 15 from oil seal
case 16 and discard the seal.
Dismantling (cont’d)
