18 - 9
Hydraulic Pump (cont’d)
Dismantling and Assembly (cont’d)
Dismantling (cont’d)

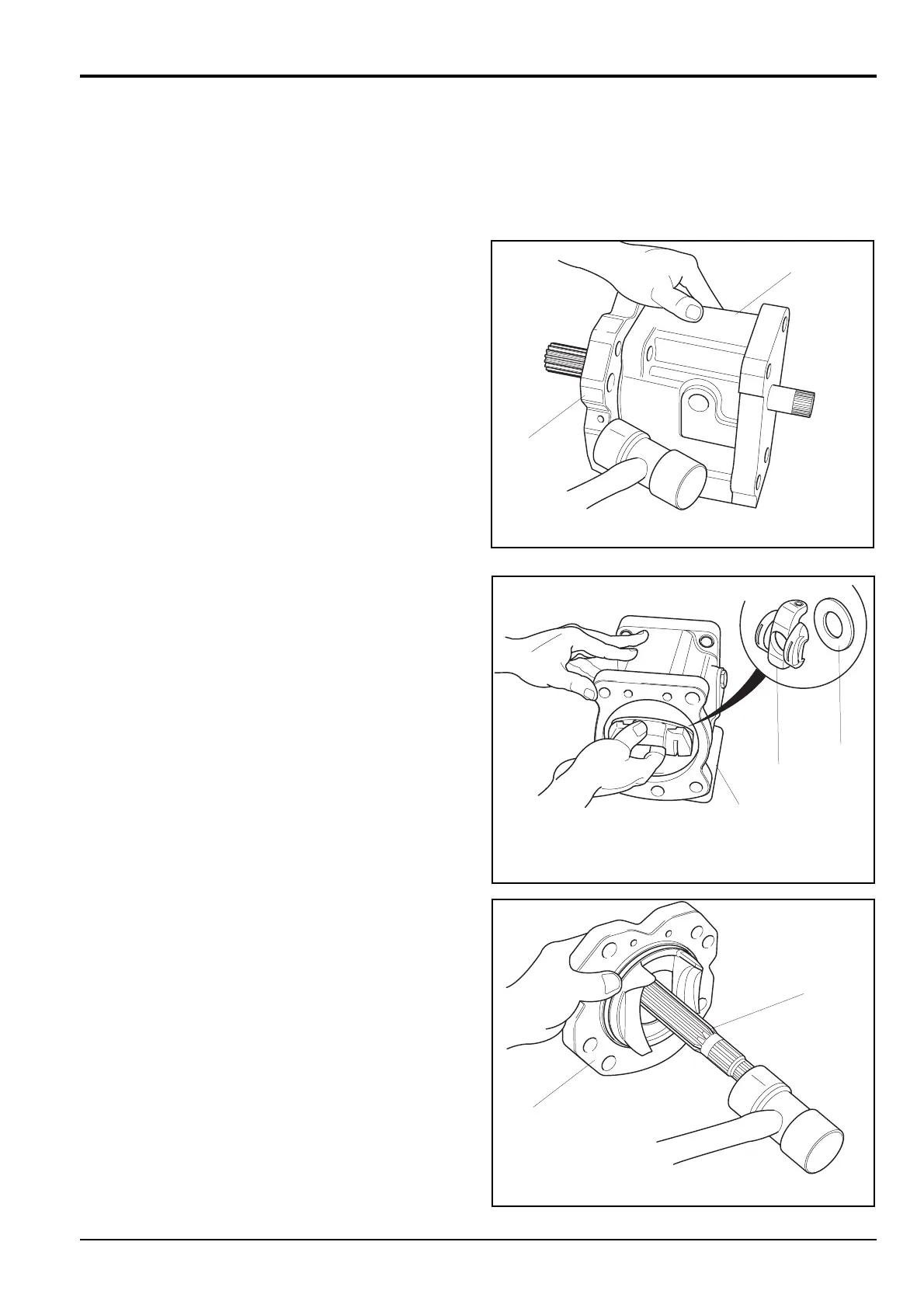

8 Match mark the mating flanges of swash plate support
18 and pump casing 5. Separate the swash plate
support complete with drive shaft from the pump casing
by lightly tapping the support around its flange using a
plastic hammer.
9 Remove shoe plate 19 and swash plate 20 from pump
casing 5.
10 Using a plastic hammer, gently tap shaft 21 out of
swash plate support 18, complete with its support
bearing 24 and spacers 23. If necessary remove the
circlip 22 and drive the shaft out of the bearing 24.
