18 - 20
Regulator (cont’d)
Dismantling and Assembly (cont’d)
Assembly (cont’d)

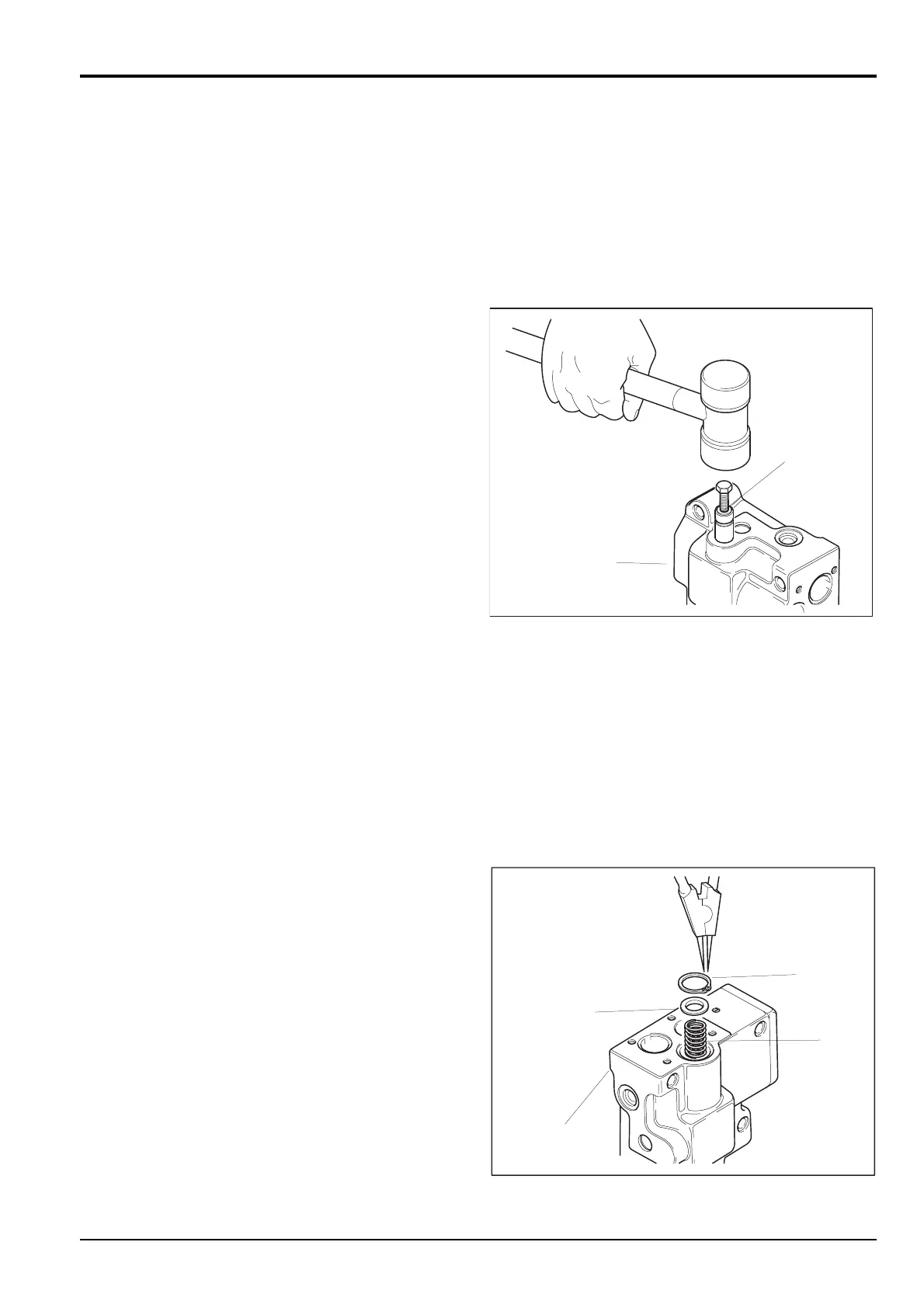

6 Locate pin 33A in lever 32 in the groove of pilot piston
38. Position lever 32 in regulator body 1.
7 Fit fulcrum plug 29 so that integral pin 33 locates with
lever 32. Fit a new seal 28A and install snap ring 28.
8 Insert adjusting plug 31. Fit a new seal 30A and install
snap ring 30.
Check that feedback lever 35 moves freely but does not
have excessive play.
9 Insert return spring 25 and spring seat 24 into hole A of
regulator body 1. Compress the spring and secure with
snap ring 23.
Section E Hydraulics
9803/6410
Section E
18 - 20
Issue 1
Hydraulic Pump/Regulator JS130, JS160
