jcb JS130 User Manual

40 - 2
Section E Hydraulics
9803/6410
Section E
40 - 2
Issue 1

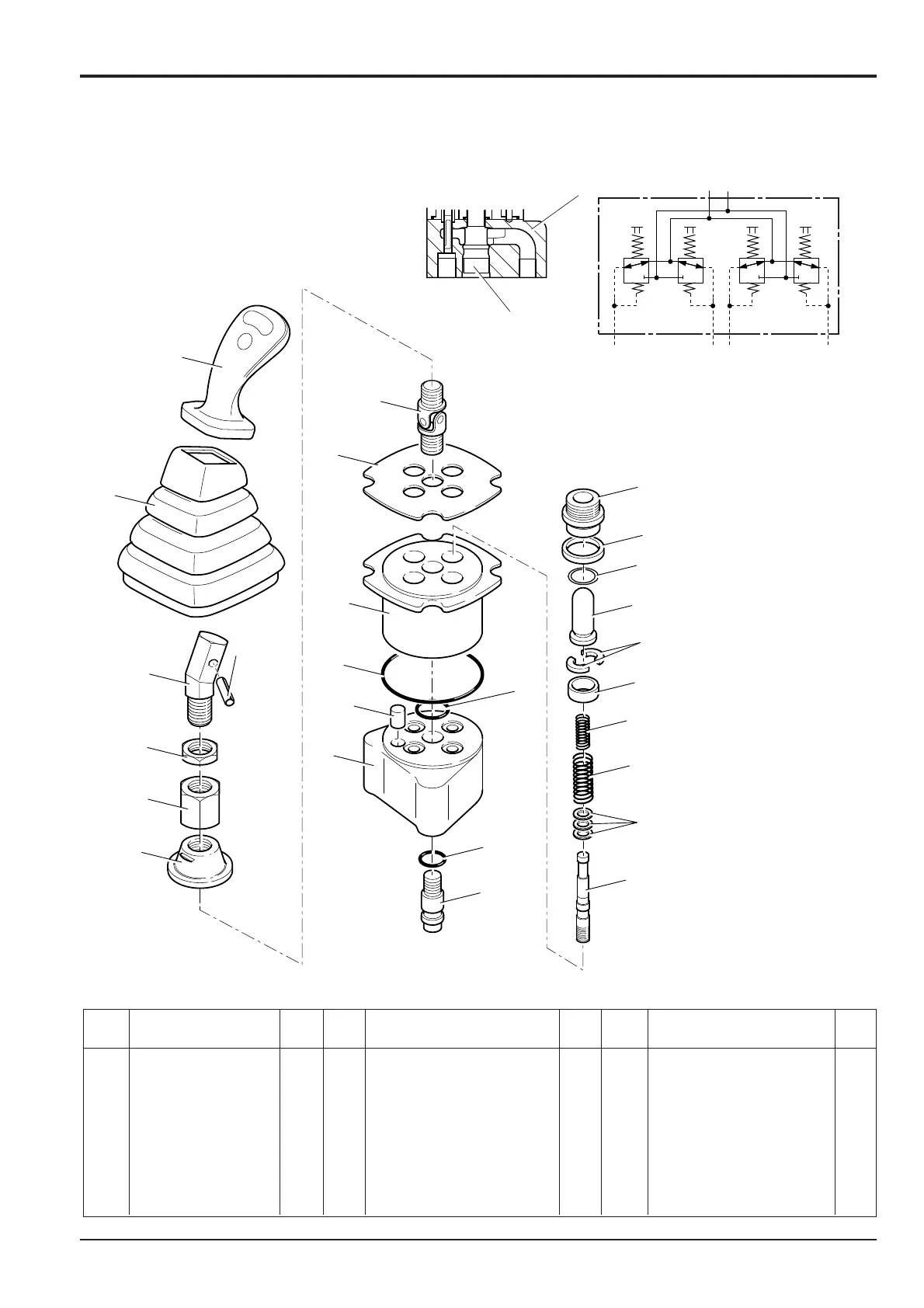

Remote Control Valve (Services)
Technical Data
Item Description Qty. Item Description Qty. Item Description Qty.
1 Lower body 1 10 Seal 4 19 Gaiter 1
2 Upper body 1 11 Plunger 4 20 Roll pin 1
3 ‘O’-ring 1 12 Split washer 4 21 Control handle 1
4 ‘O’-ring 1 13 Spring seat 4 22 Locknut 1
5 Dowel pin 2 14 Compression spring 4 23 Mounting knuckle 1
6 Body assembly screw 1 15 Return spring 4 24 Joint nut 1
7 ‘O’-ring 1 16 Shims - 25 Rocker plate 1
8 Plunger guide 4 17 Spool 4 26 Knuckle joint 1
9 Seal 4 18 Retaining plate 1
19
20
23
22
24
25
26
18
2
3
4
5
1
7
6
17
16
15
14
13
12
11
10
9
8
JS03210
21
1 23
4
TP
JS03240
1
6,7
P
P
