45 - 2
T
echnical Data
Section E
Hydraulics
9803/6410
Section E
45 - 2
Issue 1

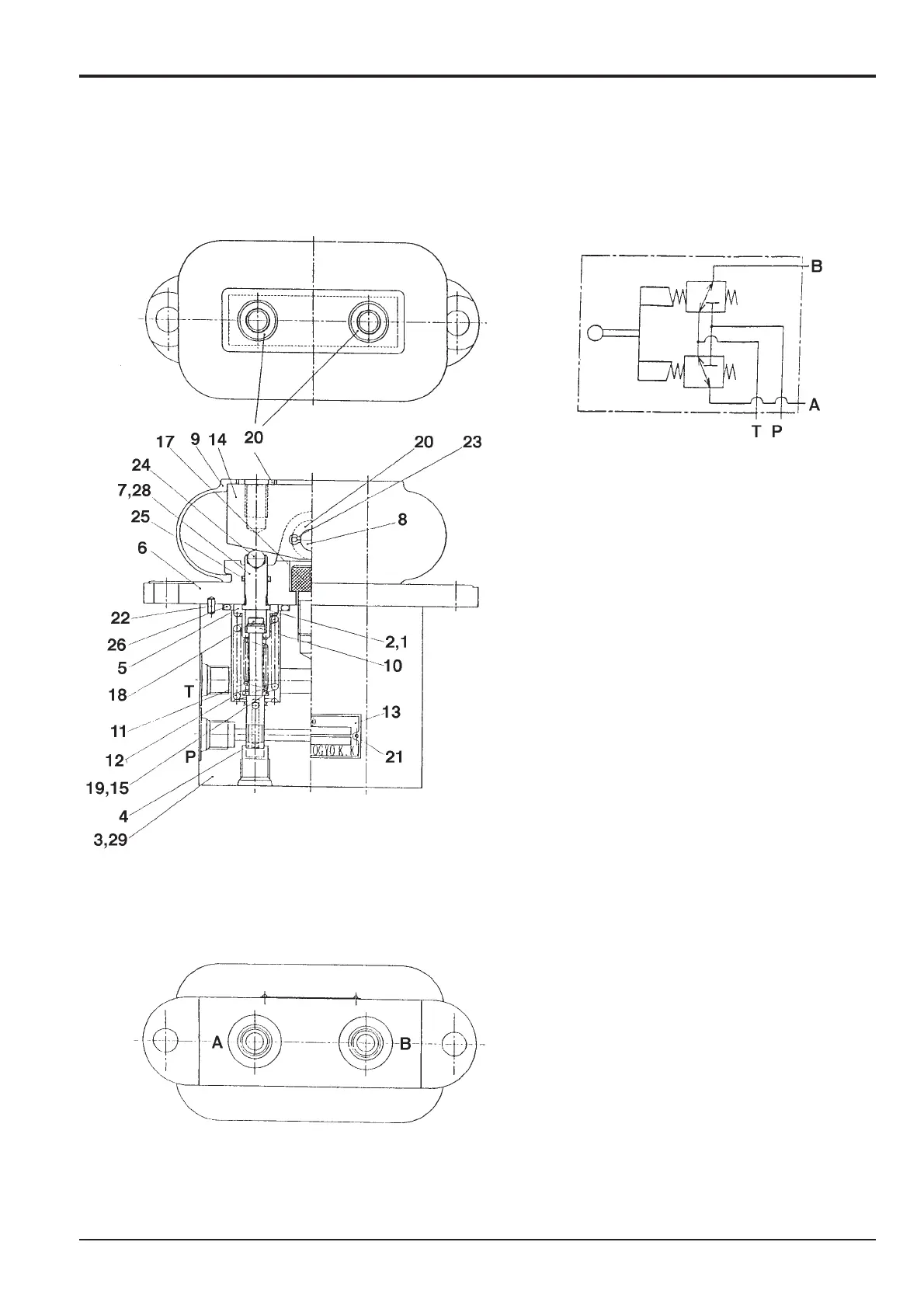

Remote Control V
alve (T
ravel)
JS10850
Key
Item
Part
1
Shim (0.004 in)
2
Shim (0.008 in)
3
Body
4
Spool
5
Sleeve
6
Cover
7
Plunger
8
Pin
9
Boot
10
Collar
11
Compression spring
12
Compression spring
13
Name plate
14
Cam
15
Shim
17
Socket head cap screw
18
Flange screw
19
Plain washer
20
Plain washer
21
Rivet screw
22
Spring pin
23
Split pin
24
Steel ball
25
‘O’-ring
26
‘O’-ring
28
Plunger assembly
29
Body assembly
325
327
